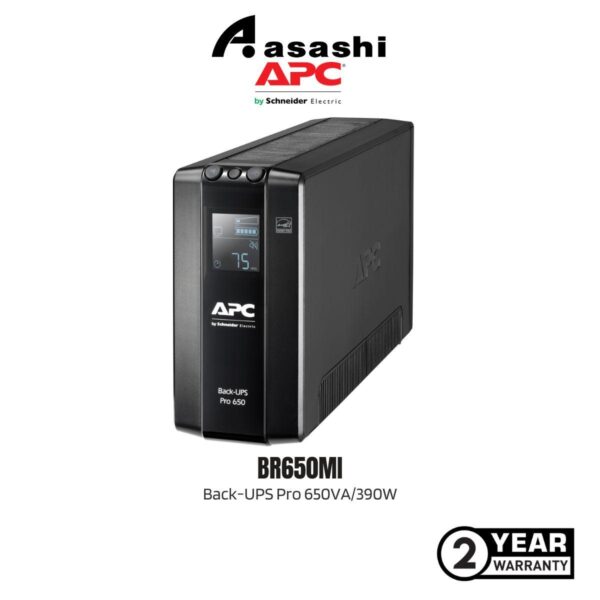

APC BR650MI Back-UPS Pro 650VA/390W Tower UPS


Description

This APC Back-UPS Pro offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 650VA tower UPS has 6 total outlets, 3 of which are battery back up and surge protection, and 3 that are surge protection only. Its runtime at 100 Watts is 25 minutes. Its dimensions are 19 x 9.1 x 31 cm and 6.4 kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics. This UPS has a 2-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications & Details

Main

Run Time for Load: 2 min 44 s (390 W load)
Load Range: 39–390 W
Maximum Capacity Used: 100%
Main Input Voltage: 230 V AC, 1 Phase
Input Connection: IEC 60320 C13
Maximum Input Current: 10 A
Switching Current Capacity: 10 A
Input Voltage Range (Full Load): 176–294 V
Input Frequency: 50/60 Hz ±3 Hz (Auto-Sensing)
Output Voltage: 230 V AC, 1 Phase
Rated Power: 390 W
Rated Power: 650 VA
Maximum Configurable Power: 390 W / 650 VA
Output Connection: 6 × IEC 60320 C13
USB Power Supply: None
Transfer Time: 10 ms (Typical), 12 ms (Maximum)
UPS Topology: Line Interactive
Waveform Type: Stepped Approximation to a Sinewave
Output Frequency: 50/60 Hz ±1 Hz (Synchronized to Mains)
Replacement Battery: APCRBC110

Graphs

Run Time: View Runtime Graph
Efficiency: View Efficiency Graph

Complementary

Battery Capacity: 7.0 Ah
Battery Type: Internal Sealed Lead-Acid
Control Panel: Multifunction LCD Status and Control Console
Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
UPS Connectivity: USB Port
Noise Filtering: Full-time multi-pole noise filtering, 10% of IEEE surge let-through, zero clamping response time (instantaneous)
Height: 190 mm
Width: 91 mm
Depth: 310 mm
Product Weight: 6.4 kg
Mounting Preference: No Preference
Mounting Mode: Tower (Not Rack-Mountable)
Two Post Mountable: 0
USB Compatible: Yes
Power Module Filled Slots: 0
Power Module Free Slots: 0
Redundant: No
Product Range: Back-UPS Pro
Product Type: Uninterruptible Power Supply (UPS)

Environmental Specifications

Product Certification: A-Tick, C-Tick, CE, EAC, RCM, TISI

Marking: GS Mark

Standards:
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Operating Temperature: 0°C to 40°C
Storage Temperature: -15°C to 45°C
Operating Altitude: 0–10,000 ft
Storage Altitude: 0–15,240 m
Operating Humidity: 0–95%
Storage Humidity: 0–95%
Acoustic Level: 45 dBA
Heat Dissipation: 13.3 Btu/h

Battery & Runtime

Battery Type: Lead-Acid Battery
Battery Voltage: 12 V
Extendable Runtime: No
Included Battery Module: 0
Empty Battery Slot: 0
Typical Recharge Time: 12 Hours
RBC Quantity: 1
Battery Life: 3–5 Years
Battery Charging Power: 6 W (Rated)

Packaging

Package Type: PCE
Units per Package: 1
Package Height: 25.5 cm
Package Width: 14.3 cm
Package Length: 44 cm
Package Weight: 7.4 kg

Warranty

Warranty: 24 Months
