Description

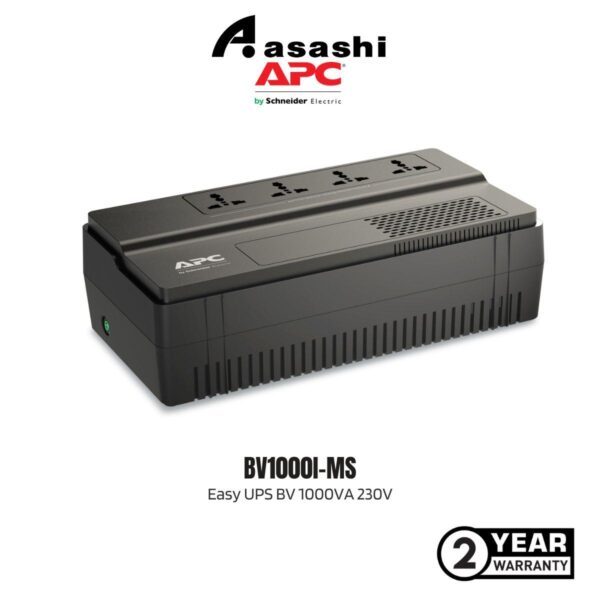

This APC Easy UPS provides power protection for unstable power conditions in homes and small offices, ensuring consistent and reliable connectivity at the most critical moments. The 1000VA floor/wall mount UPS has 4 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 156 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification.

Specifications & Details

Main

Run Time for Load: 600 W
Load Range: 60–600 W
Maximum Capacity Used: 100%
Main Input Voltage: 230 V AC, 1 Phase
Input Connection: NEMA 5-15P
Input Voltage Range (Full Load): 170–280 V
Input Frequency: 50/60 Hz ±5 Hz (Auto-Sensing)
Output Voltage: 230 V AC, 1 Phase
Rated Power: 600 W
Rated Power: 1000 VA
Maximum Configurable Power: 600 W / 1000 VA
Output Connection: 4 Universal Outlets
USB Power Supply: None
Transfer Time: 6 ms (Typical), 10 ms (Maximum)
UPS Topology: Line Interactive
Waveform Type: Stepped Approximation to a Sinewave
Output Frequency: 50/60 Hz ±1 Hz (Unsynchronised)

Graphs

Run Time: View Runtime Graph
Efficiency: View Efficiency Graph

Complementary

Battery Capacity: 9.0 Ah
Battery Type: Internal Sealed Lead-Acid
Control Panel: LED Status Display (On Line / On Battery)
Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
Surge Energy Rating: 156 J
Cable Length: 1.20 m
Number of Cables: 1
Color: Black
Height: 92.5 mm
Width: 160.5 mm
Depth: 305 mm
Product Weight: 5.7 kg
Mounting Preference: No Preference
Mounting Mode: Wall Mount Compact (Not Rack-Mountable)
Two Post Mountable: 0
USB Compatible: No
Provided Equipment: User Manual
Power Module Filled Slots: 0
Power Module Free Slots: 0
Redundant: No
Product Range: Easy UPS
Product Type: Uninterruptible Power Supply (UPS)

Environmental Specifications

Product Certification: CE

Standards:
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 50°C
Operating Altitude: 0–6667 ft
Storage Altitude: 0–15240 m
IP Protection: IP20
Operating Humidity: 0–90%
Storage Humidity: 0–90%
Acoustic Level: 40 dBA

Battery & Runtime

Battery Type: Lead-Acid Battery
Battery Voltage: 12 V
Extendable Runtime: No
Included Battery Module: 0
Empty Battery Slot: 0
Typical Recharge Time: 8 Hours
Battery Life: 3–5 Years

Packaging

Package Type: PCE
Units per Package: 1
Package Height: 23.7 cm
Package Width: 37.3 cm
Package Length: 14.3 cm
Package Weight: 6 kg
SCC14: 10731304338250

Warranty

Warranty: 24 Months
