Product Overview

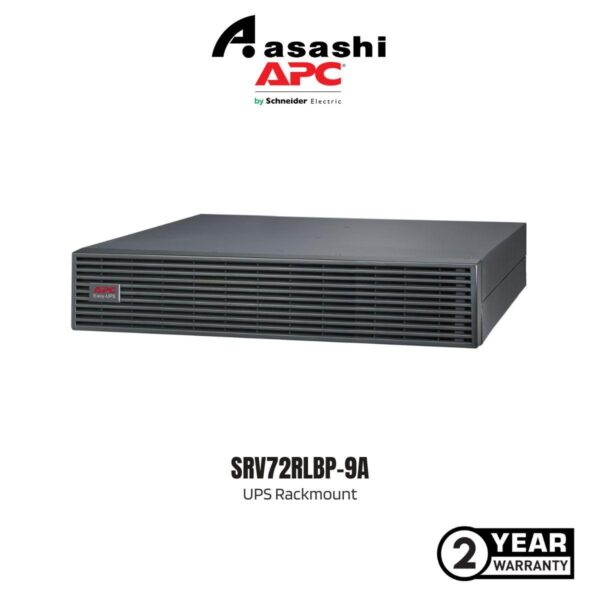

The APC Easy UPS SRV72RBP External Battery Pack is designed to extend the backup runtime of compatible APC Easy UPS SRV On-Line 2kVA and 3kVA Rackmount UPS systems during prolonged power outages.

Equipped with reliable lead-acid battery technology, this external battery module provides additional runtime capacity to support critical equipment for longer periods when utility power is unavailable. Its compact 2U rackmount design allows seamless installation in standard server racks, making it an excellent solution for IT infrastructure, network systems, and business-critical applications.

Key Features

• 72V External Battery Pack
• Compatible with APC Easy UPS SRV 2kVA / 3kVA Rackmount Extended Runtime UPS Models
• 2U Rackmount Design
• Extends UPS Runtime During Extended Power Failures
• Reliable Lead-Acid Battery Technology
• Includes Rack Mounting Kit for Easy Installation
• Designed for Server Rack and Data Center Environments
• 24-Month Manufacturer Warranty

Technical Specifications

Battery

• Product Type: External Battery Pack
• Battery Technology: Lead-Acid Battery
• Battery Voltage: 72V
• Number of Battery Blocks per String: 6
• Battery Slots:
  • Filled Slots: 0
  • Free Slots: 0
• Runtime Expansion: Supported with compatible UPS systems

Compatibility

Designed for use with:

• APC Easy UPS SRV On-Line 2kVA Rackmount UPS
• APC Easy UPS SRV On-Line 3kVA Rackmount UPS

Installation & Physical Specifications

• Installation Type: Rack Mount
• Rack Height: 2U
• Mounting Mode: Rack-mounted with included kit
• USB Compatible: No
• Color: Black

Dimensions

• Height: 86 mm
• Width: 438 mm
• Depth: 632 mm

Weight

• Product Weight: 42.5 kg
• Shipping Weight: 53.1 kg

Included Accessories

Package includes:

• APC Easy UPS SRV72RBP External Battery Pack
• Battery Cable
• Rack Mounting Brackets
• User Manual

Environmental Specifications

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -15°C to 40°C
• Operating Humidity: 0–95% (Non-Condensing)
• Storage Humidity: 0–95% (Non-Condensing)
• Operating Altitude: Up to 3,000 m
• Storage Altitude: Up to 15,000 m

Certifications & Compliance

Certified to:

• CE
• UKCA
• EAC
• EN/IEC 62040-1

Ideal Applications

Suitable for extending runtime in:

• Server Racks
• Network Cabinets
• Small Data Centers
• Telecommunications Systems
• Security Infrastructure
• Storage Equipment
• Enterprise IT Systems
• Critical Business Applications

Warranty

24-Month Manufacturer Warranty
