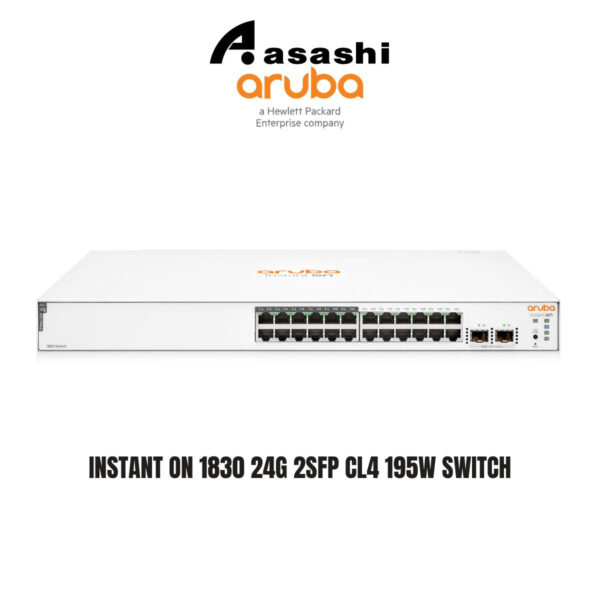

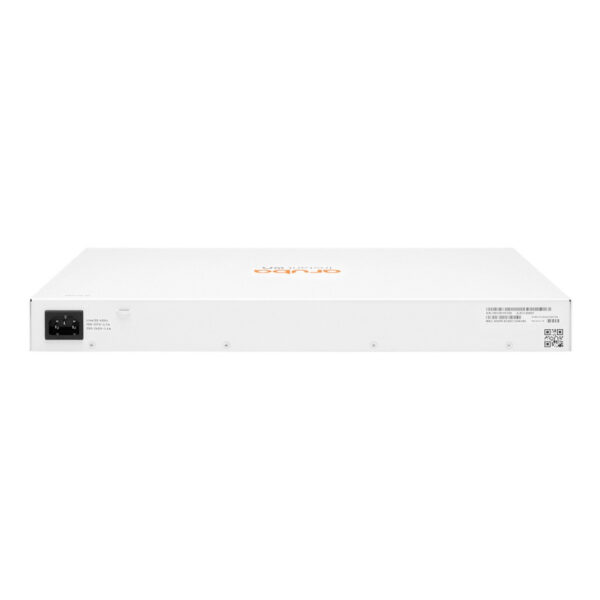

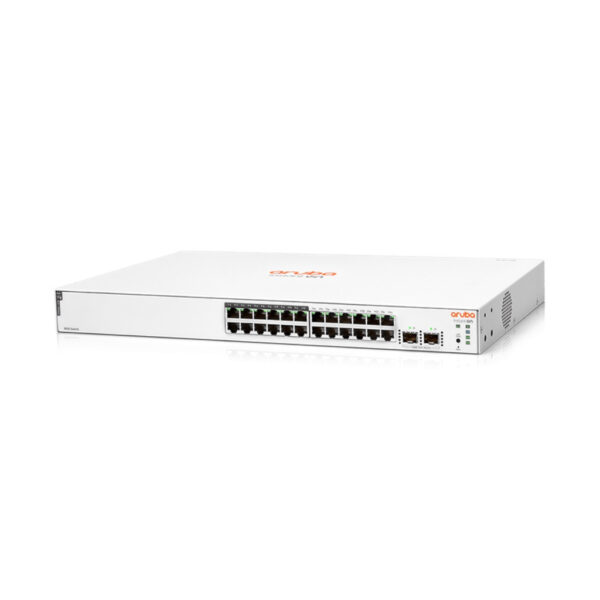

HPE Aruba Networking Instant On 1830 24G 2SFP CL4 195W Switch
Original price was: RM1,499.00.RM1,449.00Current price is: RM1,449.00.
Currently 29 people are viewing this product.
Available on backorder
Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.
Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.
| HPE Aruba Aruba Networking Instant On 1830 24G 2SFP CL4 195W Switch | |
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports
IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports |
| Physical Characteristics | |
| Dimensions | 253.0(d) x 443.0(w) x 43.9(h) mm |
| Weight | 7.65 lb (3.47 kg) |
| Processor and Memory | ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
| Performance | |
| 100 Mb latency | < 5.2 uSec |
| 1000 Mb latency | < 2.8 uSec |
| 10000 Mb latency | n/a |
| Throughput (Mpps) | 38.68 Mpps |
| Capacity | 52 Gbps |
| MAC address table size (# of entries) | 16,000 entries |
| Reliability MTBF (years) | 96.6 |
| Environment | |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) |
| Nonoperating/ storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/ storage relative humidity | 15% to 95% @ 140°F (60°C) |
| Altitude | up to 10,000 ft (3 km) |
| Acoustics | LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
| 100% traffic | LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
| 100% traffic / 0% PoE | LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
| 100% traffic / 50% PoE | LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
| 100% traffic / 100% PoE | LWAd = 5.1 Bel LpAm (Bystander) = 35 dB |
| Electrical Characteristics | |
| Frequency | 50Hz/60Hz |
| AC voltage | 100-127VAC / 200- 240VAC |
| Current | 2.7A/1.4A |
| Maximum power rating | 100-127V: 244.6W 200-220V: 237.2W |
| Idle power | 100-127V: 14.5W 200-220V: 13.4W |
| PoE power | 195 W Class 4 PoE |
| Power supply | Internal power supply |
| Safety | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
| Emissions | EN 55032:2015/CISPR 32, Class A
FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
| Weight | 3.50 kg |
|---|---|
| Dimensions | 45.00 × 25.00 × 10.00 cm |
