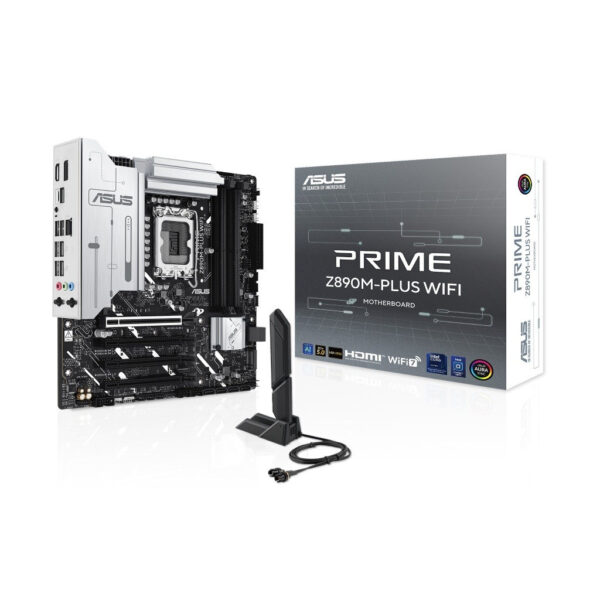

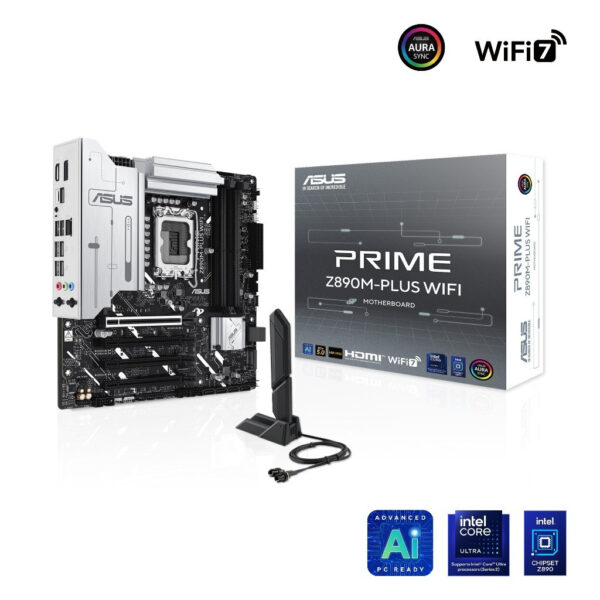

ASUS PRIME Z890M-PLUS WIFI-CSM (LGA1851) mATX Motherboard

Model : PRIME Z890M-PLUS WIFI-CSM

CPU
Supports Intel Core Ultra Processors(Series 2), LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel Z890 Chipset

Memory
4 x DIMM slots, max. 192GB, DDR5
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1 x DisplayPort*
1 x HDMI port*
1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output*
*Graphics specifications may vary between CPU types.
*Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*Supports 4K@60Hz as specified in HDMI 2.1.
*Supports max. 4K@120Hz as specified in DisplayPort 1.4.
*VGA resolution support depends on processors' or graphic cards' resolution.
*While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots
Intel Core Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot
Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)

Storage
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel Core Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel Z890 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Wireless & Bluetooth
Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band*
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Operating System
Windows 11 (22H2 & later)

Form Factor
mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
