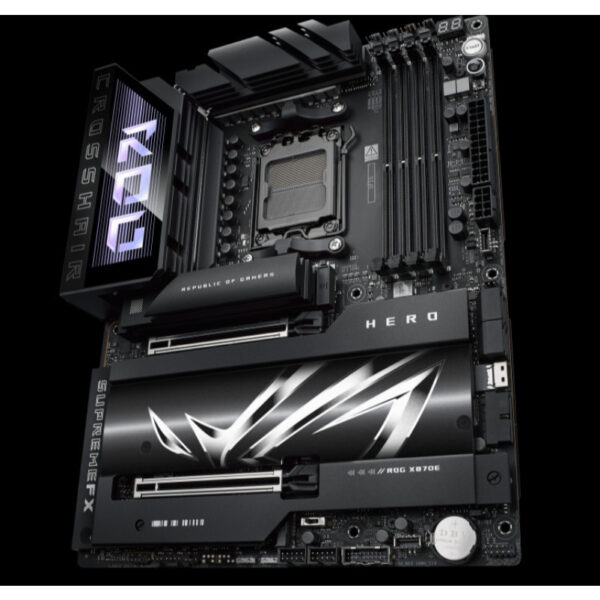

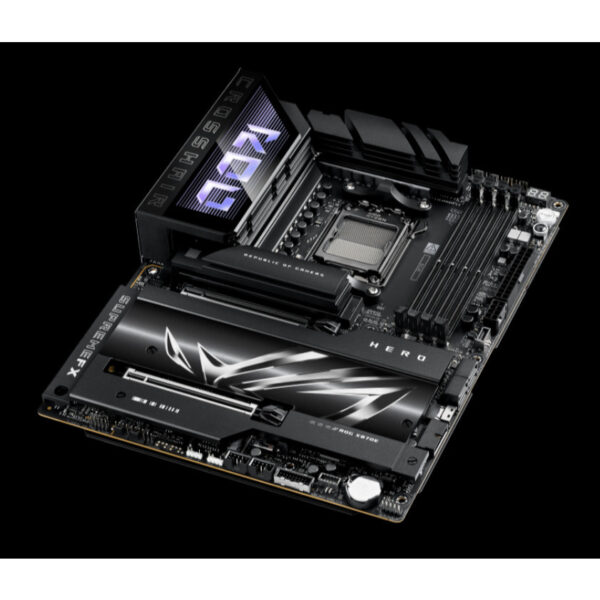

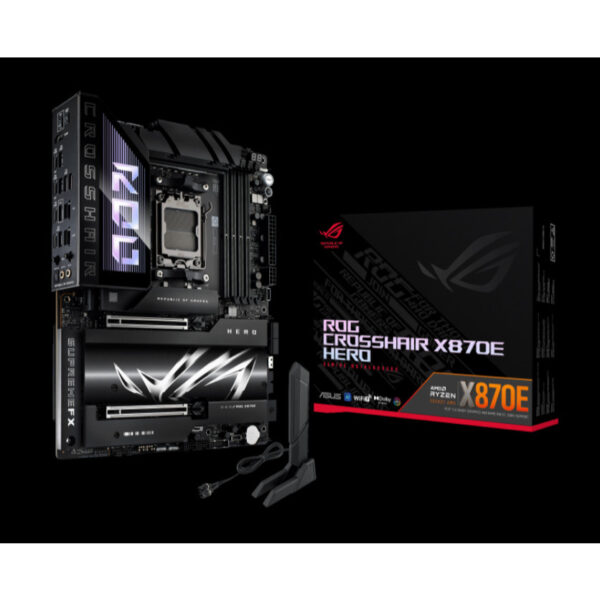

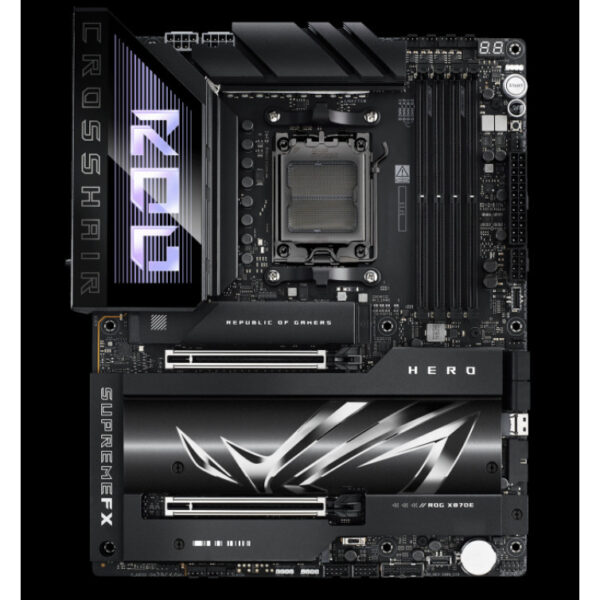

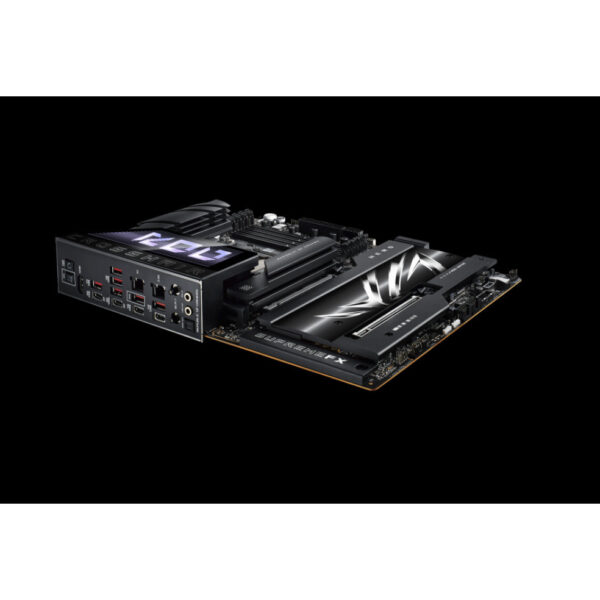

ASUS ROG CROSSHAIR X870E HERO (LGA1851) ATX Motherboard

Model : ROG CROSSHAIR X870E HERO

CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset
AMD X870E

Memory
4 x DIMM slots, max.192GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors,
8600+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1 x HDMI port*
2 x USB4 (40Gbps) ports support USB Type-C display outputs*
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
VGA resolution support depends on processors or graphic cards resolution.
*Supports 4K@60Hz as specified in HDMI 2.1.
*Supports max. 4K@60Hz as specified in DisplayPort 1.4a

Expansion Slots
AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8*or x8/x4/x4 modes*)
*When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8.
*When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.
*When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
AMD Ryzen 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)

Storage
Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SlimSAS slot supports PCIe 4.0 x4 mode.
4 x SATA 6Gb/s ports
**When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.
*When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4, M.2_2 will be disabled

Wireless & Bluetooth
Wi-Fi 7
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth v5.4

Operating System
Windows 11

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
