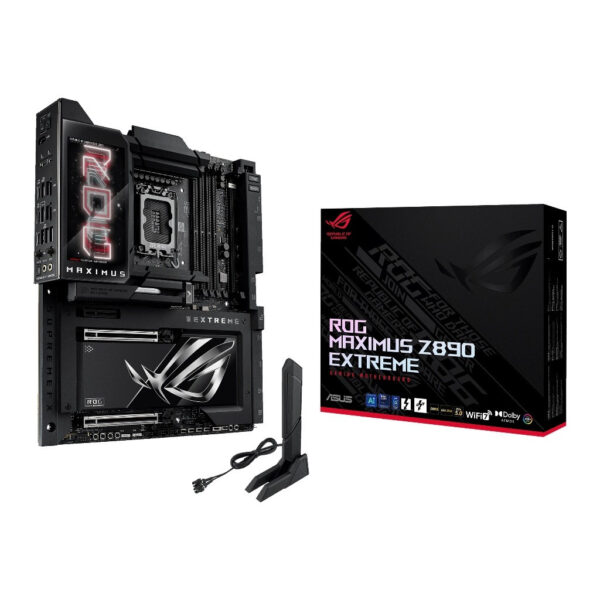

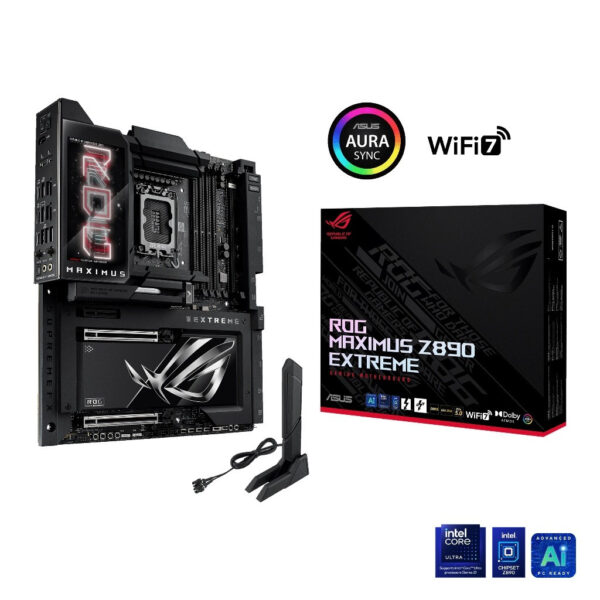

ASUS ROG MAXIMUS Z890 EXTREME (LGA1851) E-ATX Motherboard

Model : ROG MAXIMUS Z890 EXTREME

CPU
Support Intel Core Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel Z890 Chipset

Memory
4 x DIMM slots, max. 192GB, DDR5
Support up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex
DIMM Fit
NitroPath DRAM Technology
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration,
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1 x HDMITM port**
2 x Intel Thunderbolt 5 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs**
**Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
**Supports up to 1 x 8K@60HZ(DSC mode)+2 x 4K@60HZ monitors, It is recommended to chain-connect the monitors using a verified Thunderbolt cable.
**For resolution support please check DisplayPort 2.1 specs.bandwidth limited by DisplayPort 2.1 with up to 77.4 Gbit/s.
**In Thunderbolt 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
**VGA resolution support depends on processors' or graphic cards' resolution.
**While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots
Intel Core Ultra Processors(Series 2)*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
Intel Z890 Chipset**
1 x PCIe 4.0×4 slot

**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.

Wireless & Bluetooth
Intel Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4**

Operating System
Windows 11 (22H2 & later)
Form Factor
E-ATX Form Factor
12 inch x 10.9 inch (30.5 cm x 27.7 cm)
