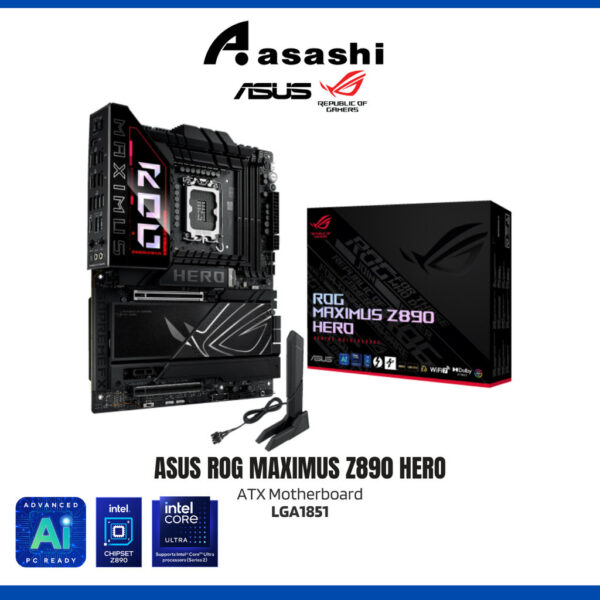

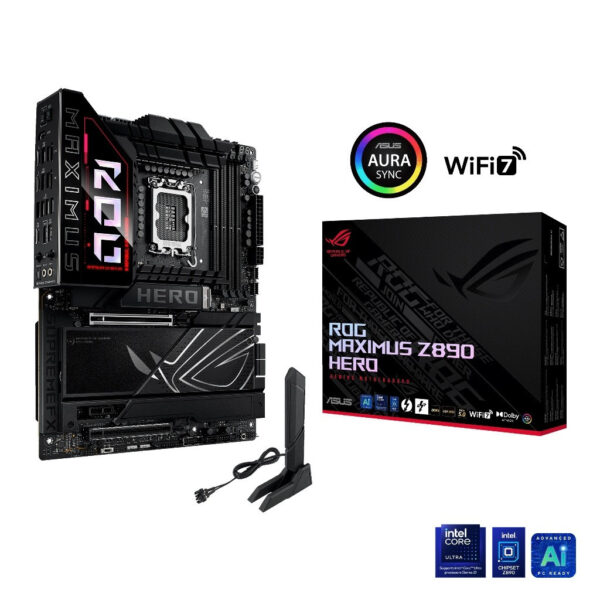

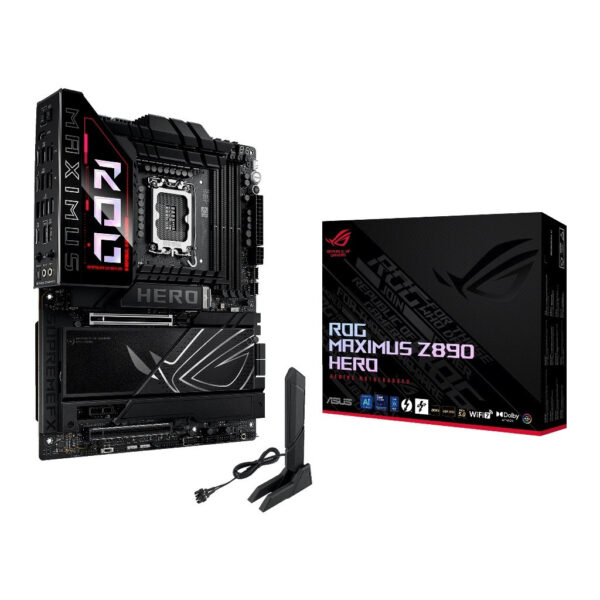

ASUS ROG MAXIMUS Z890 HERO (LGA1851) ATX Motherboard

Model : ROG MAXIMUS Z890 HERO

CPU
Support Intel Core Ultra Processors (Series 2) , LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel Z890 Chipset

Memory
4 x DIMM slots, max. 192GB, DDR5
Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM FIT
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1 x HDMI port*
2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs*
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
**In Thunderbolt 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
**In DP alt mode, Only one USB Type-C port supports up to UHBR20 at a time.
**VGA resolution support depends on processors' or graphic cards' resolution.
**While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots
Intel Core Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**
Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
–

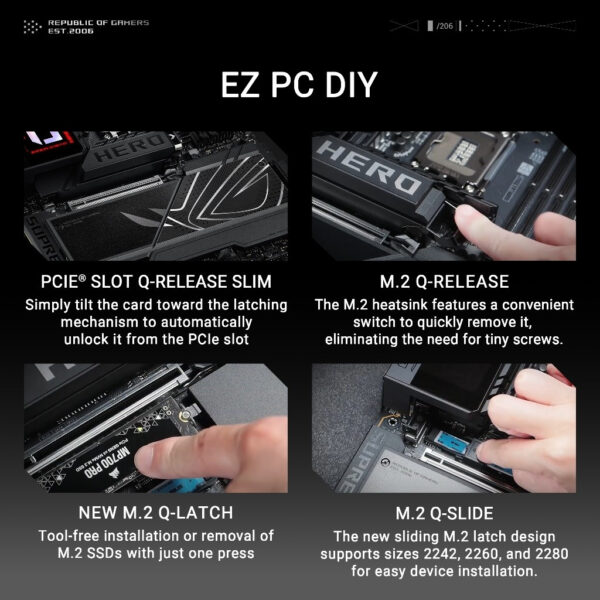

Storage
Supports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
Intel Core Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel Z890 Chipset
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately.
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.

Wireless & Bluetooth
Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band*
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4*

Operating System
Windows 11 (22H2 & later)

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
