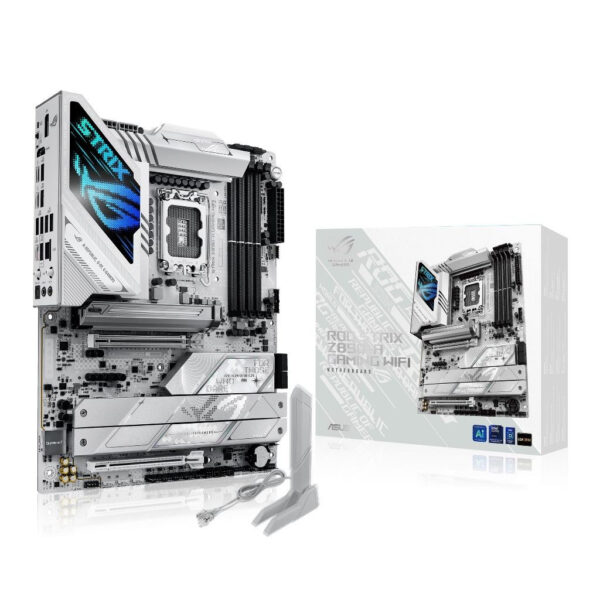

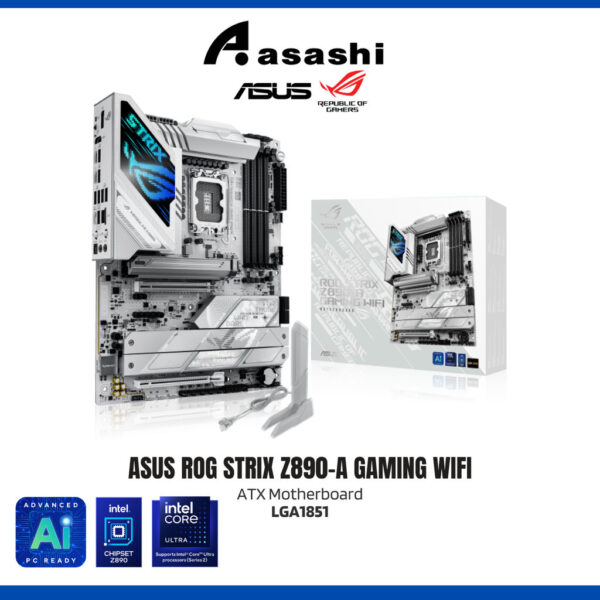

ASUS ROG STRIX Z890-A GAMING WIFI (LGA1851) ATX Motherboard

Model : ROG STRIX Z890-A GAMING WIFI

CPU
Support Intel Core Ultra Processors (Series 2)*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel Z890 Chipset

Memory
4 x DIMM slots, max. 192GB, DDR5
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
Supports DIMM FIT
ASUS Enhanced Memory Profile III (AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1 x DisplayPort*
1 x HDMI port**
2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs**
– Graphics specifications may vary between CPU types.
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
**In Thunderbolt 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
**VGA resolution support depends on processors' or graphic cards' resolution.
**While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots
Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot

Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage
Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

Intel Core Ultra Processors (Series 2)*

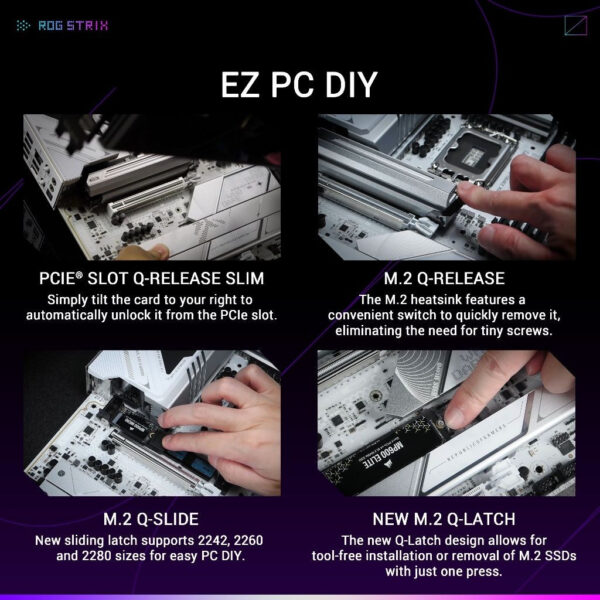

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Wireless & Bluetooth

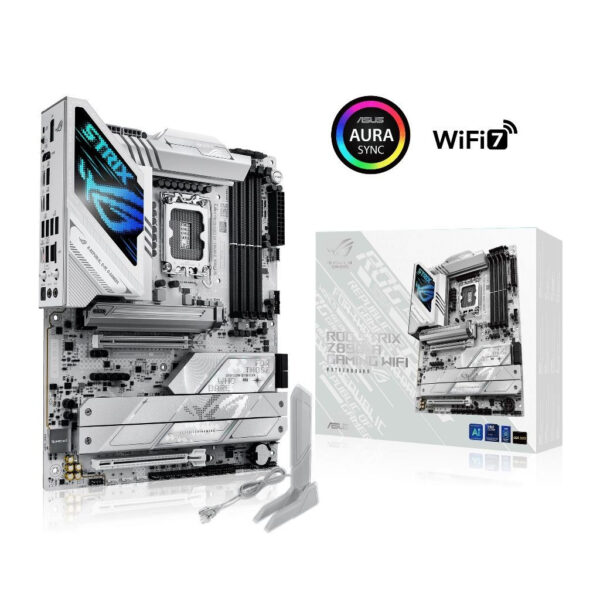

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4*
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
**Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
**The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Operating System
Windows 11 (22H2 later)

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
