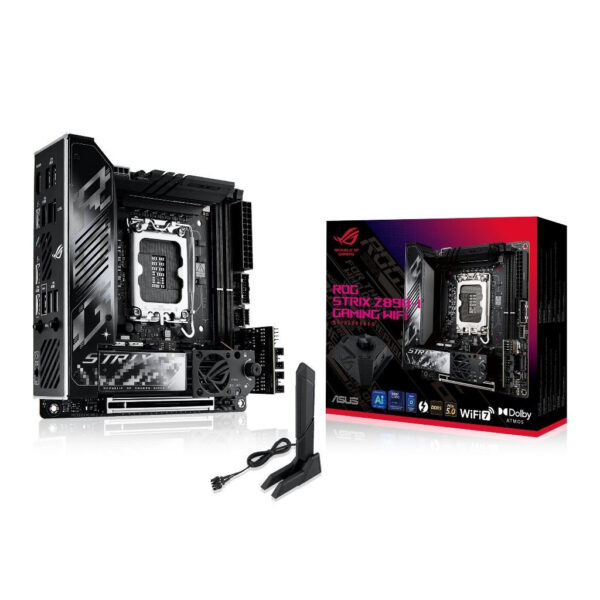

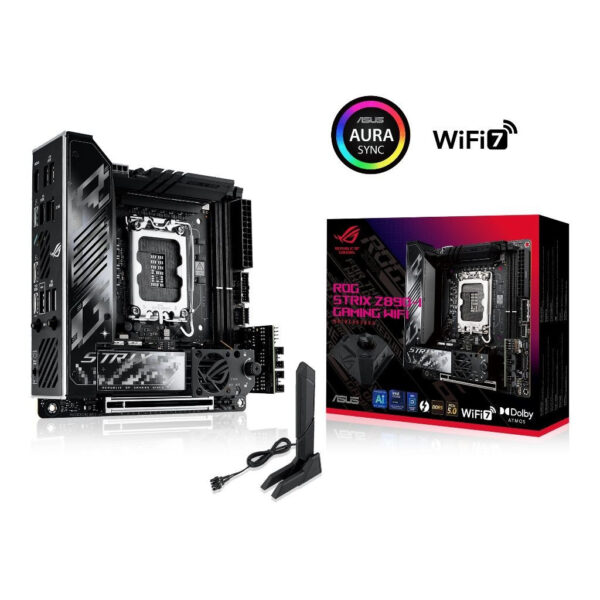

ASUS ROG STRIX Z890-I GAMING WIFI (LGA1851) ITX Motherboard

Model : ROG STRIX Z890-I GAMING WIFI

CPU
Support Intel Core Ultra Processors(Series 2)*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel Z890 Chipset

Memory
2 x DIMM slots, max. 96GB, DDR5 Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1 x HDMI port**
2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs***
* Graphics specifications may vary between CPU types.
** Supports 4K@60Hz as specified in HDMI 2.1.
**In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP
alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
**VGA resolution support depends on processors' or graphic cards' resolution.
**While installing the operating system, please ensure that your monitor is connected to the HDMI port on the
back I/O panel or to a discrete graphics card.

Expansion Slots
Intel Core Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 mode)

Storage
Total Supports 2 x M.2 slots and 2 x SATA
6Gb/s ports*
Intel Core Ultra Processors(Series 2)**
M.2_1 slot (Key M), type
2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type
2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
2 x SATA 6Gb/s ports**
*Intel Rapid Storage Technology supports
PCIe RAID 0/1, SATA RAID 0/1.
**M.2_2 slot shares bandwidth with
PCIEX16(G5). When M.2_2 slot is occupied with SSD device, PCIEX16(G5) will run
x8 only.
**Install ROG FPS Card to support 2 x
SATA 6Gb/s ports.

Wireless & Bluetooth
Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to
5.8Gbps transfer rate.
Bluetooth v5.4*
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,
Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth
regulatory may vary between countries.
**The Bluetooth version may vary, please
refer to the Wi-Fi module manufacturer's website for the latest specifications.

Operating System
Windows 11 (22H2 later)

Form Factor
Mini-ITX Form Factor
6.7 inch x 6.7 inch (17 cm x 17 cm)
