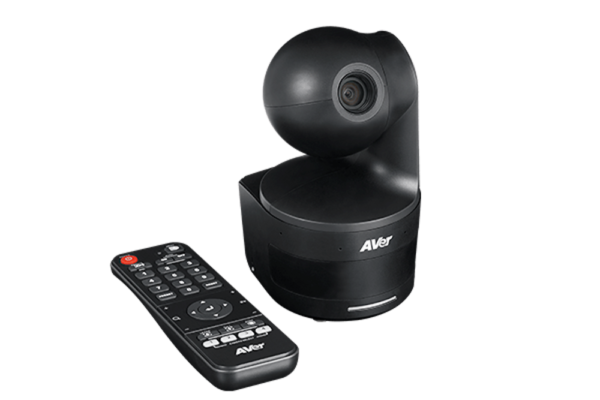

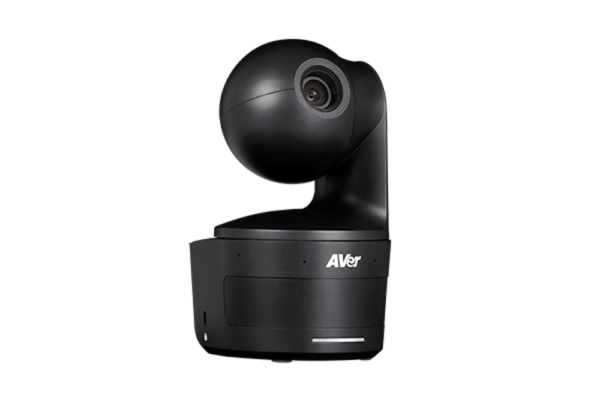

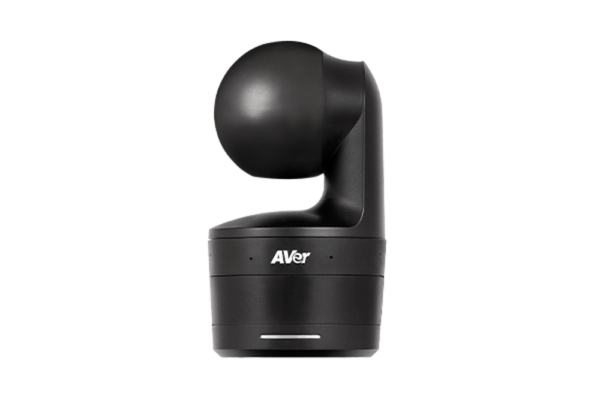

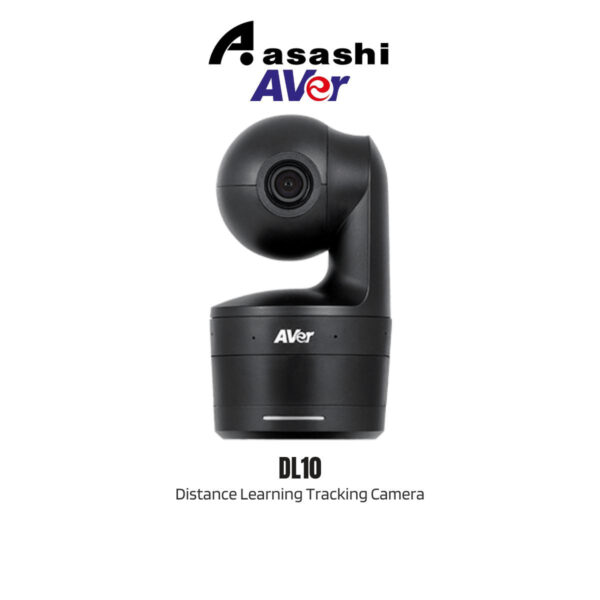

AVer DL10 Distance Learning Tracking Camera



Distance Learning Tracking Camera

Equipped with high portability and a lightweight design, any educator can use the DL10 to directly connect to his/her laptop via USB port to start distance teaching anywhere. Featuring a Full HD 1080p resolution and a 2 megapixels camera, the DL10 delivers premium image quality. Through the DL10’s three AI auto tracking modes and intuitive gesture control, teachers can easily setup different modes to create perfect classes. Thanks to the built-in noise suppression microphones, the DL10 actively detects the teacher’s speech and eliminates intrusive background noises. After class, teachers can truly switch off with DL10 Sleep Mode functionality, where it automatically turns itself off when online class is dismissed.

Light-Weight & Portable

The DL10 weighs only 760g, giving teachers freedom to take work anywhere – just place the DL10 directly on the desk or on the included tripod. USB plug-and-play functionality allows teachers to start distance teaching anytime, anywhere.

AI Auto Tracking

Equipped with industry leading AI auto-tracking algorithms, the DL10 can share the teacher’s every move with the students. The DL10’s AI does all the tracking work, without requiring any annoying add-on sensors or devices. Never worry about walking out of the frame or going out of focus again, remote students can see you on the screen wherever you go.

Balanced Zoom Ratio

With budget in mind for schools, the DL10 is the perfect solution: 3X optical zoom delivers clear details, and 6X total zoom ratio is perfect for online or hybrid teaching in any standard K-12 classroom or at home.

Noise Suppression Microphones

The DL10’s built in advanced noise suppression technology detects the teacher’s speech while decreasing environmental noises such as keyboards, mouses, and books, delivers clearer sound quality for an excellent audio visual experience.

Sleep Mode for Privacy

Simply turn off your laptop or the software when you finish teaching, and the DL10 will go to Sleep Mode and switch off all functionality within 10 seconds. When it’s time to start teaching again, the DL10 will resume right where you left off with tracking and other settings unchanged. The DL10 makes privacy protection the way it should be: easy.

Innovative Gesture Controls

Gesture control allows the teacher to use intuitive gestures to turn on and off tracking, adjust shooting angles for bodies, etc. without touching the screen or using the keyboard, mouse, or remote control.





Specifications

Camera

Image Sensor

• 1/2.8' 1080p Low Lux CMOS

Effective Picture Elements

• 2 Megapixels

Output Resolutions

• 1080p/60 (IP Streaming & USB)

Minimum Illumination

• 0.5 Lux (IRE50, F2.0, 30fps)

S/N Ratio

• ≥ 50 dB

Gain

• Auto, Manual

TV Lines

• 800 (Center/Wide)

Shutter Speed

• 1/4 to 1/10,000 sec (60 Hz)
• 1/3 to 1/10,000 sec (50 Hz)

Exposure Control

• Auto, Manual, WDR

WDR

• Yes

White Balance

• Auto, Manual

Optical Zoom

• 3X

Digital Zoom

• 2X

Viewing Angles

• DFOV: 90° (Wide) to 35.8° (Tele)
• HFOV: 82° (Wide) to 31.7° (Tele)
• VFOV: 51° (Wide) to 17.9° (Tele)

Focal length

• f = 3.3 mm (Wide) to 9.7 mm (Tele)

Aperture (Iris)

• F = 2.0 (Wide) to 3.7 (Tele)

Minimum Working Distance

• 0.5 m (Wide), 1.0 m (Tele)

Pan/Tilt Angles

• Pan : ±170°, Tilt : ±90°

Pan/Tilt Speed (Manual)

• Pan: 1° to 100°/sec
• Tilt: 10.8° to 100°/sec

Preset Speed

• Pan : 200°/sec, Tilt : 200°/sec

Preset Positions

• 10 (IR), 256 (IP & USB)

Camera Control – Interfaces

• IP, USB

Camera Control – Protocols

• VISCA (IP), CGI (IP), USB

Image Processing

• Noise Reduction (2D/3D), Flip, Mirror, WDR

Power Frequencies

• 50 Hz, 60 Hz

AI Auto Tracking Functions

Tracking Modes

• Presenter Mode, Zone Mode, Hybrid Mode

Gesture Control

• Yes (Tracking On/Off, Full/Upper Body)

Privacy Protection Mechanisms

Protection Modes

• Privacy Mode, Sleep Mode

Audio

Channels

• Line in: 2ch Stereo
• Mic in: Mono

Codecs

• AAC-LC (48, 32, 16, 8K), PCM (48K)

Sample Rates

• 48, 32, 16, 8 KHz

Microphones

Built-in Microphones

• 2 (Omnidirectional)

Noise Suppression

• Yes

Pickup Range

• 5 m

Sensitivity

• -33 dBFS

Frequency Response

• 30 Hz to 20 KHz

Maximum SPL

• 129 dB SPL at 0.5 m

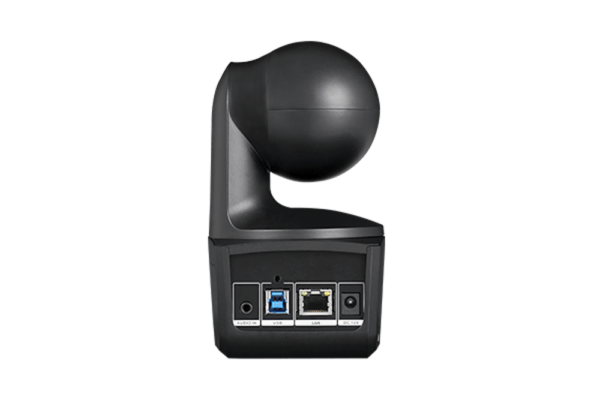

Interface

Video Outputs

• IP, USB

Audio Outputs

• IP, USB

Audio Inputs

• Line in, Mic in

General

Power Requirement

• AC 100 – 240V to DC 12V/2A

Power Consumption

• 11W

PoE+

• N/A

Dimensions (W x H x D)

• 92.4 x 164.0 x 94.4 mm

Net Weight

• 0.76 kg

Application

• Indoor

Tally Lamp

• N/A

Security

• Kensington Slot

Remote Control

• Infrared

Operating Conditions

• Temperature: 0°C to 40°C
• Humidity: 20% to 80%

Storage Conditions

• Temperature: -20°C to 60°C
• Humidity: 20% to 95%

IP Streaming

Resolution

• 1080p 60fps

Network Video Compress Formats

• H.264, MJPEG (Web Page)

Network Audio Compression Formats

• AAC-LC

Sample Rates

• 48, 32, 16, 8 KHz

Maximum Frame Rate

• 1080p 60fps

Bit-Rate Control Modes

• VBR, CBR

Bit-Rate Range Setting

• 512 Kbps to 32 Mbps

Network Interface

• 10/100 Base-T

Multi-Stream Capability

• 2 (1 for IP Streaming, 1 for Web Page), (1 for USB, 1 for Web Page),1080p 60fps (max.)
• 3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p 30fps (max.)

Network Protocols

• IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP

NDI^®|HX Capability

• N/A

USB

Connector

• USB 3.1 Gen 1 Type-B

Video Formats

• MJPEG, YUY2

Maximum Video Resolution

• 1080p

USB Video Class (UVC)

• UVC 1.1

USB Audio Class (UAC)

• UAC 1.0

Web UI

Live Video Preview

• Yes

Camera PTZ Control

• Pan, Tilt, Zoom, Focus, Preset Control

Camera / Image Adjustment

• Exposure, White Balance, Picture

Network Configuration

• DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

IP Search and Configuration Tool

• Supports Windows^® 7 or later

PTZ Management

• Supports Windows^® 7 or later

PTZ Control Panel

• Supports iOS & iPadOS^® 9 or later

OBS Plugin for PTZ Cameras

• Supports Windows^® 8 or later, macOS^® 10.13 or later

CaptureShare

• Supports Windows^® 7 or later, macOS^® 10.14 or later

Warranty

Camera

• 3 Years

Accessories

• 1 Year

Package Contents

• Camera
• Remote Control
• Power Adapter
• Power Cord
• USB Cable
• Cable Ties (x3)
• Cable Fixing Plate
• M2 x 4mm Screws (x2)
• 1/4'-20L 7.5mm Screw (x1)
• Quick Start Guide
