AVerVision CL01 – PTZ Camera Controller

L01

The ideal solution for education, conferencing, telemedicine, livestreaming & broadcasting!

PTZ Camera Controller

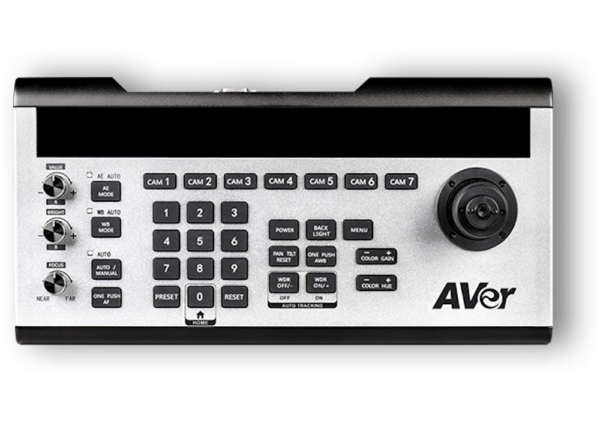

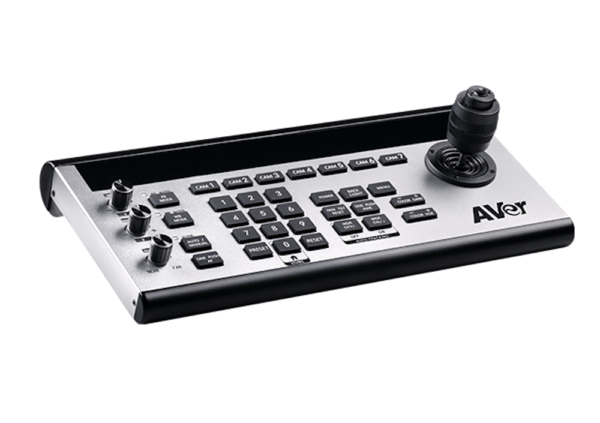

The AVer CL01 is a professional PTZ camera controller with a robust communication interface, built-in VISCA and Pelco-D/P protocols. It supports RS-422 / RS-485 / RS-232 / IP control for compatibility with most PTZ cameras. Simple configuration makes it easy to operate the 7 camera shortcut channels, 3 infinite rotation knobs, and more.

Pan/Tilt/
Zoom Speed Control

Control
255 PTZ Cameras

Multiple Control Interfaces

VISCA/
Pelco-D/P

Application Environment

Education

Business

Live Streaming

Health Care

Specs

I/O Interface

Communication

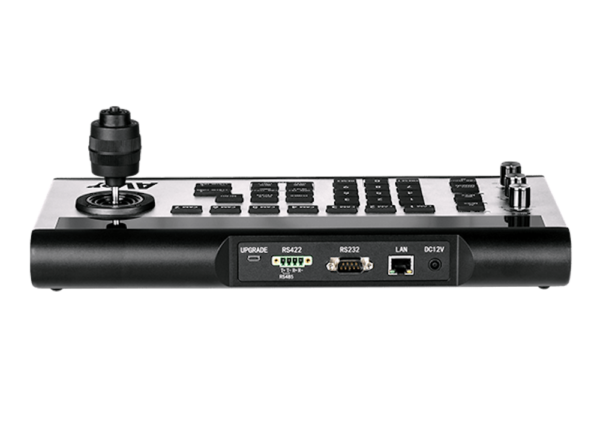

• RS-485, RS-422, RS-232, IP, Micro USB for firmware upgrades

Baud Rate

• 2400, 4800, 9600, 19200, 38400 bps

User Interface

Display

• OLED display screen

Camera Shortcut Channel

• 7

Rotation Button

• 3

Joystick

• 1

Camera Control

IP Address

• Default: 192.168.1.162 /163 /164 /165 /166 /167 /168 (from Cam 1 to Cam 7)

UDP Port

• 08090

Cam ID

• 1 to 7 and more (255* max.)

Control Protocol

• VISCA, SONY VISCA , Pelco D/P, UDP, IP (VISCA over IP)

System

Operating Temperature

• 0°C ~ 40°C (32°F ~ 104°F)

Dimensions

• 173 mm (W) x 99 mm (H) x 350 mm (D)

Net Weight

• 2.5 kg

Power Source

• DC 12V/2A
• AC 100 – 240V

Power Consumption

• 24 W

Application

• Indoor

Warranty

• 3 years

• User manual
• 4-pin RS485 terminal
• power adapter

* After setting up the multi-channel function, select the camera and then press CAM 7 to start controlling it.
Specifications may vary depending on location and are subject to change without notice.
