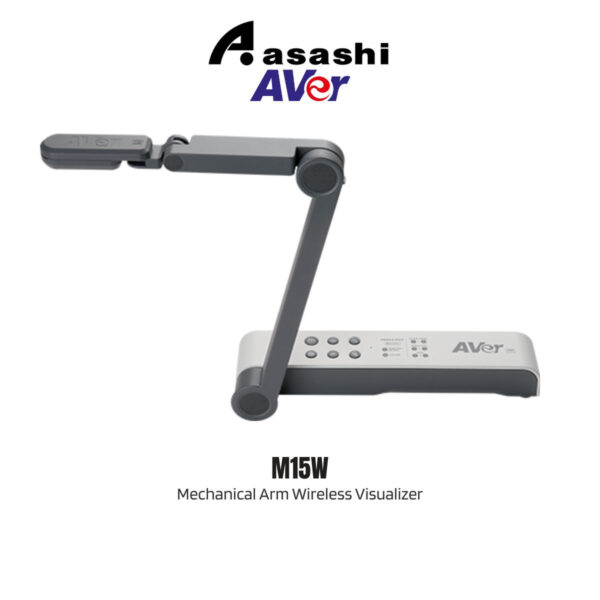

AVerVision M15W – Mechanical Arm Wireless Visualizer

Mechanical Arm Wireless Visualizer (Document Camera)

The M15W is a visualizer (document camera) designed to facilitate learning at all education levels. The beautifully sleek, compact body of the M15W reflects the wild freedom of its Wi-Fi connectivity and stunning 13-megapixel camera with 4K, 60fps imaging. Creating an engaging and interactive learning experience in a second with M15W’s wireless advantage is a dream come true.

4K 60fps

13 MP

23X Digital Zoom

Dual Band Wi-Fi

Rechargeable Li-ion Battery

3-Year Warranty

13-Megapixel Camera with 4K Quality

The 13-megapixel camera delivers 4K Ultra HD 60fps output resolution, creating remarkably detailed images of any object. Enjoy breathtaking video with no lag.

Fantastic USB Camera for Distance Learning

The M15W’s extremely compact and lightweight design makes it the best USB camera for boundary-free distance learning. It even includes a highly convenient rechargeable battery so you can just grab it and get online!

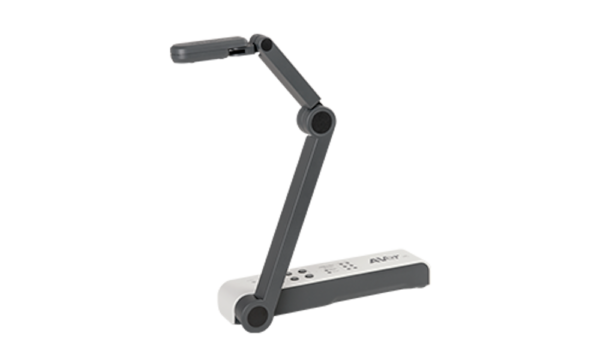

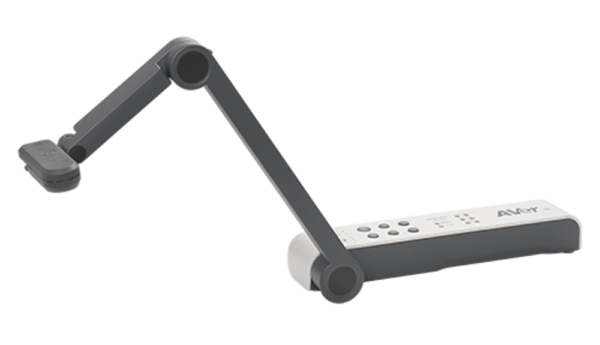

Highly Flexible Foldable Arm

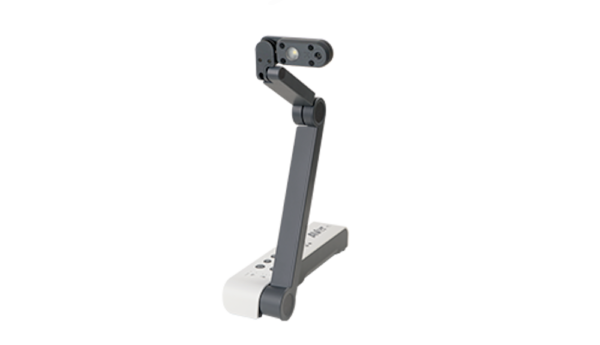

The flexible and adjustable arm allows users to capture A3 or larger papers. Also, never worry about upside-down images again. Thanks to the position indicator on the camera head, teachers can always rock an accurate and efficient display.

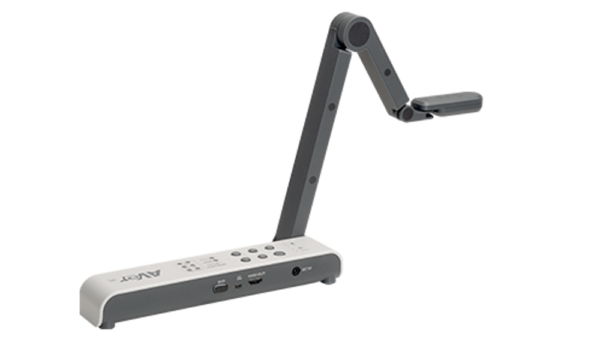

Wired or Wireless — Whichever You Prefer

Not a fan of wireless connection or don’t have an ideal Wi-Fi environment? No problem. Teachers can visualize materials from multiple devices via USB or HDMI connections. Changing teaching behavior should be the least of your concerns.

AVerTouch Software

Here comes AVer’s latest and most powerful software—AVerTouch. All it takes is one touch to connect the M15W with mobile devices for content sharing, and teachers can connect to the cloud to automatically save annotated, captured, and recorded files.

Specs

Image sensor

• 1/3.06" CMOS

Total pixels

• 13 megapixels

Frame rate

• 60 fps (max.)

• 4K / Full HD 1080p 60Hz / HD 720p 60Hz

TV lines

• 1400

Zoom

• Total 23X (max.)

Focus

• Auto / Manual / Area (via software)

Shooting area

• A3 (426 x 313 mm at 330 mm)

Image rotation

• 0° / 90° / 180° (rotate by camera head)

Preview mode

• Normal / Motion / High Quality

Effect

• Rotate / Freeze

Dual mode

• AP / Station DHCP (Server / Client)

Wi-Fi streaming

• 1080p 30 fps / up to 4K 30 fps

Dual band

• 5 GHz / 2.4 GHz

Miracast

• Yes

Compatibility

• 802.11a/b/g/n/ac (45 ft effective range)

Wireless security

• Support WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
  (EAP-PEAP, EAP-TLS)

Image effects

• Color / B&W / Negative

Image adjustments
(white balance / exposure)

• Auto / Manual

Recording

• Yes, via software

Capture

• Yes, via software

Annotation

• Yes, via software

Timer

• Yes, via software

Picture-by-picture

• Yes, via software

Capture mode

• Single, via software

User profile

• 1

Flicker filter control

• Yes

ePTZ

• Yes, via software

Cloud library

• Yes, via software

USB bus power

• Yes, standby only

Lamp type

• LED light

MIC

• Built-in

USB

• USB 2.0 Type A (Wi-Fi Dongle)
• USB Type mini-B *1

Dimensions (L x W x H)

• Operating: 518 mm (L) x 84 mm (W) x 351 mm (H)

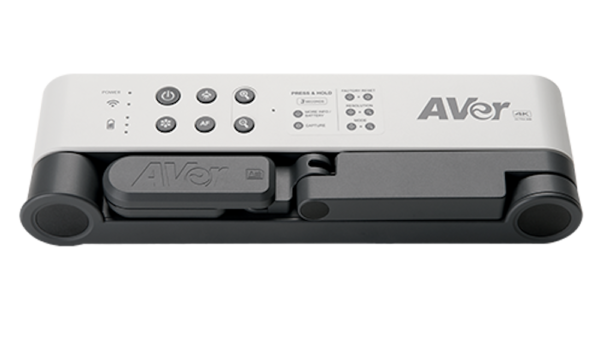

• Folded: 280 mm (L) x 84 mm (W) x 42 mm (H)

Weight

• 0.68 kg (1.5 lbs)

Warranty

• Visualizer: 3 years
• Battery and accessories: 1 year

Power source

• DC 5V/2A
• AC 100-240V

Consumption

• 4 Watts (lamp on)
• 3.5 Watts (lamp off)

Windows^® OS

• Windows^® 7, 10, 11

Mac^® OS

• macOS^® 10.15, 11, 12

iOS

• iOS 12

Android™ OS

• Android 7.1

Optional accessories

• Carrying bag
• Anti-glare sheet

Package Contents

• AVerVision M15W unit
• Quick guide
• USB cable
• Power adapter (DC 5V)
• Warranty card

*For detailed warranty information, please visit the warranty & repair page
** Specifications may vary depending on location and are subject to change without notice.
