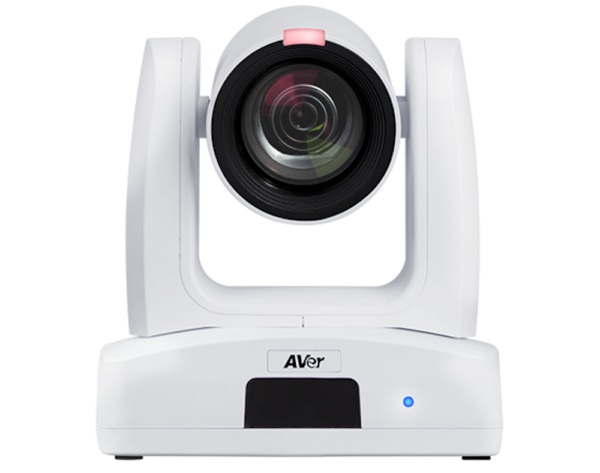

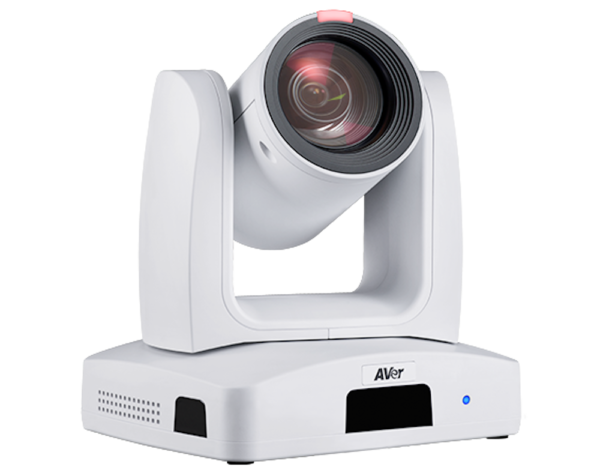

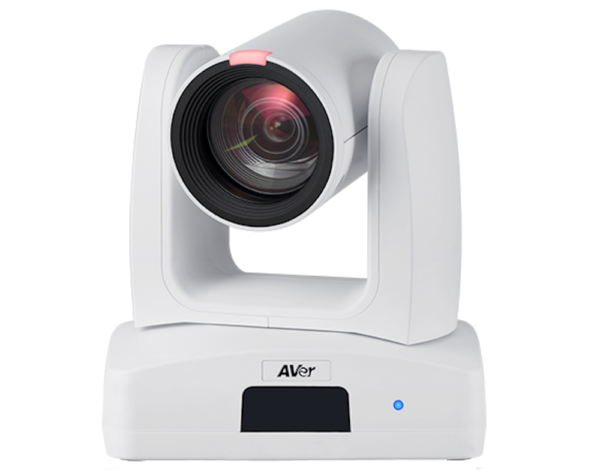

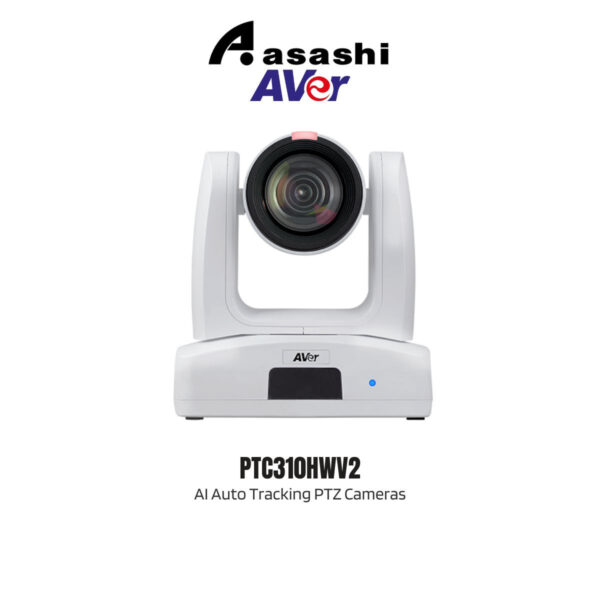

PTC310HWV2AI Auto Tracking PTZ Cameras

Track Every Moment

AI Auto Tracking PTZ Camera

The PTC310HWV2 AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC310HWV2 features in-house AI functions like Presenter Mode, Zone Mode, and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 12X Optical Zoom lens and Full HD 1080p resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!



Upgrade Your Cameras to NDI!

Upgrade your AVer cameras with NDI^®|HX. A separate NDI^®|HX license key is required for each camera, and internet connection is required for initial activation. To learn more about NDI^® upgrade, please visit

Full HD 1080p Output Resolution

Equipped with Full HD 1080p resolution, the PTC310HWV2 provides ultra-precise auto tracking. The PTC310HWV2 also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.





12X Optical Zoom & 12X Digital Zoom

The zoom power of the PTC310HWV2 reaches an incredible 144X (12X optical and 12X digital zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310HWV2.

Human Detection AI

Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables the PTC310HWV2 to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.

Click & Track

With the PTC310HWV2, you can simply click on a target to quickly adjust the shooting angle and initiate precise tracking, ensuring you can redirect in an instant. This advanced feature is easy for anyone to operate via both remote control and intuitive Web UI.

Presenter Mode

Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.

Zone Mode

Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.



Hybrid Mode

Hybrid Mode provides the utmost freedom of movement for performing artists. Use preset areas for segment tracking to have the camera automatically snap to a full view of each preset location as the artist moves between it. If the artist leaves the preset areas, the camera seamlessly transitions to tracking mode and follows the artist wherever they go.







Specifications

Camera

Image Sensor

• 1/2.8' 1080p Exmor CMOS

Effective Picture Elements

• 2 Megapixels

Output Resolutions

• 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50

Minimum Illumination

• 0.5 lux (IRE50, F1.6, 30fps)

S/N Ratio

• ≥ 50dB

Gain

• Auto, Manual

TV Lines

• 900 (Center/Wide)

Shutter Speed

• 1/1 to 1/32,000 sec

Exposure Control

• Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR

White Balance

• Auto, Manual, ATW, One Push

Optical Zoom

• 12X

Digital Zoom

• 12X

Total Zoom

• 144X

Viewing Angles

• DFOV : 78° (Wide) to 7° (Tele)
• HFOV : 70° (Wide) to 6° (Tele)
• VFOV : 42° (Wide) to 3° (Tele)

Focal Length

• f = 3.9 mm (Wide) to 46.8 mm (Tele)

Aperture (Iris)

• F = 1.6 (Wide) to 2.8 (Tele)

Minimum Working Distance

• 0.3 m (Wide), 1.5m (Tele)

Pan / Tilt Angles

• Pan : ±170°, Tilt : +90° / -30°

Pan / Tilt Speed (Manual)

• Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec

Preset Speed

• Pan : 200° / sec, Tilt : 200° / sec

Preset Positions

• 10 (IR), 255 (RS-232 / RS-422 / IP)

Camera Control – Interfaces

• RS-232 (DIN8), RS-422 (RJ45), IP

Camera Control – Protocols

• VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)

Image Processing

• Noise Reduction (2D / 3D), Flip, Mirror

Power Frequencies

• 50 Hz, 60 Hz

AI Auto Tracking Functions

Tracking Modes

• Presenter Mode, Zone Mode, Hybrid Mode

Privacy Protection Mechanism

Protection Mode

• Sleep Mode

Audio

Channels

• 2ch Stereo

Codecs

• AAC-LC, PCM

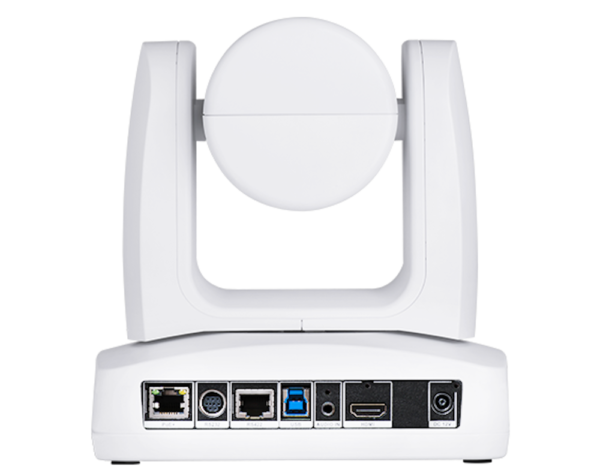

Interface

Video Outputs

• HDMI, IP, USB

Audio Outputs

• HDMI, IP, USB

Audio Inputs

• MIC in, Line in

General

Power Requirement

• AC 100 – 240V to DC 12V/5A

Power Consumption

• 19W

PoE

• PoE+

Dimensions (W x H x D)

• 180.0 x 192.0 x 145.0 mm

Net Weight

• 2.0 (±0.1) kg

Application

• Indoor

Tally Lamp

• Yes

Security

• Kensington Slot

Remote Control

• Infrared

Operating Conditions

• Temperature: 0°C to +40°C; Humidity: 20% to 80%

Storage Conditions

• Temperature: -20°C to +60°C; Humidity: 20% to 95%

IP Streaming

Resolution

• 1080p 60fps

Network Video Compress Formats

• H.264, H.265, MJPEG

Maximum Frame Rate

• 1080p 60fps

Bit-Rate Control Modes

• VBR, CBR (selectable)

Range of Bit-Rate setting

• 512 Kbps to 32 Mbps

Network Interface

• 10 / 100 / 1000 Base-T

Multi-stream Capability

• 2 (RTSP / Web Page), 1080p 60fps (max.)

Network Protocols

• IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP

NDI^®|HX Capability

• License Upgrade

USB

Connector

• USB 3.1

Video Formats

• MJPEG, YUY2

Maximum Video Resolution

• 1080p

USB Video Class (UVC)

• UVC 1.1

USB Audio Class (UAC)

• UAC 1.0

Web UI

Live Video Preview

• Yes

Camera PTZ Control

• Pan, Tilt, Zoom, Focus, Preset Control

Camera / Image Adjustment

• Exposure, White Balance, Picture

Network Configuration

• DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

IP Search & Configuration Tool

• Support Windows^® 7 or later

PTZ Management

• Support Windows^® 7 or later

PTZ Control Panel

• Supports iOS & iPadOS^® 11 or later

PTZ Link

• Support Windows^® 7 or later, macOS^® 10.14 or later

OBS Plugin for PTZ Cameras

• Support Windows^® 8 or later, macOS^® High Sierra v10.13 or later

CaptureShare

• Support Windows^® 7 or later, macOS^® 10.14 or later

Warranty

Camera

• 5 Years

Accessories

• 1 Year

Package Contents

• Camera, Drilling Paper, Ceiling Mount Bracket (x2) Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4'-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)

Optional Accessories

• AVer CL01 PTZ Camera Controller, L-Type Wall Mount
