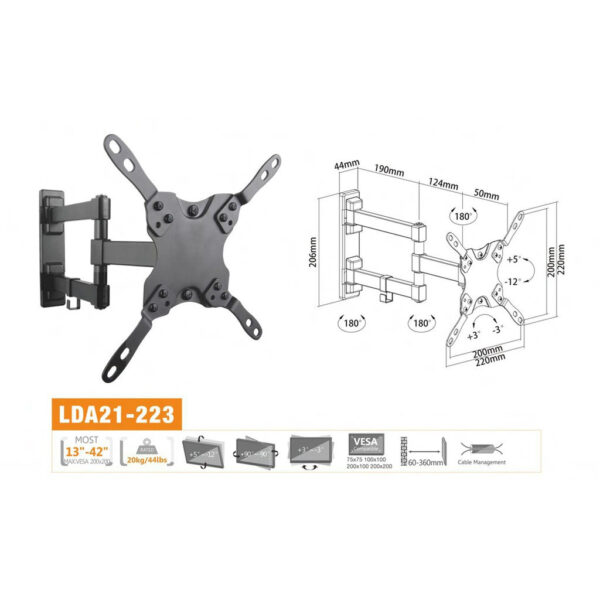

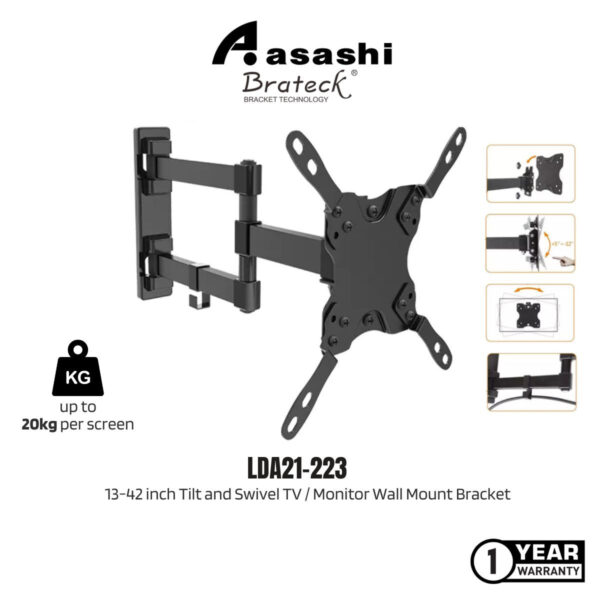

Brateck LDA21-223 13” – 42”, Tilt – 12°, Swivel + -90°, Level Adjustment + – 3° Tilting and Swivel Wall TV Bracket

The LDA21-223 is a full-motion wall mount for most 13 -42 LED, LCD flat panel TVs, monitors, up to 20Kgs/44lbs. It allows smooth, effortless tilt motion that makes it easy to reduce glare and find the perfect viewing angle at any height. This pre-assembled arm comes complete with cable clips and decorative covers to ensure an elegant and tidy look. Level adjustment of 3° clockwise and counter-clockwise turning for achieving the ideal setup. It is compatible with VESA hole up to 200×200.

PRODUCT HIGHLIGHTS
– Full motion wall mount for monitors and TVs
– Simple and cost-saving
– Tilting angle up to 12° downward
– Wide swivelling arm offer maximum viewing angle
– Installer-friendly design
– Useful cable clip for cable management
– Support loading weight up to 44lbs/ 20kg

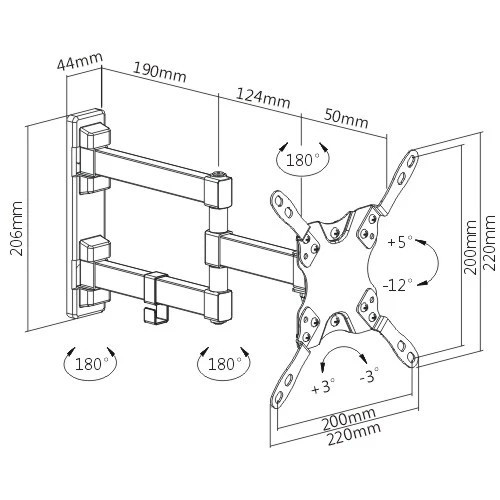

Technical Data
Type : Wall
Function : Full-motion
Mounting Pattern : Universal
Material : Steel, Plastic, Metal
Thickness : Wall panel 2.5 mm; Connection 2.0mm (wall panel 0.08” .5; connection 0.08”)
Recommended Screen Size : 13” – 42”
Installation : Solid wall, Single stud
Rated Weight Capacity : 44lbs/ 20kg
Max Hole Pattern (mm) : 200×200
VESA Standard (mm) : 75×75, 100×100, 200×100, 200×200
Tilt : -12°~+5°
Swivel : -90°~+90°
Profile : 60-364 mm
Panel Separated : Yes
Freely Tilting : Yes
Curved TV Available : No
Pipe Size : 30x15x1.5mm, 25x15x1.5mm
Dimension (Product) : 364x220x220 mm
Dimension (Package) : 25x25x6 cm
Weight : Approx. 1.8kg

Package includes:

1 x Brateck LDA21-223 TV Monitor Mount, with screws & fittings
*For non-VESA monitor, add option for XMA-01 VESA adapter kit (Suitable for 13 ~ 27)

WARRANTY:

*1-month, strictly for manufacturing defect only
