Description

To address the gap in the niche market of heavy-duty large-sized TV wall mounts, the LP73-69F Affordable Heavy-Duty TV Wall Mount is a reasonable solution. A stiffener structure levels the weight capacity up to 120kg/264lbs to firmly hold 60’’~120’’ TVs. Ample space in the center is perfect for installing the socket outlet and concealing all the messy cables. A quick-release spring lock allows TV removal quick and easy and only takes seconds to install. Choose LP73-69F to grasp more market share quickly!

FEATURES

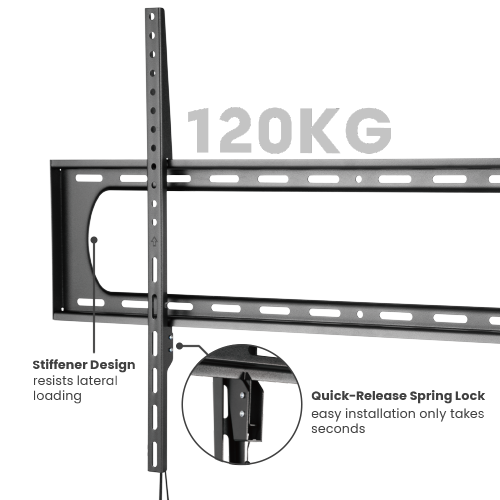

• Heavy-Duty Construction: provides extra strength and durability

• Open Architecture: provides increased ventilation and easier access to wires

• Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy

• Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)

SPECIFICATIONS

Product Category: Fixed TV Wall Mount

Rank: Standard

Material: Steel

Surface Finish: Powder Coating

Color: Fine Texture Black

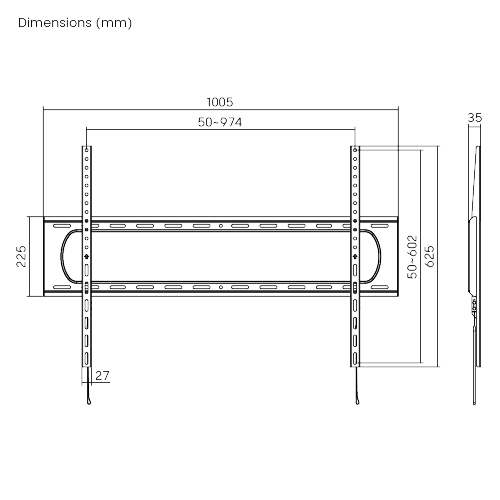

Dimensions & Build

• Product Dimensions: 35 × 1005 × 625 mm

  (1.4" × 39.6" × 24.6")

• Profile (Distance from Wall): 35 mm (1.4")

• Metal Sheet Thickness:

  • Bracket Arm: 2.0 mm (0.079") cold-rolled steel

  • Wall Plate: 2.0 mm (0.079") cold-rolled steel

TV Compatibility

• Fit Screen Size: 60" – 120"

• Fit Curved TV: Yes

• Mounting Pattern: VESA & Universal

• VESA Compatible:

  50×50 up to 900×600 mm

• Max Mounting Hole Distance: 974 × 602 mm

Load & Strength

• Weight Capacity: 120 kg (264 lbs)

• Strength Tested: 4× load test approved

Installation

• Installation Type:

  • Solid Wall

  • Double Stud (406 mm / 450 mm / 600 mm spacing)

• Panel Type: Detachable Panel

• Wall Plate Type: Fixed Wall Plate

Features

• Direction Indicator: Yes

• Cable Management: No

• AV Component Shelf: No

• Anti-Theft: No
