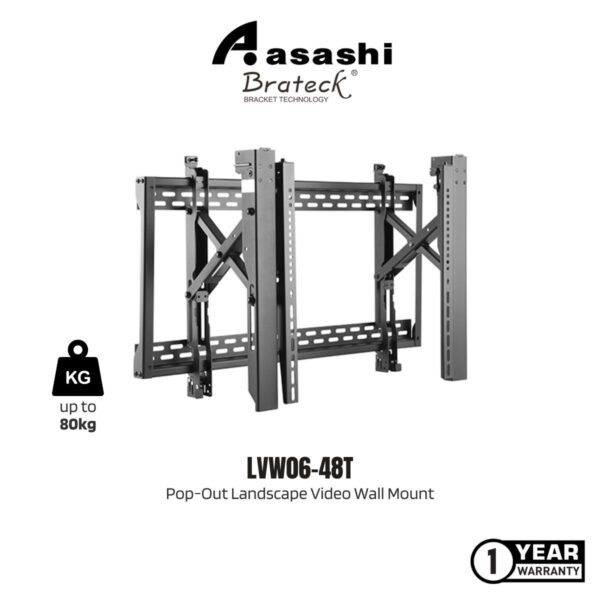

Brateck LVW06-48T Pop-out extension provides quick access for installation and maintenance 45″-80″ LED, LCD flat panel TVs

👁 Currently 35 people are viewing this product.

Fit screen size: 45” – 80”
Max. VESA 800 x 400
Max. Weights: 80kgs

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

The LVW06-48T is an interactive mounting solution for professional video wall setup. Multi-dimensional micro adjustment enables precision alignment of the video wall configuration including depth, height and tilt. It features a quick-release pop-out mechanism for easy installation and maintenance. Quick-release latch keeps displays in place via activating lock & unlock mode. Anti-theft can be achieved with additional padlock (padlock not included). With load capacity of 70kg/154lbs and maximum VESA 800x400mm, it is the perfect solution for mostly large display panels to be placed at public and commercial area.

PRODUCT HIGHLIGHTS

– Pop-Out feature ease installation and maintenance

– Precise Alignment for setup of seamless digital signage

– Quick-Release Latch locks or unlocks the display in place

– Pop-Out Lock System ensures safety by reducing the possibility of accidental pop-outs

– Anti-Theft Locking feature for additional security, preventing any unwanted removal (extra padlock required)

– Fit most 45”~80” display panels

– Support display panels’ weight up to 154lbs/ 70kg

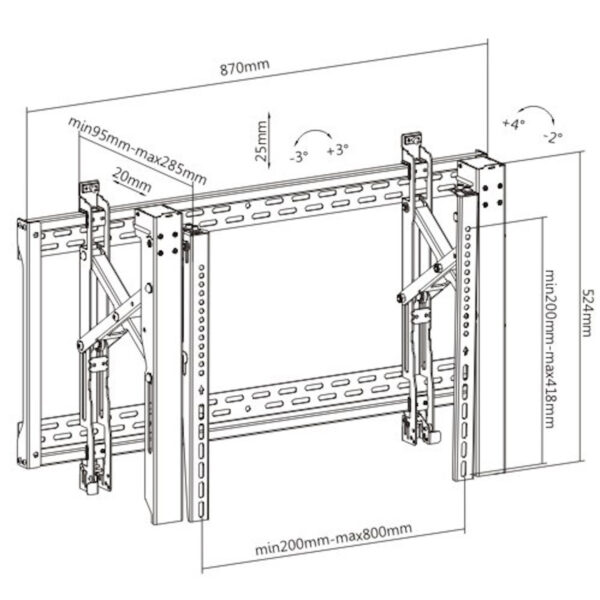

Technical Data

Type	Wall
Function	Video wall system
Mounting Pattern	Universal
Material	Steel
Thickness	2.0 mm
Surface Finish	Powder Coating
Recommended Screen Size	45” – 80”
Installation	Solid wall
Rated Weight Capacity	154lbs/ 70kg
Max Hole Pattern	800×400 mm
VESA Standard (mm)	200×200, 300×200, 300×300, 400×200, 400×300, 400×400, 600×400, 800×400
Tilt	-2°~+4°
Level Adjustment	-3°~+3°
Fine Adjustment (Depth/Height)	20mm/25mm (0.79”/0.98”)
Pop-out Extension	95~285mm (3.7”~11.2”)
Anti-theft	Yes (Padlock is required)
Direction Indicator	Yes
Dimension (mm)	870 x 524 x (95~285)
Package Dimension	95x28x14 cm
Weight	Approx. 11.8kg
