Technical Specifications

General

• Case Size: Super-Tower

• Material: Steel, Tempered Glass

• Color: Black

• Weight: 37.35 kg

• Warranty: 2 Years

Motherboard Support

• Supported Sizes: Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-EEB

• Reverse Connector Motherboard Support: Yes

Dimensions

• Height: 698 mm

• Length: 698 mm

• Width: 307 mm

Drive Bays

• Internal 3.5" Bays: 5

• Internal 2.5" Bays: 6

Expansion & Power

• Expansion Slots: 8 Horizontal (or 4 Vertical) + 2 Vertical (For Secondary Motherboard)

• Power Supply Support: ATX

• Maximum PSU Length: 225 mm

• Vertical GPU Mount: Supported (Riser Card Sold Separately)

Clearances

• Maximum GPU Length: 580 mm

• Maximum CPU Cooler Height: 180 mm

• Cable Routing Space: 76 mm

Cooling Support

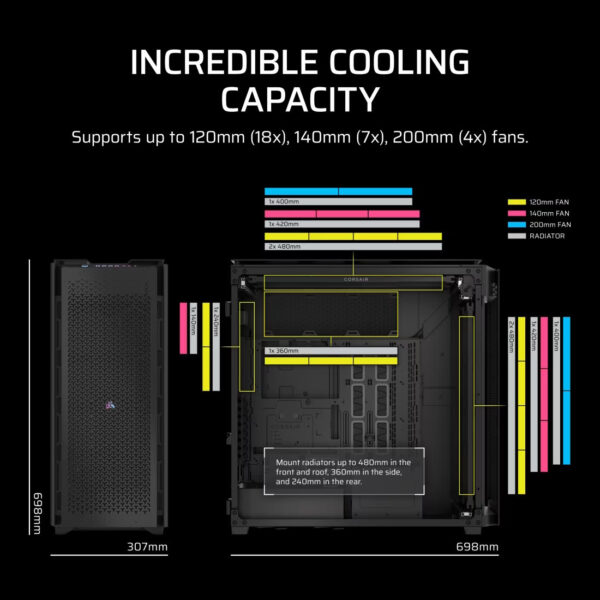

• Radiator Compatibility: 480 mm, 420 mm, 400 mm, 360 mm, 280 mm, 240 mm, 200 mm, 140 mm, 120 mm

• Radiator Support – Top: 480 mm, 420 mm, 400 mm, 360 mm, 280 mm, 240 mm, 200 mm, 140 mm, 120 mm

• Radiator Support – Front: 480 mm, 420 mm, 400 mm, 360 mm, 280 mm, 240 mm, 200 mm, 140 mm, 120 mm

• Radiator Support – Side: 360 mm, 240 mm

• Radiator Support – Rear: 240 mm, 140 mm, 120 mm

• Radiator Support – Bottom: None

Fan Support

• Top: 8 × 120 mm, 3 × 140 mm, 2 × 200 mm

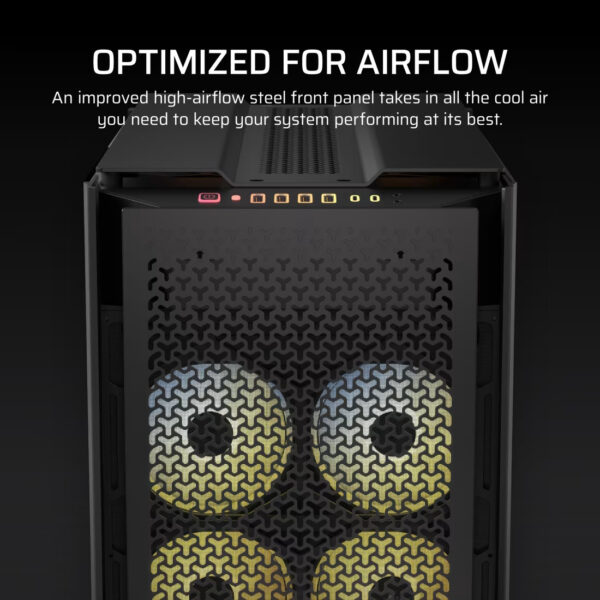

• Front: 8 × 120 mm, 3 × 140 mm, 2 × 200 mm

• Side: 3 × 120 mm

• Rear: 2 × 120 mm, 1 × 140 mm

• Bottom: None

Included Fans

• No fans included

Cooling Features

• Compatible Liquid Coolers: H60, H100, H115, H150, H170, NAUTILUS, TITAN

• Dust Filtration: Yes

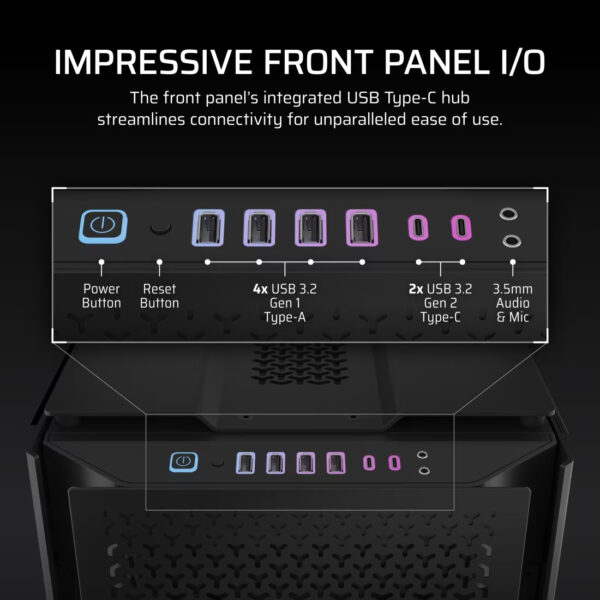

Front I/O Ports

• 2 × USB 3.2 Gen 2 Type-C

• 4 × USB 3.2 Gen 1 Type-A

• 1 × Audio In/Out

Front I/O Motherboard Connections

• 1 × HD Audio

• 1 × USB Type-E

• 1 × Supplemental SATA Power

• 1 × F_PANEL

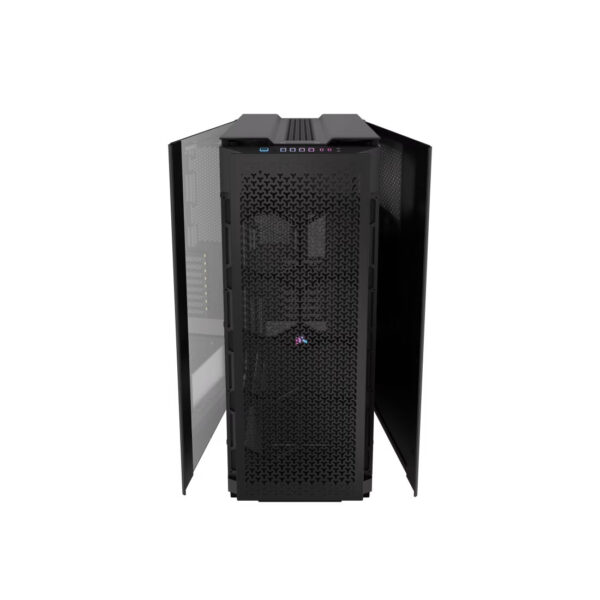

Panels & Features

• Left Side Panel: Tempered Glass

• Right Side Panel: Steel
