All assemblies are machine polished providing highest quality

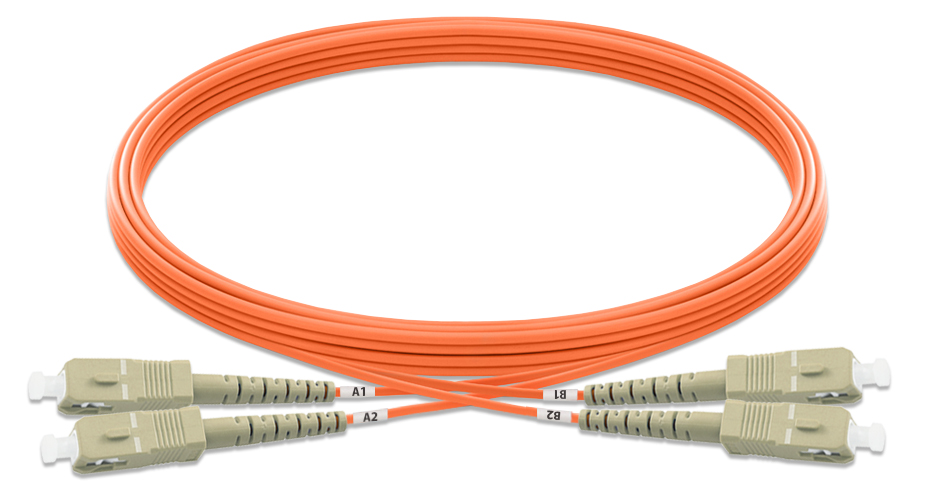

Multimode 50/125um 1G OM2 fiber optic cables
Insertion loss per connection: 0.15dB typical; 0.30dB maximum
Patch cords are tested to support network transmission speeds up to 1 Gb/s for link lengths up to 300 meters with an 850nm source
Technical Properties
Connector type: SC – SC
Insertion: Multimode ≤ 0.15dB typical / ≤ 0.30dB maximum
Return Loss: PC ≥ 35dB
Jacket Type: LSZH
Polish Type: PC
Operating Temperature: -40 to +85°C
Flammability: IEC 60332 Part 3
Benefits
Low insertion loss / Low reflectance
Flawless end face
Excellent environmental stability and reliability
(All specifications are in accordance to GR-326-CORE)

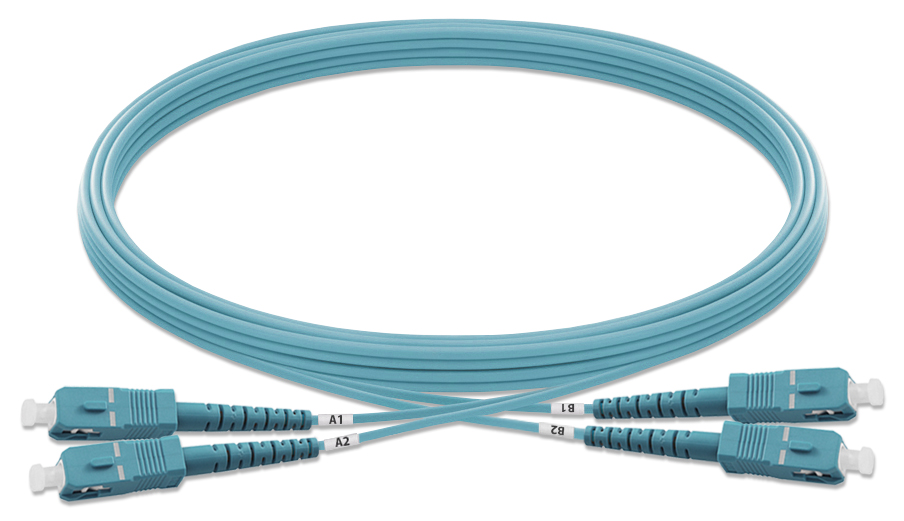

SC-SC OM3
Features
All assemblies are machine polished providing highest quality
Multimode 50/125um 10G OM3 fiber optic cables
Insertion loss per connection: 0.15dB typical; 0.30dB maximum
Patch cords are tested to support network transmission speeds up to 10 Gb/s for link lengths up to 300 meters (OM3) / 550 meters (OM4) with an 850nm source per IEEE 802.3ae 10 GbE standard
Technical Properties
Connector type: SC – SC
Insertion: Multimode ≤ 0.15dB typical / ≤ 0.30dB maximum
Return Loss: PC ≤ 35dB
Jacket Type: LSZH
Polish Type: PC
Operating Temperature: -40 to +85°C
Flammability: IEC 60332 Part 3

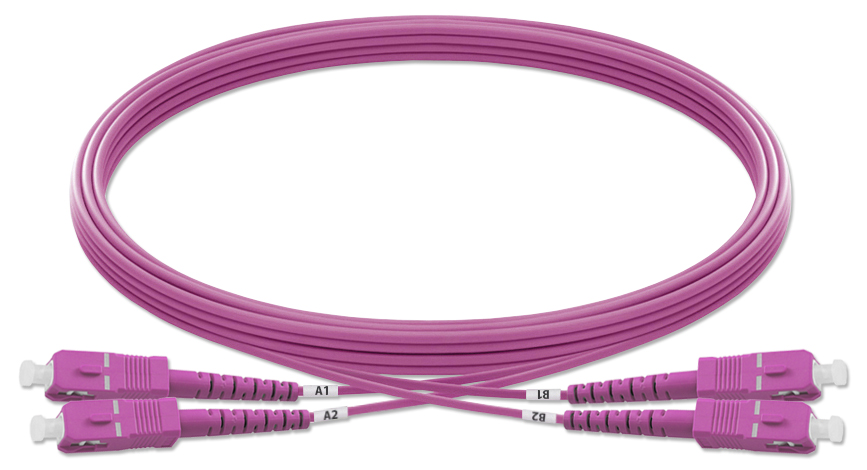

SC-SC OM4
Features
All assemblies are machine polished providing highest quality
Multimode 50/125um 10G OM3 fiber optic cables
Insertion loss per connection: 0.15dB typical; 0.30dB maximum
Patch cords are tested to support network transmission speeds up to 10 Gb/s for link lengths up to 300 meters (OM3) / 550 meters (OM4) with an 850nm source per IEEE 802.3ae 10 GbE standard
Technical Properties
Connector type: SC – SC
Insertion: Multimode ≤ 0.15dB typical / ≤ 0.30dB maximum
Return Loss: PC ≥ 35dB
Jacket Type: LSZH
Polish Type: PC
Operating Temperature: -40 to +85°C
Flammability: IEC 60332 Part 3

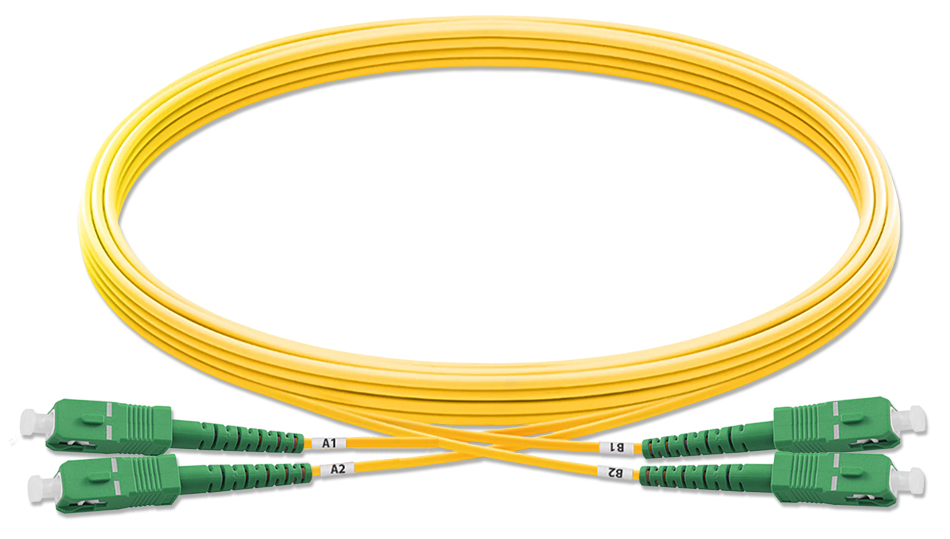

SC-SC OS2
Features
Connector types available LC/SC/ST/FC/MTRJ/MTP/MPO
100% end face inspected & compliance with GR-326-CORE
High-quality, machine polished connectors for consistent low loss performance
Short buffer style connector boots for ease of fiber management in high density applications
Technical Properties
Connector types: SC – SC
Jacket: LSZH
Insertion Loss: Singlemode: ≤ 0.15dB typical / ≤ 0.30dB maximum
Return Loss Singlemode: APC ≥ 35dB / UPC ≥ 35dB / PC ≥ 35dB
