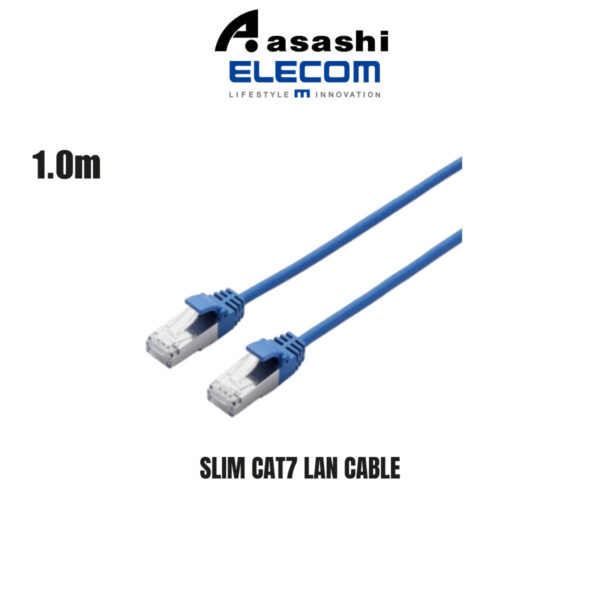

Elecom Slim CAT7 LAN Cable, 1.0m – Blue

This slim Cat7 LAN cable is compliant with 10GBASE-T 10 Gigabit Ethernet standards, providing a high-speed, stable network environment. With a diameter of just 4.1mm, it's ideal for wiring in tight spaces.

Product Features

Category 7 Compliant LAN Cable

High-Speed 10GBASE-T Support

Compatible with 10GBASE-T, the next-generation 10 Gigabit Ethernet standard, ideal for high-speed optical communications.

Supports High Frequency Bands

Operates up to 600 MHz, more than twice the bandwidth of Category 6 cables, ensuring resistance to noise and a stable high-speed network environment.

Stable Data Transfer

Maintains consistent data transfer speeds for 1000BASE-TX, 1000BASE-T, and 100BASE-T environments.

Double Shielding Structure

Equipped with double shielding to prevent communication errors (alien crosstalk) caused by noise interference between adjacent cables, common in high-speed networks.

Enhanced EMI Protection

Provides superior shielding compared to conventional cables, making it suitable for installation in medical facilities, machine rooms, and OA rooms where electromagnetic interference (EMI) countermeasures are needed.

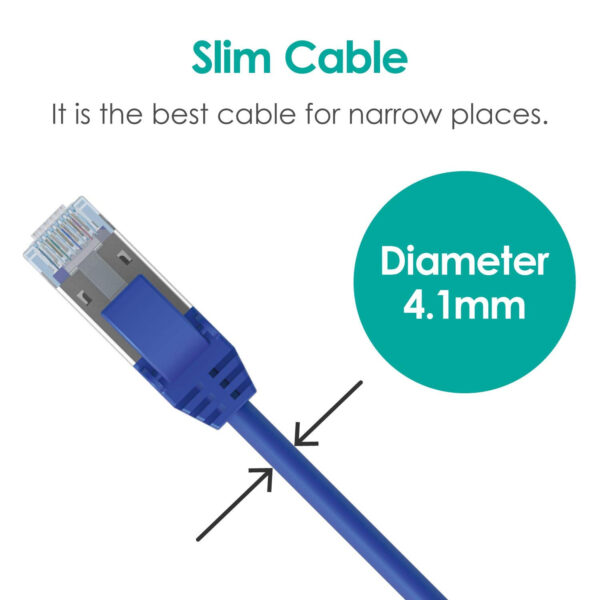

Slim and Flexible Design

Slim cable with a diameter of 4.1 mm, ideal for wiring in tight spaces.

Twisted pair specification reduces cross-interference, providing flexibility and easy handling during installation.

Flame-Retardant Outer Sheath

Outer jacket made of flame-retardant material conforming to JIS C 3005, reducing the risk of fire spread.

ISO/IEC 11801 Class F Compliance

Cable is compliant with ISO/IEC 11801 Class F (Cat 7).

Note: Only the cable is Class F compliant; RJ-45 plug is included separately.

EU RoHS Compliant

Meets EU RoHS Directive restrictions on 10 hazardous substances, including lead (Pb), mercury (Hg), cadmium (Cd), hexavalent chromium (Cr6+), PBB, PBDE, DEHP, BBP, DBP, and DIBP.

Specification

Color: Blue

Interface: RJ-45 Connector

Environmental Considerations: EU RoHS Directive compliant (10 substances)

Standard: Cat7 compliant (10BASE-T / 100BASE-TX / 1000BASE-T / 1000BASE-TX / 10GBASE-T)

Note: Cat7 compliance applies only to the cable; RJ-45 connector included.

Transmission Speed: 10 Gbps

Transmission Bandwidth: 600 MHz

Cable Length: Approximately 1 m (*Not including connector)

Cable Thickness: Approximately 4.1 mm

Number of Cores: 8-core

Wiring Method: Straight connection

Twisted Pair Cable: Yes

Shield: Yes (ScTP / double foil tape shielding)

Cross Member: No

Outer Sheath (Coating) Material: PVC

With Length Mark: No

Conductor Configuration: Stranded wire (30 AWG)

Connector Presence: With connectors on both ends

Molded Connector: Yes

Slim Connector: Yes

Connector with Nail Breakage Prevention Cover: Yes

Cable Winding Function: No

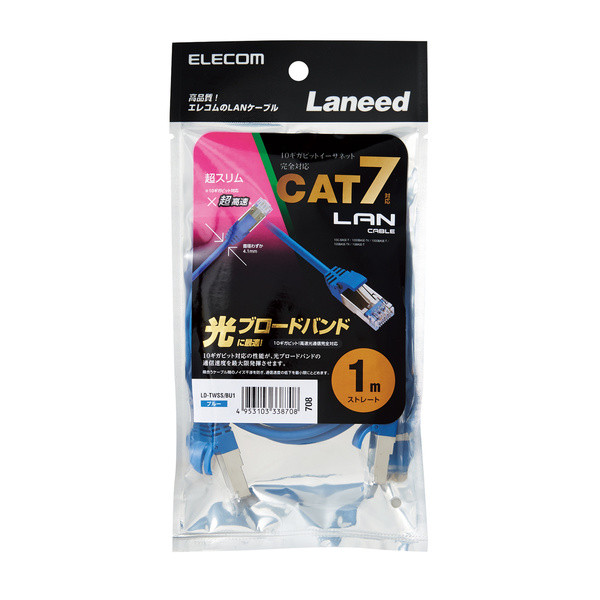

Package Type: Aluminum foil bag + sticker

Connectors That Won’t Break: No

PoE Support: No
