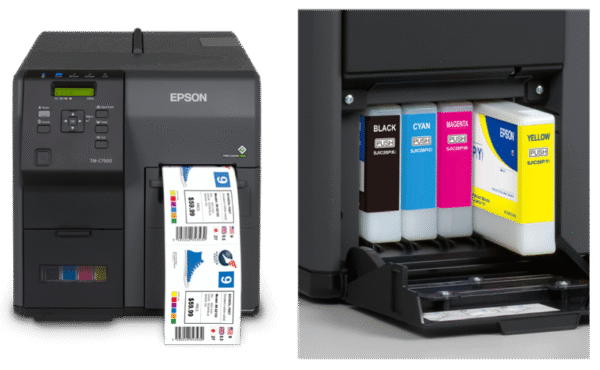

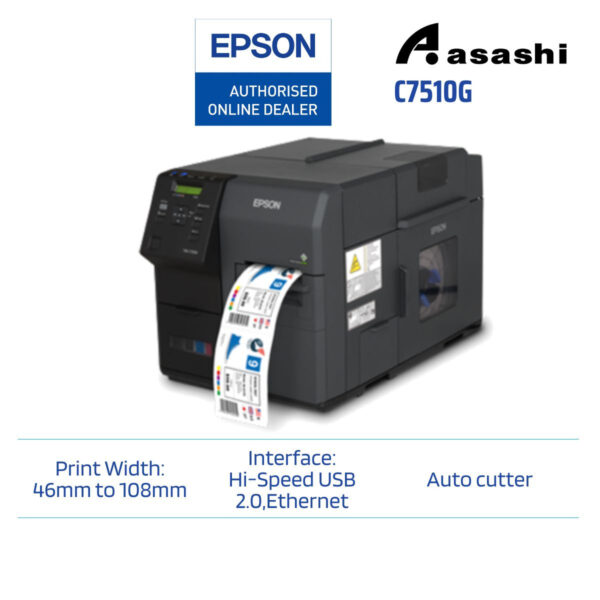

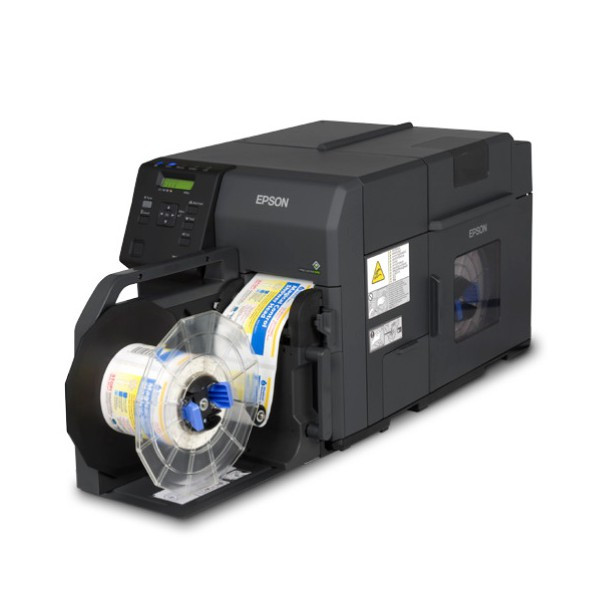

Epson ColorWorks C7510G Inkjet Color Label Printer (C31CD84361)



Printing Technology:

---

Technolgy:PrecisionCore TFP® with Nozzle Verification TechnologyColour:Four-colour printing, individual ink cartridge (UltraChrome™ DL pigment ink: C, M, Y, K)

Ink Cartridge:

---

Colour:Cyan, Magenta, Yellow, BlackModel:SJIC31P(C), SJIC31P(M), SJIC31P(Y), SJIC31P(K)

Printing:

---

Print Resolution:1200 x 600 dpi (true resolution)Max. Print Width:4.1" (104mm) max.Max. Print Speed:300mm/sec or 150mm/sec

Connectivity:

---

Interface:USB 2.0 High-Speed, Ethernet 10/100 BASE-T, Ethernet 1000BASE-T

Print Fonts:

---

Print Fonts:Fixed font: Sans serif, OCR-A, OCR-B, Symbol. Scalable font: Sans serif. User can download scalable fonts to the printer

Barcode Font (Printer Driver Built-in):

---

Barcode:UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar ExpandedTwo-dimensional Code:PDF417, QR Code, GS1 DataBar Stacked, GS1 Omnidirectional, GS1 DataBar Expanded Stacked, DataMatrix, Aztec Code, MicroPDF417, Micro QR Code, Maxi Code

Media Source:

---

Media Source:Roll-fed, Fanfold

Media Type:

---

Media Type:Plain, Matte, Glossy, Synthetic

Paper Specifications:

---

External Roll Diameter:Max. 203.2mmPaper Core External Diameter:Internal Diameter: 76.2 ± 0.5mm
External Diameter: 82.2mm or moreNumber Of Folds:Fanfold Paper: 750 or LessWinding Direction:Face Out

Autocutter Life:

---

Die-cut Label:Plain, Matte, Glossy: 1,500,000 cuts
Synthetic: 500,000 cutsFull Page Label:Plain: 750,000 cuts
Matte: 200,000 cuts
Glossy: 300,000 cuts
Synthetic: 100,000 cuts

Temperature / Humidity:

---

Printing:5 to 35°C / 20 – 80% RH Humidity (no condensation)Storage:-20 to 60°C / 5 – 85% RH Humidity (no condensation)

Overall Dimensions:

---

Overall Dimensions:597 x 391 x 394mm

Mass:

---

Mass:Approx. 37.0kg (81.57lb) – Printer (without consumable)

Power Supply:

---

Power Supply:Dedicated AC Adapter

Power Consumption:

---

Standby:4.1 – 4.4WPrinting:50 – 60W (average printing)

Rated Voltage:

---

Rated Voltage:AC 100 – 240 VAC

Rated Frequency:

---

Rated Frequency:50 – 60Hz

EMC Standards:

---

EMC Standards:VCCI Class A, FCC Class A, ICES-003 Class A, CE Marking, AS/NZS CISPR22 Class A, CCC, KC, EAC, Ukraine EMC

Safety Standards:

---

Safety Standards:UL60950-1/CSA C22.2 No.60950-1, EN60950-1, CCC, KC, EAC, BSMI, Ukraine Safety Standard

Operating System:

---

Operating System:Microsoft Windows 8.1 (32-bit, 64-bit), Windows 8 (32-bit, 64-bit), Windows 7 SP1 (32-bit, 64-bit), Windows Vista SP2 (32-bit, 64-bit), Windows XP SP3 (32-bit), Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008 (32-bit, 64-bit), Windows Server 2003 R2 (32-bit)

Fanfold:

---

Die-cut Label (Gap):Label Width: 46 ~ 108mm
Backing Paper Width: 50 ~ 112mm
Thickness: Plain Label, Matte Label: 0.161 ~ 0.164mmDie-cut Label (BM):Label Width: 46 ~ 108mm
Backing Paper Width: 50 ~ 112mm
Thickness: Plain Label, Matte Label: 0.161 ~ 0.164mmFull-page Label (no BM):Label Width: 46 ~ 108mm
Backing Paper Width: 50 ~ 112mm
Thickness: Plain Label, Matte Label: 0.161 ~ 0.164mm

Roll:

---

Full-page Label:(BM/no BM) Label Width: 46 ~ 108mm
(BM/no BM) Backing Paper Width: 50 ~ 112mm
(BM/no BM) Thickness: Plain Label, Matte Label, Synthetic Label: 0.129 ~ 0.236mm
(BM/no BM) Thickness: Glossy Label: 0.167 to 0.182mmDie-cut Label (gap):Label Width: 46 ~ 108mm
Backing Paper Width: 50 ~ 112mm
Thickness: Plain Label, Matte Label, Synthetic Label: 0.129 ~ 0.236mm
Thickness: Glossy Label: 0.167 to 0.182mmDie-cut Label (BM):Label Width: 46 ~ 108mm
Backing Paper Width: 50 ~ 112mm
Thickness: Plain Label, Matte Label, Synthetic Label: 0.129 ~ 0.236mm
Thickness: Glossy Label: 0.167 to 0.182mm

Interface:

---

Interface:USB 2.0 High-Speed, Ethernet 10/100 BASE-T, Ethernet 1000BASE-T
