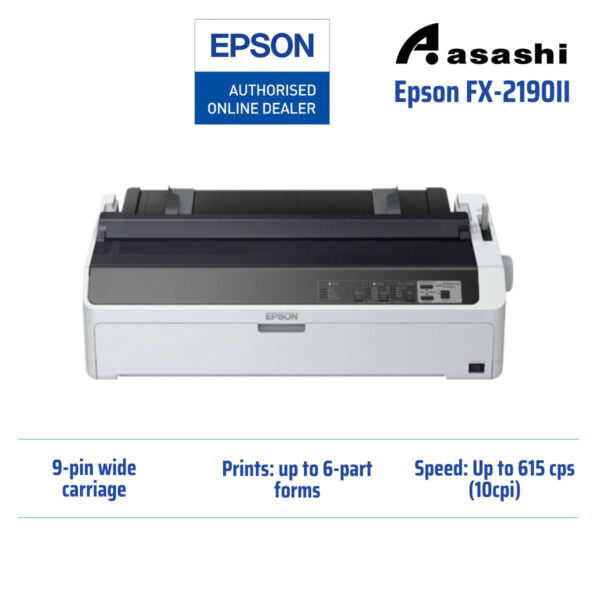

Epson FX-2190II 9-pin, 136 columns, 612cps (high speed draft@10cpi), 1+6 copies, Parallel, USB Port Printer



Unparalleled Productivity

Boost productivity with fast print speeds of up to 615 cps (10 cpi) and 128 kb memory buffer.



Rugged Reliability

Enjoy cost savings, superior print quality and minimal downtime with a MTBF of up to 25,000 POH.

Printing Technology:

---

Control Panel:6 switches and 10 LEDs

Print Direction:Bi-direction with logic seeking

Printing Method:Impact dot matrix

Number of Pins in Head:9 pins

Control Code:ESC/P2, IBM PPDS

Reliability:

---

Printhead Life:400 million strokes / wire

Mean Print Volume Between Failure (MVBF):52 million lines (except print head)

Mean Time Between Failure (MTBF):25,000 Power On Hours (POH) (25% Duty)

Print Characteristics:

---

Bitmap Fonts:Epson Draft: 10, 12, 15 cpi

Scalable Fonts:Epson Roman / Epson Sans Serif

Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

Paper Media:

---

Cut Sheet (Single Sheet):Entry: Front
Length: 100 – 420 mm | (3.9 – 16.5”)
Width: 100 – 420 mm | (3.9 – 16.5”)
Thickness: 0.065 – 0.14 mm | (0.0025 – 0.0055”)
Entry: Rear
Length: 100 – 420 mm | (3.9 – 16.5”)
Width: 100 – 420 mm | (3.9 – 16.5”)
Thickness: 0.065 – 0.14 mm | (0.0025 – 0.0055”)

Cut Sheet (Multi-part Sheet):Entry: Front
Length: 100 – 420 mm | (3.9 – 16.5”)
Width: 100 – 420 mm | (3.9 – 16.5”)
Thickness: 0.12 – 0.46 mm | (0.0047 – 0.018”)
Entry: Rear
Length: 100 – 420 mm | (3.9 – 16.5”)
Width: 100 – 420 mm | (3.9 – 16.5”)
Thickness: 0.12 – 0.46 mm | (0.0047 – 0.018”)

Continuous Paper (Single Sheet / Multi-part):Copies:
Original + 4 copies
Entry: Front / Rear / Bottom
Length: 101.6 – 558.8 mm | (4.0 – 22.0”)
Width: 101.6 – 406.4 mm | (4.0 – 16.0”)
Thickness: 0.065 – 0.46 mm | (0.0025 – 0.018”)

Envelope (No.6):Entry: Rear
Length: 92 mm | (3.6”)
Width: 165 mm | (6.5”)
Thickness: 0.16 – 0.52 mm | (0.0063 – 0.0205”)

Envelope (No.10):Entry: Rear
Length: 105 mm | (4.1”)
Width: 241 mm | (9.5”)
Thickness: 0.16 – 0.52 mm | (0.0063 – 0.0205”)

Label (Base Sheet):Entry: Buttom
Length: 101.6 – 558.8 mm | (4.0 – 22.0”)
Width: 101.6 – 406.4 mm | (4.0 – 16.0”)
Thickness: 0.16 – 0.19 mm | (0.0063 – 0.0075”)

Card:Entry: Front / Rear
Length: 100 – 148 mm | (3.9 – 5.8”)
Width: 100 – 148 mm | (3.9 – 5.8”)
Thickness: 0.22 mm | (0.0087”)

Roll Paper:Entry: Rear
Diameter: 127mm | (5”)
Width: 216 mm | (8.5”)
Thickness: 0.07 – 0.09 mm | (0.0028 – 0.035”)

Passbook:Entri: Depan/Belakang
Diameter: 127mm | (5”)
Lebar: 216 mm | (8.5”)
Ketebalan: 0.07 – 0.09 mm | (0.0028 – 0.035”)

Line Spacing:4.23mm (1/6”) or programmable in increments of 0.059mm (1/432”)

General:

---

Operating Systems:Printer Driver: Microsoft Windows XP / Vista / 7 / 8 / 10

Utility
Epson Status Monitor 3: Microsoft Windows XP / Vista / 7 / 8 / 10
Epson Setting Utility: Microsoft Windows XP / Vista / 7 / 8 / 10

Consumables:

---

Ribbon Cartridge Black:Standard: Fabric Ribbon Cartridge (Black)
Ribbon Life: Approx. 12 million Characters^*1

Environmental Conditions (Operating):

---

Temperature:5 – 35 °C^*2

Humidty:10 – 80% RH^*2

Acoustic Noise:

---

Acoustic Noise:55 dB

Input Data Buffer:

---

Input Data Buffer:128KB

Interface:

---

Interface:USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported)

Printable Columns:

---

Pitch:10cpi: 136 cpl
