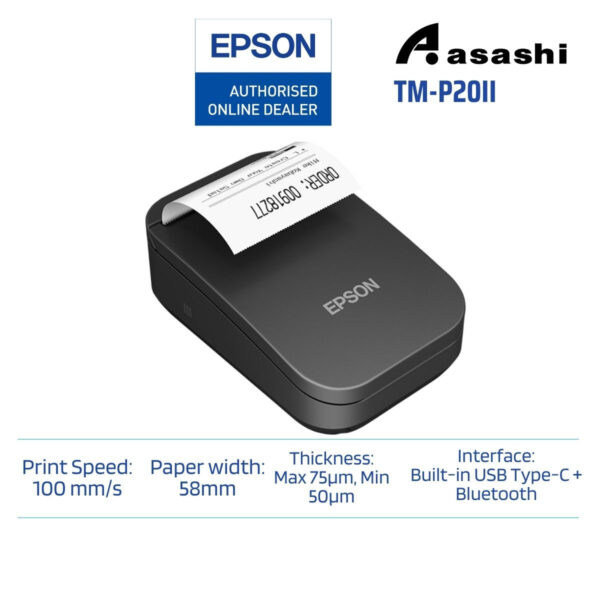

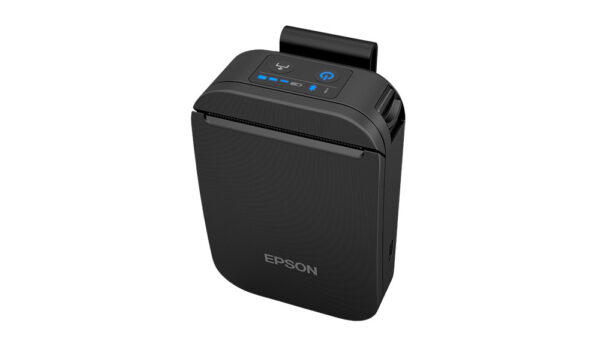

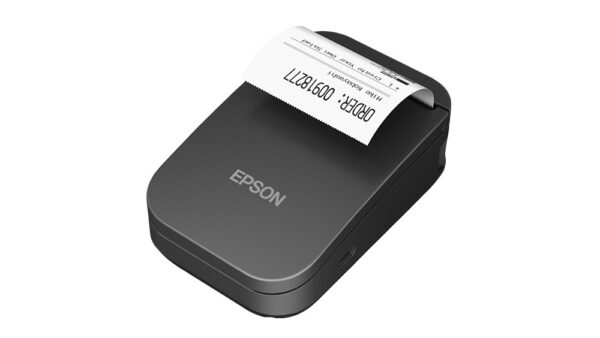

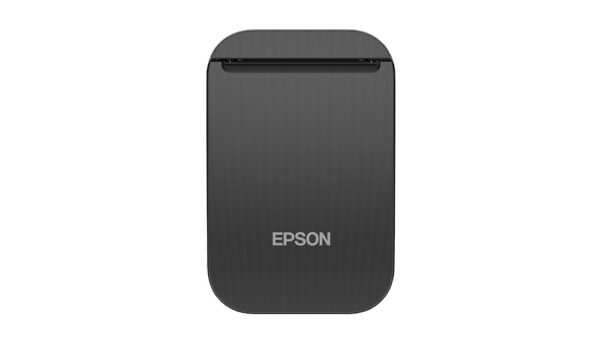

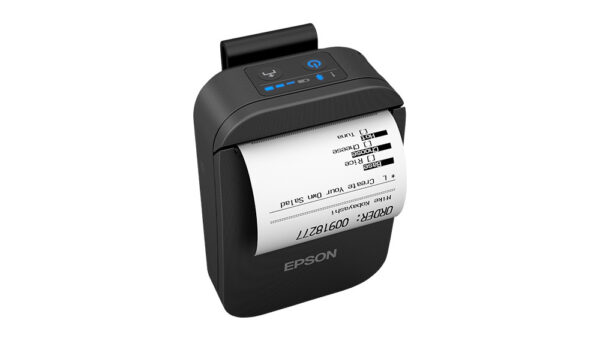

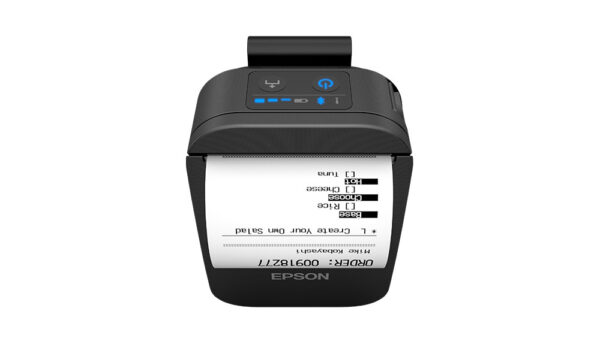

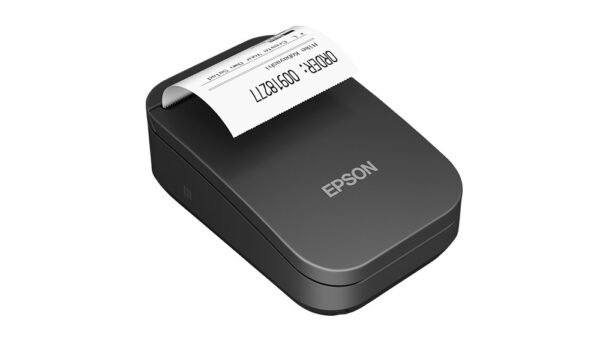

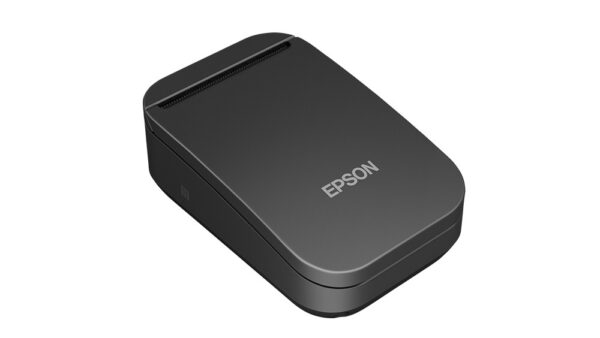

Epson P20II USB Type-C and Bluetooth Mobile Pos Printer

Portable and Lightweight
Ultra compact, easy for users to wear (belt clip included); helps prevent carry fatigueRobust Design
IP54-rated enclosure is water- and dust-resistant; holds up to rigorous use, with a drop rating of up to 2.1 meters

Long-lasting Battery Life
Up to 27 hours on a full charge² (battery and USB-C cable included)

Fast Battery Charging Capability
Fully charges as fast as 3 hours⁴(charger sold separately)

Versatile Connectivity
Wireless connectivity options (Wi-Fi 5 or Bluetooth 5.0) to provide connections to a wide variety of devices and networks

Exceptional Print Quality and Ultra Fast Print Speed
Quickly produce sharp and crisp text, barcodes and logos at up to 100 mm/sec

Modern Design
Sleek design suited to complement your business

Enhance Your Printing with Accessories
Choose from a wide range of optional accessories, such as single or quad battery charger, spare battery, belt strap, shoulder strap and soft carrying case (each sold separately)

Paper Saving Mode
Helps reduce cost by decreasing paper usage

What’s in the box:



• Belt Clip
• Battery
• USB Cable (Type-C to Type-C)
• Roll Paper
• Setup Guide



General Information:

---

Printer Driver:Windows Driver (APD), OPOS, OPOS.NET, JavaPOS(Windows, Linux), TM Virtual Port Driver, ePOS SDK (iOS, Android, Javascript)

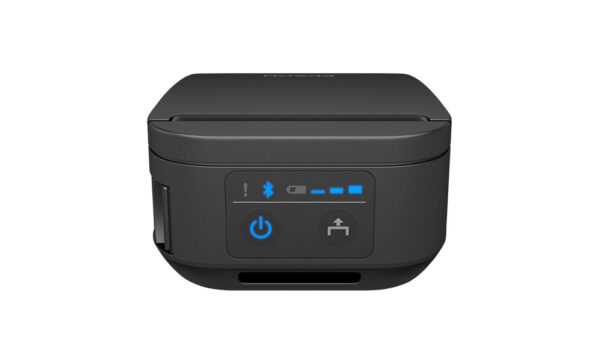

LED Indicators:Blue LED – Power, Battery Level, Interfaces (Bluetooth, Wi-Fi)
Orange LED – Error, Battery Charging

Built-in Feature:Paper Reduction, Status Notification, Server Direct Print

Utility Tools:TM Utility (Android, iOS), TM-P20II/TM-P80II Utility (Windows PC), TM-Print Assistant (Android, iOS), Deployment Tool, Monitoring Tool, Epson WebConfig, TM Bluetooth Connector, Firmware Updater, BmpToRaster, ePOS-Print^*3

Print Font:

---

Font:ANK: 12 x 24 / 9 x 24 (default) / 9 x 17 / 10 x 24 / 8 x 16;
Kanji Font: 24 x 24 / 20 x 24 / 16 x 16;
Special Font: 12 x 24 / 9 x 24;
India Font: Width x 32 / Width x 24

Character Set:95 Alphanumeric, 18 set International, 128 x 43 graphics

Barcode Standards:Bar code: UPC-A, UPC-E, JAN8, EAN8, JAN13, EAN13, ITF, Codabar(NW-7), Code39, Code93, Code128, GS1-128, GS1 DataBar
2D Symbol: PDF417, QR code, Maxi Code, Data Matrix, Aztec, Two-dimensional GS1 DataBar, Composite Symbology

Data Buffer:

---

Data Buffer:Bluetooth: 64 KB
Wi-Fi: 4 KB

Paper:

---

Roll Paper:58 mm (57.5 ± 0.5 mm) × Dia. 18 – 40 mm

Thickness:Max 75μm, Min 50μm

Colour:

---

Colour:Epson Black (EBCK)

Dot / Line:

---

Dot / Line:384 dots

Dot / Inch:

---

Dot / Inch:203 x 203 dpi

Overall Dimension (D x W x H):

---

Overall Dimension (D x W x H):120 x 79 x 46 mm

Easy Setting:

---

Easy Setting:NFC

Interface:

---

Standard:Bluetooth Model: USB-C x1, Bluetooth 5.0
Wi-Fi Model: USB-C x1, Wi-Fi 5.0

Reliability:

---

MTBF:120,000 hours

Printhead Life:50 Km

MCBF:16 million lines

Printer Mechanism Life:10 million lines

IP Protection Rating:IP54

Drop Rating:2.1m

Weight:

---

Weight:Approx. 216g

Power:

---

Battery Life:Bluetooth: 27 Hrs
Wi-Fi: 15 Hrs

Battery Type:Lithium Ion Battery

Charging Port:USB-C*

Charging Rating:5V – 3A: 3 Hrs (10 – 30ºC), 6 Hrs (0 – 10ºC)
5V – 1.5A: 4 Hrs (10 – 30ºC), 8 Hrs (0 – 10ºC)
5V – 900/500mA: 7 Hrs (10 – 30ºC), 14 Hrs (0 – 10ºC)

Languages Support:

---

Printer Languages :ANK + Thai/Viet/India + Simplified Chinese + Traditional Chinese + Korean + Japanese + Unicode (UTF-8)^*1

Printing:

---

Print Speed:100 mm/s

Printing Method:Thermal Line Printing
