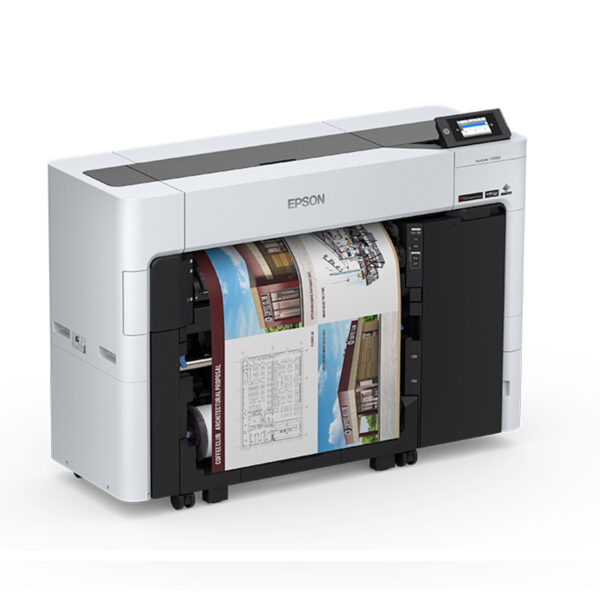

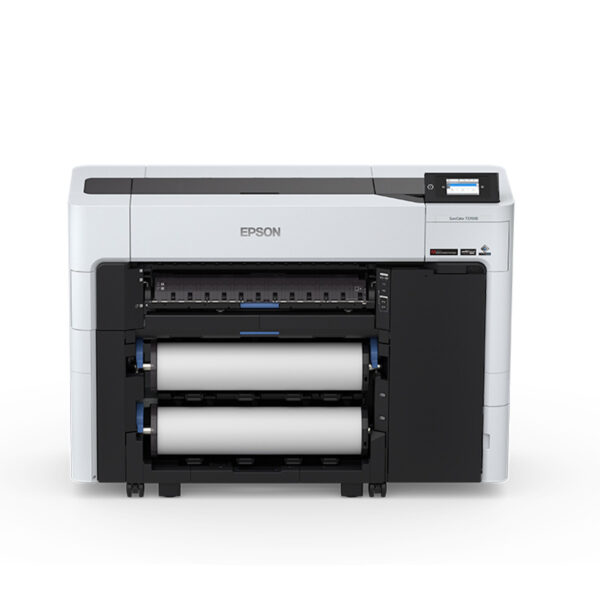

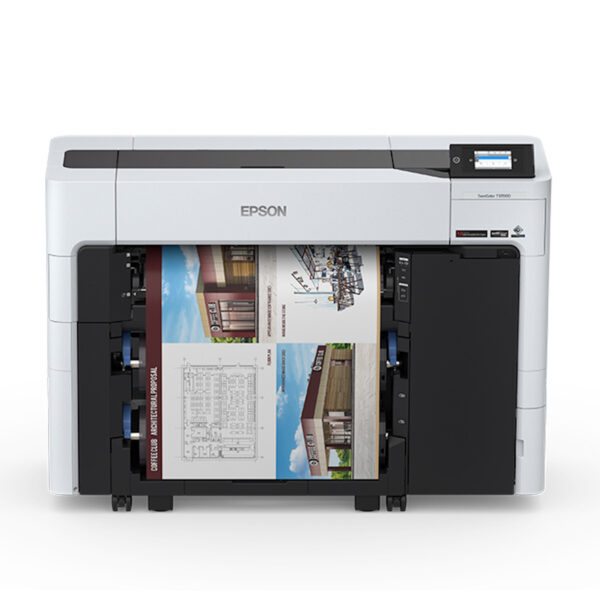

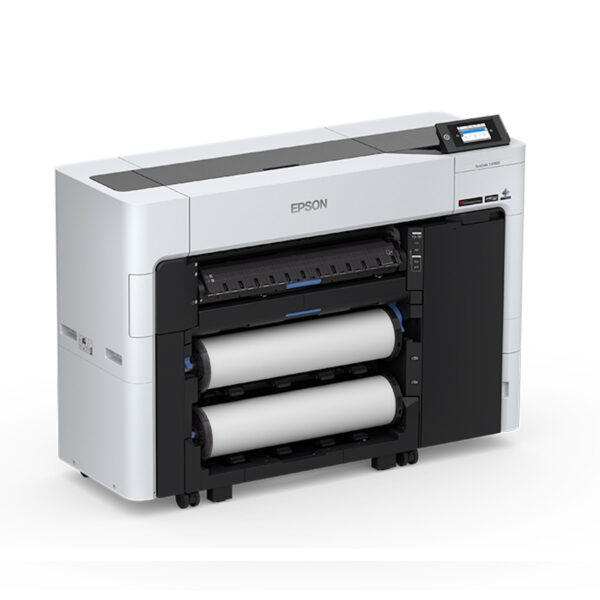

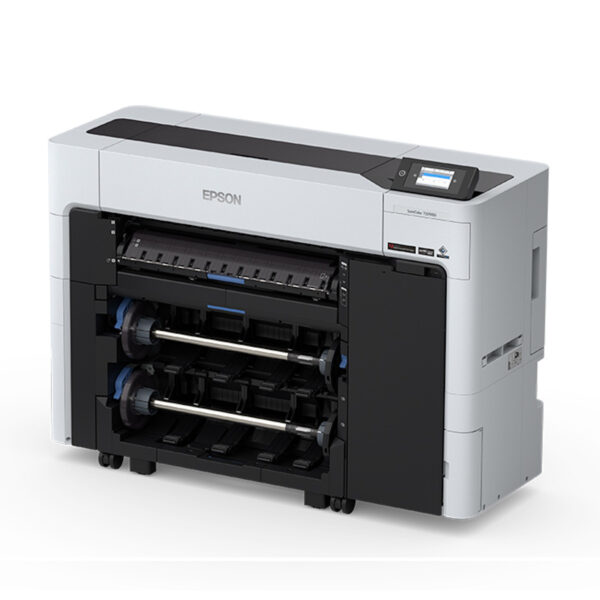

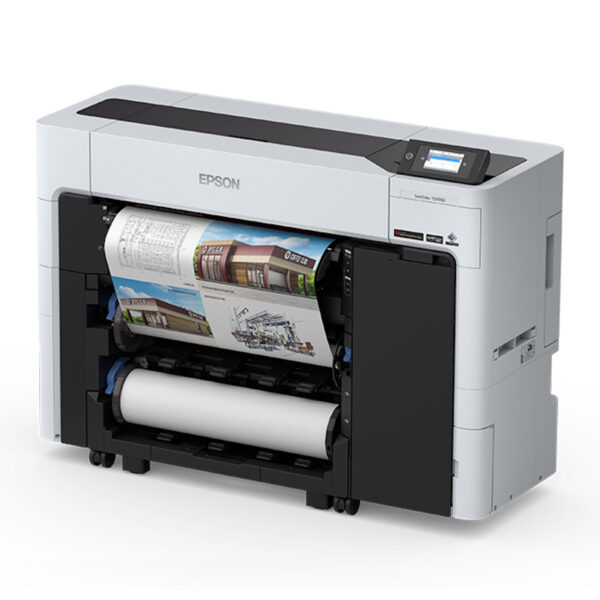

Epson SC-T3730D 24″ /Dual Roll SFP Printer

SUSTAINABLE INNOVATION WITH EXCELLENT SCALABILITY.



Be ready to amplify your ideas and showcase them in spectacular precision with Epson’s new SureColor technical printer series. Equipped with PrecisionCore MicroTFP printheads for precise printing and vivid colour-accurate prints using the UltraChrome XD3 inks. On top of versatile printing capabilities, the printers come equipped with user-friendly functions and secured management for businesses to enjoy a seamless printing process. Get ready to be mesmerised by the exceptional line printing accuracy and top-class efficiency.



• Outstanding print speeds for CAD documents of up to 20s (A1 prints) .

• Improved image quality with 6 colour UltraChrome XD3 inks.

• Higher capacity (110ml/350ml/700ml) ink set available

• Enhanced security with self-encrypting SSD and print authentication

• Full frontal operation with sleek chassis design

• Dual roll for increased non-stop productivity



SPECIFICATION



Consumables

Maintenance

• Maintenance Box: C13S210115

• Borderless Maintenance Box: C13S210116

• Replacement Printer Cutter Blade: C13S210117

110 ml Ink Cartridges

• Cyan: C13T51F200

• Magenta: C13T51F300

• Yellow: C13T51F400

• Photo Black: C13T51F100

• Matte Black: C13T51F800

• Red: C13T51FF00

350 ml Ink Cartridges

• Cyan: C13T50Y200

• Magenta: C13T50Y300

• Yellow: C13T50Y400

• Photo Black: C13T50Y100

• Matte Black: C13T50Y800

• Red: C13T50YF00

700 ml Ink Cartridges

• Cyan: C13T50R200

• Magenta: C13T50R300

• Yellow: C13T50R400

• Photo Black: C13T50R100

• Matte Black: C13T50R800

• Red: C13T50RF00

---

Printer Width

• Maximum Printer Width: 24 inches

---

Connectivity

Interfaces

• USB 3.0

• Ethernet (100BASE-TX / 1000BASE-T)

• Wi-Fi (IEEE 802.11 b/g/n)

Mobile & Wireless Printing

• Epson Smart Panel

• Apple AirPrint

• Wi-Fi Direct (Simple AP, up to 8 device connections)

USB Direct Printing

• PDF

• TIFF

• JPEG

• HP-GL/2

• HP RTL

Printer Languages

• ESC/R Raster

• HP-GL/2

• HP RTL

• Adobe PostScript 3

• Adobe PDF 1.7

---

Memory

• Standard Memory: 4 GB

• Storage: 960 GB (Optional SSD)

---

Control Panel

• Display: 4.3" Touch Screen

---

Printing

Printhead

• Type: PrecisionCore MicroTFP Printhead

Nozzle Configuration

• 9,600 nozzles

  • 400 nozzles × 24 channels × 1 head

• Maximum Print Resolution: 2,400 × 1,200 dpi

• Minimum Ink Droplet Size: 3.5 pl

Print Speed

• A1 Size – Plain Paper:

  • Draft: 16 sec

  • Speed: 21 sec

  • High Quality: 111 sec

• Premium Glossy Photo Paper (170 gsm):

  • Speed: 65 sec

  • Quality: 111 sec

  • Max Quality: 245 sec

• CAD A1 Size (Plain Paper):

  • 300 × 600 dpi, Line Draw / Draft: 20 sec

  • 600 × 600 dpi, Line Draw / Speed: 27 sec

• Poster A1 Size (Plain Paper, 300 × 600 dpi):

  • Epson Vivid / Speed: 21 sec

Line Accuracy

• ±0.1% or ±0.26 mm

Minimum Line Width

• 0.08 mm

• 0.02 mm

---

Margins

• Roll Paper:

  • Top / Bottom: Minimum 3 mm

  • Left / Right: Minimum 0 mm

• Cut Sheet:

  • Top: Minimum 3 mm

  • Bottom: Minimum 12.7 mm

  • Left / Right: Minimum 0 mm

---

Paper Handling

Media Thickness

• Roll Paper: 0.07 – 0.8 mm

• Cut Sheet: 0.07 – 0.8 mm

• Poster Board: 0.8 – 1.5 mm

Paper Path

• Roll Paper: Double Roll

• Cut Sheet: Manual Feed

• Poster Board: Manual Feed

Borderless Printing (Roll Sizes, mm)

• 1118, 1030, 914, 841, 728, 700, 610, 594, 515, 508,

  500, 432, 406, 356, 330, 300, 254

Roll Capacity

• Core Size: 2" / 3"

• Maximum Roll Diameter: 170 mm

• Maximum Roll Weight: 6.8 kg

Paper Width

• Roll Paper: 254 – 610 mm

• Cut Sheet: 203 – 610 mm

---

Dimensions and Weight

• Dimensions (W × D × H): 1,365 × 499 × 975 mm

• Weight: 118.1 kg

---

Electrical Specifications

• Rated Voltage: AC 100–240 V, 50 / 60 Hz

• Rated Current: 3.4 – 1.6 A

Power Consumption

• Operating: 75 W

• Ready: 32 W

• Sleep: 2.0 W

• Standby: 0.3 W

---

Ink System

• Ink Type: UltraChrome XD3 Pigment Ink

• Colours: Cyan, Magenta, Yellow, Red, Matte Black, Photo Black

---

Environmental Conditions

Temperature

• Operating: 10°C – 35°C

• Storage: −20°C – 40°C

Humidity

• Operating: 20% – 80% (no condensation)

• Storage: 5% – 85% (no condensation)

---

Acoustic Noise

• Sound Pressure: 46 dB(A)

• Sound Power: 6.3 B(A)
