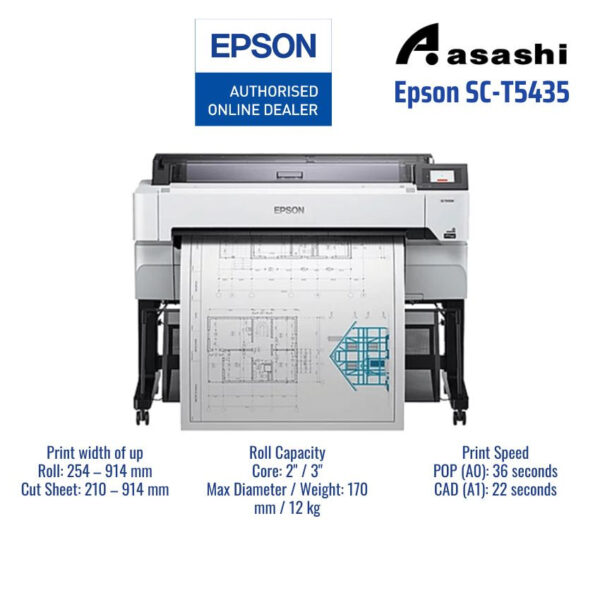

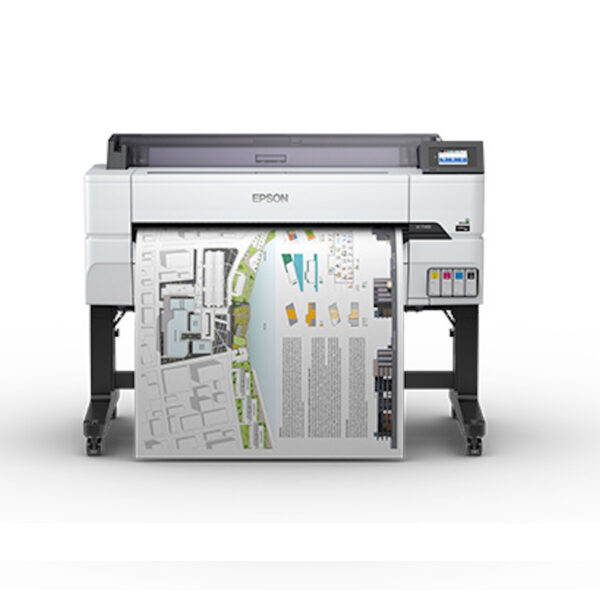

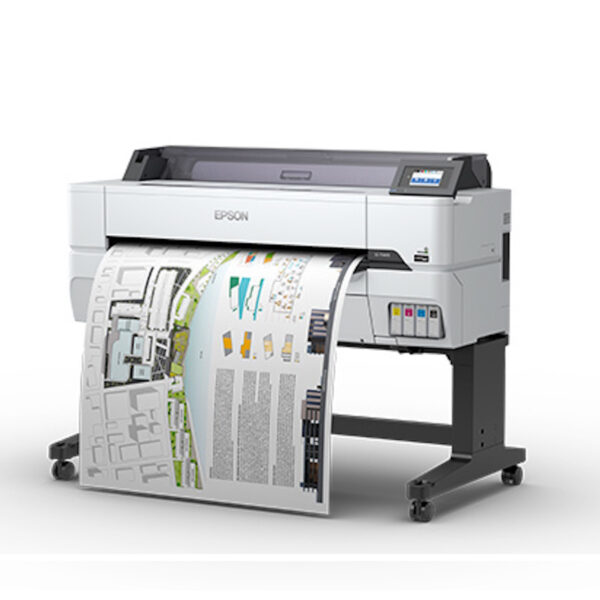

Epson SC-T5435 36″ /4-color / Epson Ultrachrome XD2 ink Printer

Go Big on Exceptional Accuracy.



Enhance your ideas by showcasing them in a big way with stand-out performance, impeccable precision, and exceptional engineering. Devised for precision and reliability, Epson SureColor SC-T5435 comes with the PrecisionCore printheads and UltraChrome XD2 ink, now with bigger ink capacity, to help businesses go big on their plans.



GO BIG on the details and find out more from our printing experts.



• 22s per A1 printout (CAD Mode) – Fastest speed in T-Series line up

• Compact and user-friendly design

• Trusted productivity with built-in Wi-Fi

• Larger ink cartridge for higher print volume users

• Print width of up to 36”



SPECIFICATION

Printing

Print Head

• Type: PrecisionCore TFP Printhead

• Nozzle Configuration: 3,200 nozzles (800 nozzles × 4 channels × 1 head)

• Maximum Print Resolution: 2,400 × 1,200 dpi

• Minimum Ink Droplet Size: 4.0 pl

Line Performance

• Line Accuracy: ±0.1% or ±0.26 mm

• Minimum Line Width: 0.07 mm (0.02 mm in fine mode)

---

Paper Handling

Media Thickness

• Roll: 0.08 – 0.3 mm

• Cut Sheet: 0.08 – 0.3 mm

Media Type

• Inkjet Coated Paper

• Tracing Paper

• Plain Paper

Margins

• Roll Paper: 3 mm (Borderless: 0 mm)

• Cut Sheet:

  • Standard: Top 3 mm / Bottom 20 mm / Left & Right 3 mm

  • Borderless: Top 3 mm / Bottom 20 mm / Left & Right 0 mm

Borderless Printing

• Supported: Yes

Roll Capacity

• Core: 2" / 3"

• Maximum Diameter / Weight: 170 mm / 12 kg

Paper Width

• Roll: 254 – 914 mm

• Cut Sheet: 210 – 914 mm

---

Electrical Specifications

• Rated Voltage / Frequency / Current: AC 100–240 V, 50 / 60 Hz, 2.8 A

Power Consumption

• Operating: 38 W

• Ready: 13 W

• Sleep: 1.3 W

• Power Off: 0.25 W

---

Environmental Conditions

• Operating Temperature: 10°C – 35°C

• Storage Temperature: −20°C – 40°C

• Operating Humidity: 20% – 80% (No condensation)

• Storage Humidity: 5% – 85% (No condensation)

---

Acoustic Noise

• Sound Pressure: Operating 49 dB(A), Sleep 32 dB(A)

• Sound Power: 7.5 B(A)

---

Warranty

• Standard Warranty: 3 years

---

Options

• Roll Feed Spindle (36"): C12C933301

---

Print Speed

• POP (A0): 36 seconds

• CAD (A1): 22 seconds

---

Software & Management

Supported Operating Systems

• Windows: XP SP3 or later / Vista / 7 / 8 / 8.1 / 10

• Windows Server: 2003 / 2008 / 2012 / 2016 / 2019

• Mac: OS X 10.6.8 or later

Printer Management Tools

• Epson Edge Dashboard

• LFP Accounting Tool

• Epson Device Admin

• Epson Cloud Solution PORT

---

Printer Dimensions & Weight (Without Ink)

• Dimensions with Stand (W × D × H): 1,385 × 750 × 1,070 mm

• Weight with Stand: 76 kg

  Printing

  Print Head

• Type: PrecisionCore TFP Printhead

• Nozzle Configuration: 3,200 nozzles (800 nozzles × 4 channels × 1 head)

• Maximum Print Resolution: 2,400 × 1,200 dpi

• Minimum Ink Droplet Size: 4.0 pl

• Line Performance

• Line Accuracy: ±0.1% or ±0.26 mm

• Minimum Line Width: 0.07 mm (0.02 mm in fine mode)

---

Paper Handling

Media Thickness

• Roll: 0.08 – 0.3 mm

• Cut Sheet: 0.08 – 0.3 mm

• Media Type

• Inkjet Coated Paper

• Tracing Paper

• Plain Paper

• Margins

• Roll Paper: 3 mm (Borderless: 0 mm)

• Cut Sheet:

  • Standard: Top 3 mm / Bottom 20 mm / Left & Right 3 mm

  • Borderless: Top 3 mm / Bottom 20 mm / Left & Right 0 mm

• Borderless Printing

• Supported: Yes

• Roll Capacity

• Core: 2" / 3"

• Maximum Diameter / Weight: 170 mm / 12 kg

• Paper Width

• Roll: 254 – 914 mm

• Cut Sheet: 210 – 914 mm

---

Electrical Specifications

• Rated Voltage / Frequency / Current: AC 100–240 V, 50 / 60 Hz, 2.8 A

• Power Consumption

• Operating: 38 W

• Ready: 13 W

• Sleep: 1.3 W

• Power Off: 0.25 W

---

Environmental Conditions

• Operating Temperature: 10°C – 35°C

• Storage Temperature: −20°C – 40°C

• Operating Humidity: 20% – 80% (No condensation)

• Storage Humidity: 5% – 85% (No condensation)

---

Acoustic Noise

• Sound Pressure: Operating 49 dB(A), Sleep 32 dB(A)

• Sound Power: 7.5 B(A)

---

Warranty

• Standard Warranty: 3 years

---

Options

• Roll Feed Spindle (36"): C12C933301

---

Print Speed

• POP (A0): 36 seconds

• CAD (A1): 22 seconds

---

Software & Management

Supported Operating Systems

• Windows: XP SP3 or later / Vista / 7 / 8 / 8.1 / 10

• Windows Server: 2003 / 2008 / 2012 / 2016 / 2019

• Mac: OS X 10.6.8 or later

• Printer Management Tools

• Epson Edge Dashboard

• LFP Accounting Tool

• Epson Device Admin

• Epson Cloud Solution PORT

---

Printer Dimensions & Weight (Without Ink)

• Dimensions with Stand (W × D × H): 1,385 × 750 × 1,070 mm

• Weight with Stand: 76 kg
