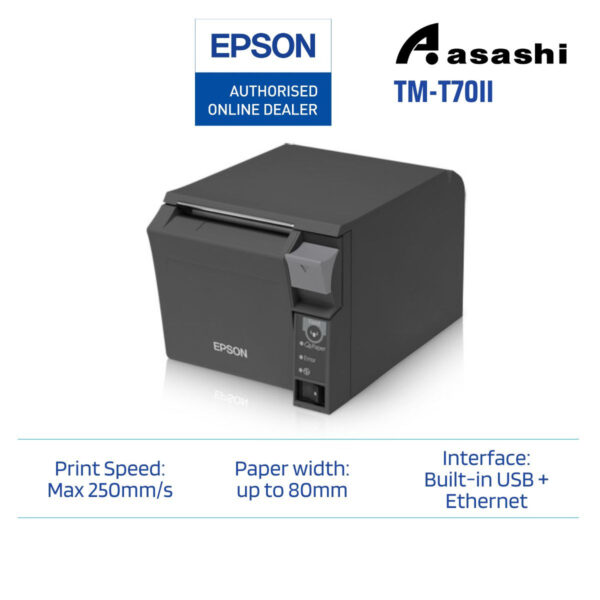

Epson TM-T70II Ethernet Thermal Receipt Printer (Thai, Vietnam Font,Grey)

Compactly Designed with a Small Footprint
Streamline your POS system with Epson’s space-saving TM-T70II printer. With its small size and low height of 4.49″, it’s designed to fit under the counters or in any small spaces offering total ease-of-use for ultra-fast transactions.High Speed, High Resolution Printing
With a 203 dpi print head, the TM-T70II delivers sophisticated, intelligent receipts for maximum customer impact in an instant. With a fast print speed of 250mm/second, be assured of crisp, clear receipts and eye-catching logos. Horizontal and vertical barcodes for special offers and promotions are also supported.

Reliability You Can Count On
With a MCBF (Mean Characters Between Failure) of 65 million lines, a MTBF (Mean Time Between Failure) of 360,000 hours and an auto cutter life of 1.7 million cuts, the TM-T70II has all the reliability needed for high-volume environments. It has an optional external rear splash cover that provides resilience and an optional cable management system to prevent accidental disconnection whilst in use.

Designed for Convenience
The TM-T70II is equipped with a range of convenient, user-friendly features. Designed to be operated with the minimum of effort, the TM-T70II’s functionality includes front paper feeding with drop-in paper rolls and front-facing operator controls.

Please download the drivers at this link:

https://download.epson-biz.com/?service=pos

Safety Standards:

---

Safety Standards:Oceania EMI AS / NZS CISPR22 Class A

Print Font:

---

Font:9 x 17 / 12 x 24, Thai font: 9 x 35 / 12 x 46 (Thai 1-pass)

Column Capacity:64 / 48

Character Size (W x H):0.88 x 2.13 mm / 1.25 x 3 mm, Thai font: 0.88 x 4.38 mm / 1.25 x 5.75 mm (Thai 1 pass)

Character Set:95 Alphanumeric, 18 set international, 128 x 43 pages (including user-defined page) Bar code: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), CODE39, ITF CODABAR, CODE93, CODE128, GS1-128 Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology

Data Buffer:

---

Data Buffer:4KB or 45 bytes

Paper:

---

Width and Roll Diameter:79.5 ± 0.5 x 83.0 mm

Thickness:0.06 to 0.07 mm

Factory Options:

---

Factory Options:External buzzer unit, Connector cover

Printing Method:

---

Printing Method:Thermal line printing

Standard Accessories:

---

Standard Accessories:Roll paper x 1 roll (for checking the initial movement of the printer), CD-ROM (Drivers, Utility software, Manuals), Setup guide, Power switch cover, Locking wire saddle, External power supply (Model: PS-180)

Dot Density:

---

Dot Density:203 x 203 dpi*

Overall Dimension (D x W x H):

---

Overall Dimension (D x W x H):194 x 125 x 114 mm

Mass:

---

Mass:Approx. 1.7kg

Interface:

---

Interface:Built-in USB + UIB (Serial or Parallel or Ethernet Interface)

Reliability:

---

MTBF:360,000 hours

MCBF:65,000,000 lines

Printer Mechanism Life:17 million lines

Auto Cutter Life:1.7 mllion cuts (for specified paper)

Power:

---

Supply Voltage:DC +24 V +/- 7%

Printing:

---

Print Speed:Max 250mm/s

Printers Facets:

---

Printer Type:Receipt Printer

Type, Printers Facets:Receipt Printers

Features, Printers Facets:Auto cutter
