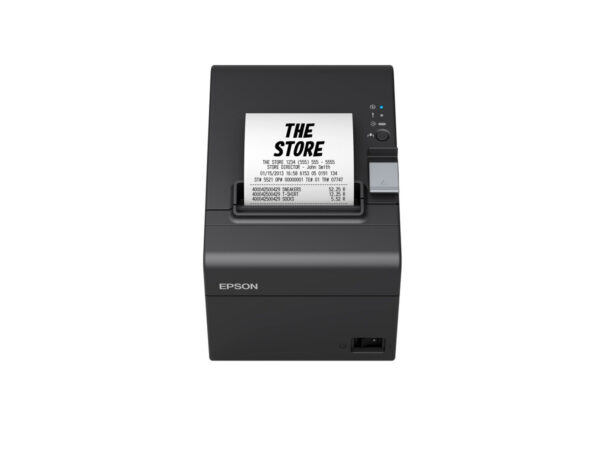

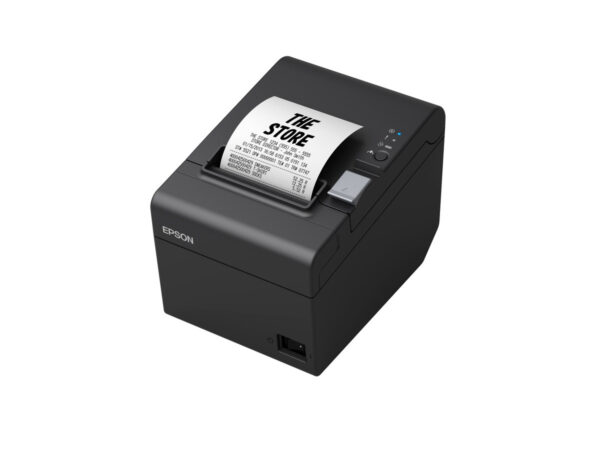

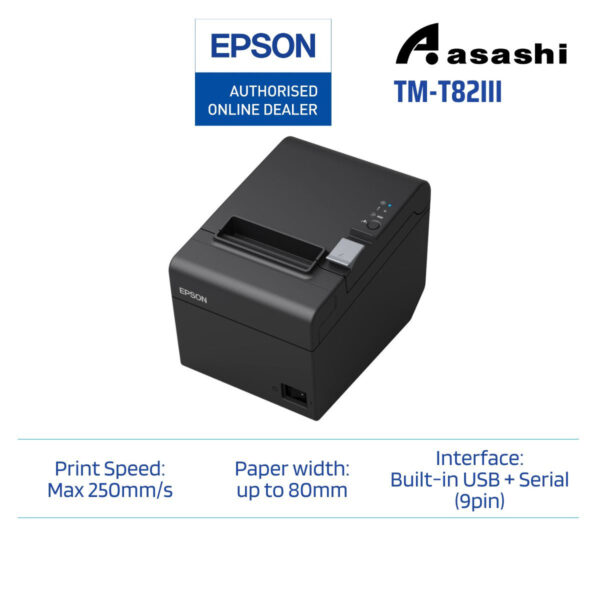

Epson TM-T82III USB + Serial Thermal Receipt Printer (Thai, Vietnam Font,Grey)

Unrivalled Performance
MCBF of 60 million lines and an auto-cutter life of 1.5 million cuts.

Versatile Placement
Compactly designed to fit in smaller spaces, with multiple ease-of-use features.

All-in-one Box Convenience
Includes all necessary drivers and accessories for quick set-up.



General Information:

---

Supported Operating Systems:Windows 7 Sp1, 8, 8.1,10 (32/64 bit), Server 2008, 2008 R2 2012, 2012 R2, 2016, 2019, Embedded POS ready 7, Standard 7, 8.1, Linux, Macintosh

Option:

---

Wireless LAN:External Wi-Fi Dongle OT-WL06

External Buzzer:External buzzer unit

Print Font:

---

Font:9 × 17 / 12 × 24, Hanji Font: 24 x 24, Thai Font: 9 x 24 / 12 x 24

Characters Per Inch:22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font: 22.6cpi / 16.9cpi

Character Size (W x H):0.88 x 2.13 mm / 1.25 x 3 mm, Hanji font: 3 x 3mm, Thai font: 9 x 24 / 12 x 24

Character Set:95 Alphanumeric, 18 set International, 128 × 43 pages (including Thai / Viet and user-defined page) Hanzi: Simplified Chinese: GB18030-2000: 28,553
Bar code: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128, GS1-128, GS1 DataBar
Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology

Column Capacity Standard:

---

Paper Width 80mm:48 / 64, Hanji font: 24, Thai font: 64 / 24

Paper Width 58mm:35 / 46, Hanji font: 17, Thai font: 35 / 46

Column Capacity 42 Column Mode:

---

Paper Width 80mm:42 / 60, Hanji font: 21, Thai font: 42 / 60

Paper Width 58mm:42 / 31, Hanji font: 15, Thai font: 42 / 31

Character Size (W x H):0.88 × 2.13 mm / 1.25 × 3 mm, Hanji font: 3 x 3 mm, Thai font: 0.88 x 3 mm / 1.25 x 3 mm

Character Set :95 Alphanumeric, 18 set International, 128 × 43 pages (including Thai / Viet and user-defined page)
Hanzi: Simplified Chinese GB18030-2000: 28,553
Bar code: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128, GS1-128, GS1 DataBar
Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology

Characters Per Inch:22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font: 22.6cpi / 16.9cpi

Data Buffer:

---

Receive:Data Buffer: 4KB or 45 bytes

Print Speed:

---

Print Speed:Max 250mm/s

Paper:

---

Width and Roll Diameter:79.5 ± 0.5mm
57.5 ± 0.5 × diameter 83.0 mm

Overall Dimensions (D x W x H):

---

Overall Dimensions (D x W x H):199 × 140 × 146 mm

Printing Method:

---

Printing Method:Thermal Line Printing

Standard Accessories:

---

Standard Accessories ROM:Roll paper × 1 roll (for checking the initial movement of the printer), Setup guide, Power button cover, Waterproof power button cover, Wall hanging bracket, Screws for wall hanging bracket, Rubber feet for vertical installation, Control panel sheet for vertical installation, 58-mm width paper guide, External power supply

Dot Density:

---

Dot Density:203 x 203 dpi

Mass:

---

Mass:Approx. 1.7kg

Interfaces:

---

Interfaces:Built-in USB + UIB (Serial or Parallel interface), Ethernet interface

EMI and Safety Standards:

---

Safety Standards:Oceania EMI AS/NZS CISPR32 Class A

Interface:

---

Interface:Built-in USB + Serial (9pin) / Ethernet Interface

Reliability:

---

MTBF:360,000 hours

MCBF:60,000,000 lines

Printer Mechanism Life:15 million lines

Auto Cutter Life:1.5 million cuts

Power:

---

Power Consumption:Operating: Approx. 1.5A (Mean / Print ratio 18% with print pattern)
Standby: Approx. 0.1A (Mean)

Power Supply:External power supply (Model: PS-180)

Supply Voltage:DC +24V ± 7%

Receive Data Buffer:

---

Receive Data Buffer:4KB or 45 bytes

Printer Details:

---

Other Features:Built-in: Automatic Paper Reduction, Automatic paper cut with logo printing, QRCode Quick Pairing (for Ethernet Model only)
