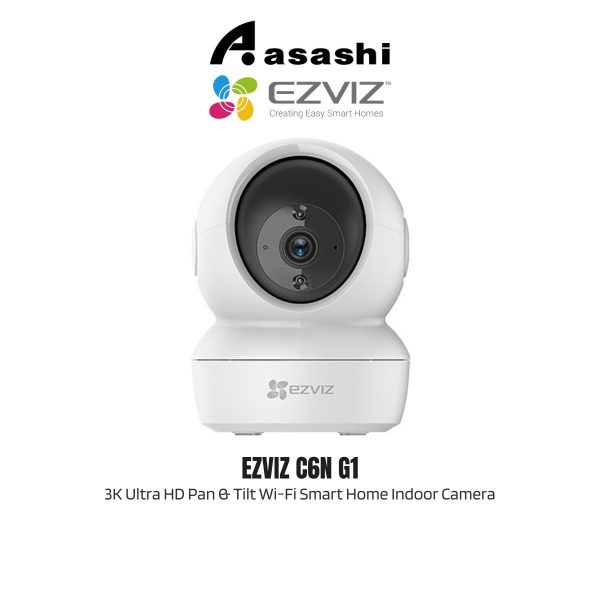

Ezviz C6N G1 5MP 3K Ultra HD Pan & Tilt Wi-Fi Smart Home Indoor Camera

Camera Specifications – Model CS-C6N-A0-1C2WFR

Camera

• Image Sensor: 1/4" Progressive Scan CMOS

• Shutter Speed: Self-adaptive shutter

• Lens: 4mm @ F2.4

  • View Angle: 85° diagonal, 75° horizontal, 45° vertical

• Lens Mount: M12

• Day & Night: IR-cut filter with auto-switching

• DNR: 3D DNR

• WDR: Digital WDR

Compression

• Video Compression: H.264

• Video Bit Rate: Full HD, HD, Standard (adaptive)


• Max. Resolution: 1920 × 1080

• Frame Rate: Max 15 fps; self-adaptive during network transmission

Network

• Smart Alarm: Motion detection

• Wi-Fi Pairing: AP Pairing

• Protocol: EZVIZ Cloud Proprietary Protocol

• Interface Protocol: EZVIZ Cloud Proprietary Protocol

Interface

• Storage: MicroSD card slot (Max 256 GB)

• Power: Micro USB

• Wired Network: RJ45 × 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

• Standard: IEEE 802.11 b/g/n

• Frequency Range: 2.4 GHz ~ 2.4835 GHz

• Channel Bandwidth: 20 MHz

• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

• Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps

General

• Power Supply: DC 5V / 1A

• Power Consumption: 5W max

• IR Range: Max 10 m (32.81 ft)

• Dimensions: 88 mm × 88.2 mm × 119 mm (3.46” × 3.47” × 4.69”)

• Packaging Dimensions: 103 mm × 103 mm × 168 mm (4.06” × 4.06” × 6.61”)

• Bare Weight: 218 g (0.48 lb)

Packaging Contents

• C6N camera

• Base

• Screw Kit

• Power Cable 3 m (9.8 ft)

• Drill Template

• Power Adapter

• Quick Start Guide

Operating Environment

• Temperature: -10°C to 45°C (14°F to 113°F)

• Humidity: 95% or less (non-condensing)
