Name: EZVIZ EP3x Battery-Powered Video Doorbell Kit - A-sashi Technology
SKU: EZ-EP3X
Price: 275.00 MYR
Availability: OutOfStock

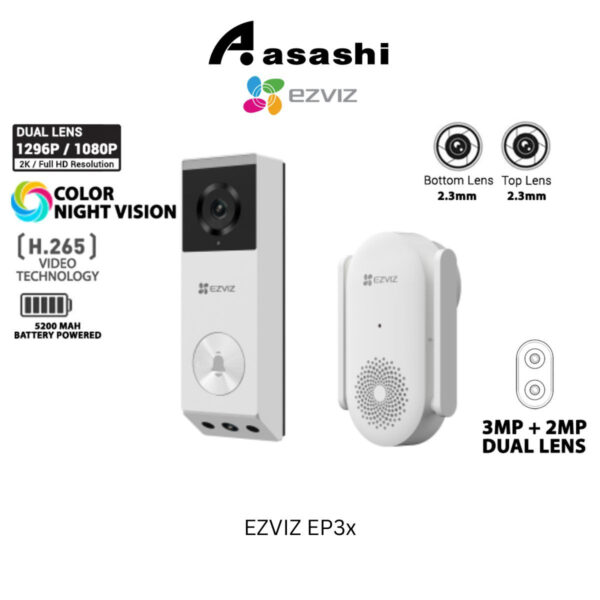

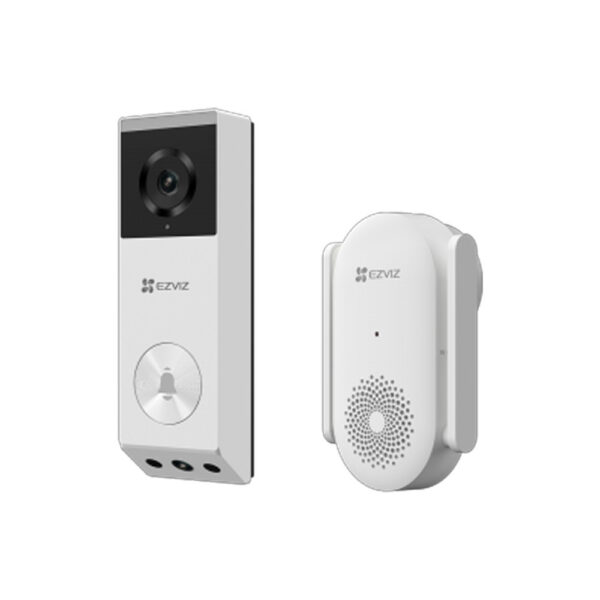

EZVIZ EP3x Battery-Powered Video Doorbell Kit

👁 Currently 19 people are viewing this product.

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

Specifications
Model	CS-EP3x
Video Doorbell
Camera Parameters
Image Sensor	1/2.8" Progressive Scan CMOS (Supports low light sensitivity)
Lens	Upper camera: 2.3mm @F/2.2 , diagonal field of view 162° Bottom camera: 2.3mm @F/2.2 , diagonal field of view 155°
Day & Night	ICR infrared filter type ( Max: 6 meters)
Video Parameters
Max. Resolution	Main camera: 2K (2048 × 1296) Bottom camera: 1080p (1920 × 1080)
DNR	2D / 3D DNR
Video Compression	H.265 / H.264
Frame Rate	15fps.Fixed frame rate
Radar Detection Parameters
Detection Angle	180°
Detection Distance	Max. 2.5 m (8.2 ft)
Sensitivity	User adjustable (high: 2.5 m, medium: 1.8 m, low: up to 1 m)
Interface
Audio Input	Built-in high-sensitivity microphone
Audio Output	Built-in high-power speaker
Doorbell Button	Yes (1 electronic doorbell button)
Reset button	Yes (1 button)
Network Parameters
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Protocol	EZVIZ Cloud Proprietary Protocol
Functions
Smart Alarm	Human shape detection Package detection
Anti-Tamper Alarm	Sound and light anti-dismantling alarm (supports sending alerts to the smartphone)
Video Intercom	Two-Way talk
Wi-Fi Parameters
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20MHz
Security	64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Storage
Local Storage (on chime)	Supports microSD card (max. 512 GB)
Cloud Storage	Supports EZVIZ CloudPlay Storage (subscription required)
General
Operation Conditions	-20°C to 50°C, humidity 95% or less (non-condensing)

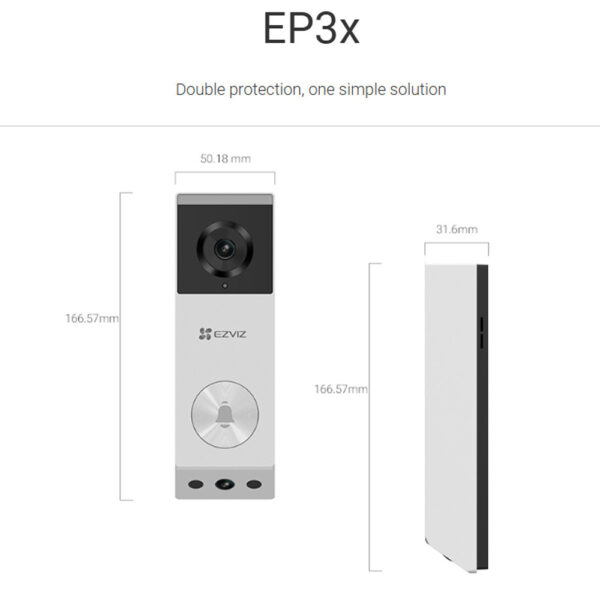

Size	166 × 50 × 31mm (6.53 × 1.97 × 1.22 inch)
Battery Capacity	5200 mAh rechargeable lithium battery
Power Supply	Type-C: 5V(+-10%)
Power Consumption	Max. 3 W
Chime
Power Supply	AC 110 ~ 240 V
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Audio Output	72dB within 1 m
Storage	Supports microSD card (max.512 GB)
Weight	83.6 g
In the box
In the box	– EP3x Video Doorbell
	– Mounting Plate
	– Drill Template
	– CH1 Chime
	– Screw Kit
	– Pin
	– Power Cable
	– Regulatory Information ×2
	– Quick Start Guide
Certifications
Certifications	CE / REACH / WEEE / RoHS
