Name: EZVIZ EP3x PRO Battery-Powered Video Doorbell Kit + CH1 Smart Wi-Fi Chime - A-sashi Technology
SKU: EZ-EP3X-PRO
Price: 449.00 MYR
Availability: OutOfStock

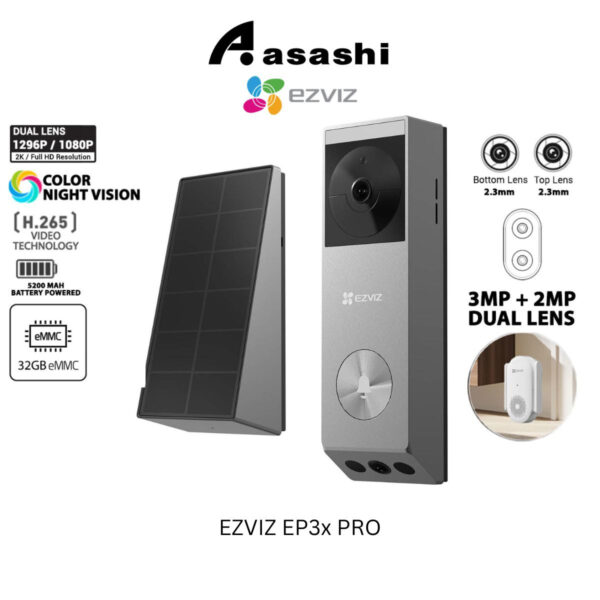

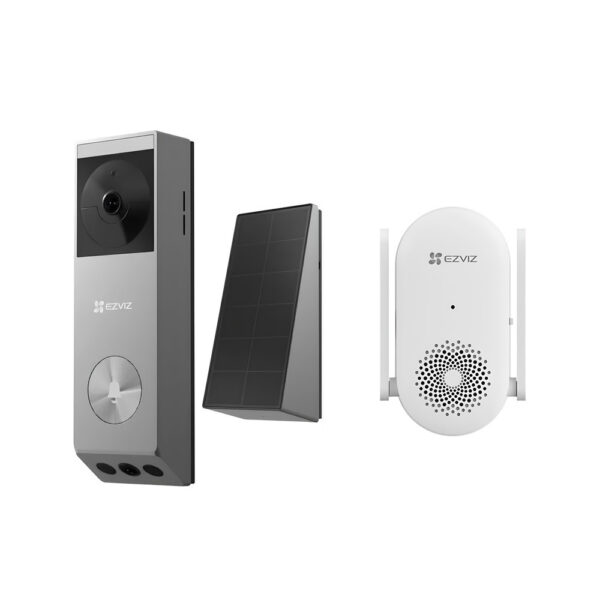

EZVIZ EP3x PRO Battery-Powered Video Doorbell Kit + CH1 Smart Wi-Fi Chime

👁 Currently 24 people are viewing this product.

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

Specifications
Model	CS-EP3x Pro
Video Doorbell
Camera Parameters
Image Sensor	1/2.8" Progressive Scan CMOS (Supports low light sensitivity)
Lens	Upper camera: 2.3mm @F/2.2 , diagonal field of view 162° Bottom camera: 2.3mm @F/2.2 , diagonal field of view 155°
Day & Night	ICR infrared filter type ( Max: 6 meters)
Video Parameters
Max. Resolution	Main camera: 2K (2048 × 1296) Bottom camera: 1080p (1920 × 1080)
DNR	2D / 3D DNR
Video Compression	H.265 / H.264
Frame Rate	15fps.Fixed frame rate
PIR Sensor
Sensing Angle	120°
Sensing Distance	Max. 5 m (16.4 ft)
Sensitivity	Adjustable (High: 5 meter, Medium: 4 meter,and Low: up to 3 meter)
Storage
Local Storage	Built-in 32GB eMMC
Cloud Storage	EZVIZ CloudPlay storage
Interface
Audio Input	Built-in high-sensitivity microphone
Audio Output	Built-in high-power speaker
Button	Doorbell button with electronic doorbell
Reset button	Yes
Network Parameters
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Protocol	EZVIZ Cloud Proprietary Protocol
Wi-Fi Parameters
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20MHz
Security	64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Function
Intelligent Alarm	AI-Powered Human Shape Detection, Package Detection
Tamper Alarm	Sound and light anti-dismantling alarm (Supports sending alerts via EZVIZ App)
Video Intercom	Two-Way talk
General
Operation Conditions	-20°C to 50°C, humidity 95% or less (non-condensing)
IP Grade	IP65

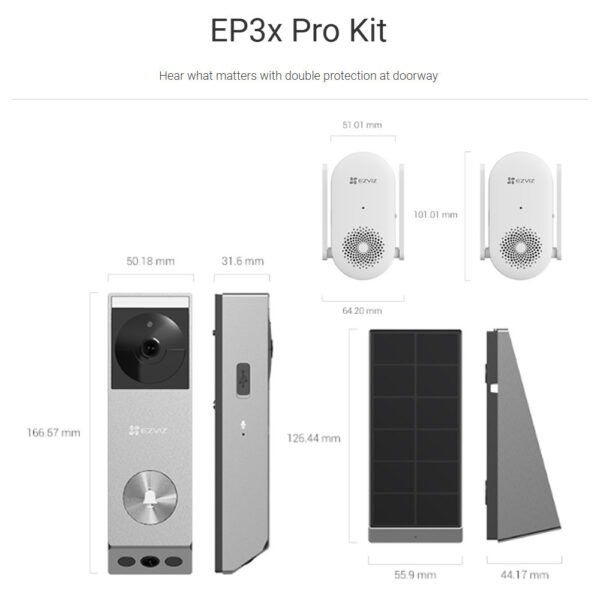

Size	166 × 50 × 31mm (6.53 × 1.97 × 1.22 inch)
Battery Capacity	5200 mAh rechargeable lithium battery
Power Supply	8-24VAC, type-C: 5V(±10%), EZVIZ Solar Panel
Power Consumption	3W MAX
Solar Panel
Performance Parameter
Max. Power Voltage	8.1V
Max. Power Current	240mA
Max. Power	1.2W
Operating Temperature	-20°C to 50°C
Size	126 × 56 × 44 mm (4.96 × 2.20 × 1.73 inch)
IP Grade	IP65
General
Net Weight	Doorbell: 276 g (9.73 oz)
Weight with Package	650 g (22.93 oz)
In the box
In the box	– EP3x Pro Video Doorbell
	– Mounting Bracket for Doorbell
	– Inclined Mounting Bracket
	– Drill Template for Doorbell
	– Solar Panel
	– Drill Template for Solar Panel
	– Power Cable
	– Pin
	– Screw Kit ×3
	– U-shaped Wire ×2
	– Wire Connector ×2
	– Regulatory Information ×2
	– Quick Start Guide
Certifications
Certifications	CE / REACH / WEEE / RoHS
