EZVIZ S10 2K+ Smart Calling Camera with 4″ Touch Display | Motorized Pan | Bluetooth Speaker | CCTV Monitor | Video Call

EZVIZ CS-S10-R100-1M4WFK

Camera Specifications
Camera:
Image Sensor:
4mm @ F1.6 Progressive Scan CMOS
Shutter Speed:
Self-adaptive
Lens:
4mm
View Angle:
100° (Diagonal), 84° (Horizontal), 46° (Vertical)

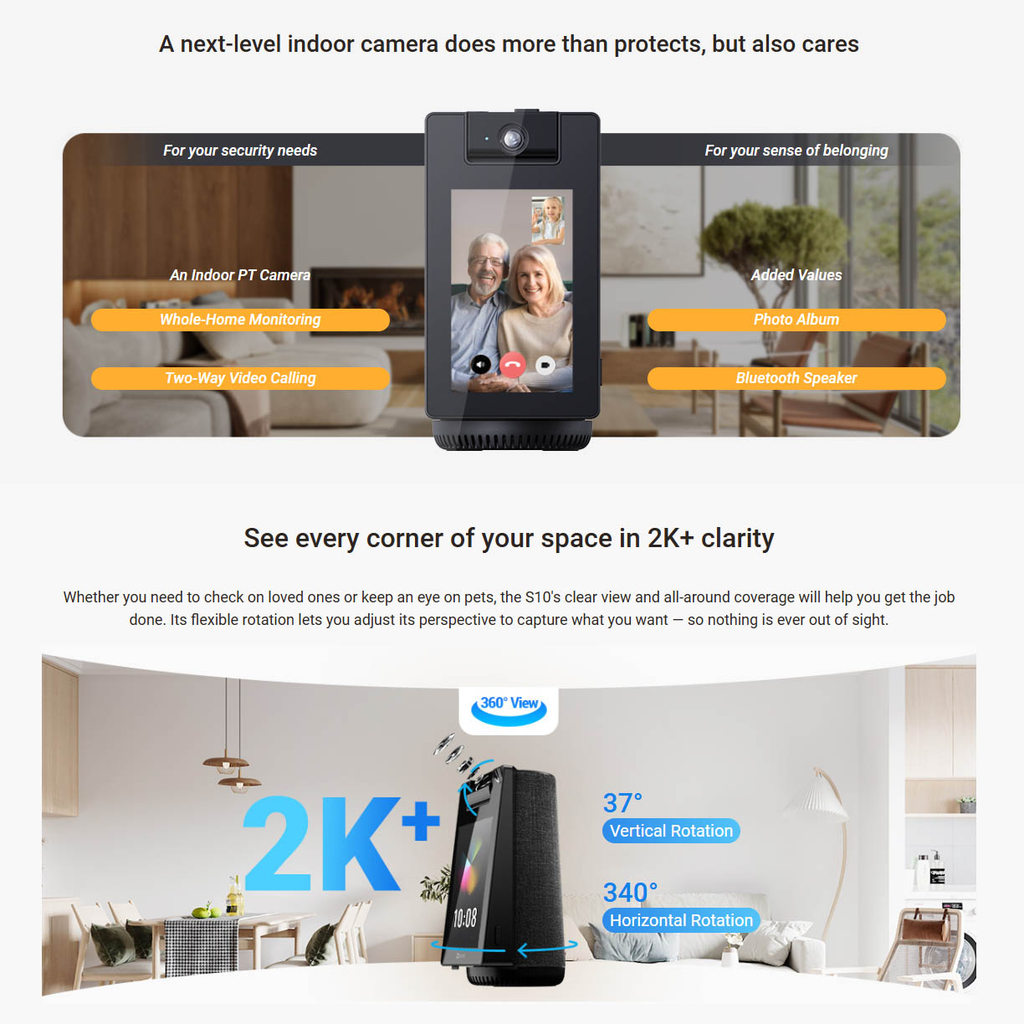

PT Angle:
0–340° Horizontal, 37° Vertical
Lens Mount:
M12
Day & Night:
IR-cut filter with auto-switching
DNR:
3D DNR
Privacy:
Manual privacy masking

Screen and Audio:
Screen:
4-inch touch screen (480 × 800)
Screen Tilt Angle:
7° vertically
Audio Capture:
2-microphone array

Speaker:
3W
Max Resolution:
2K+ (1504 × 2672)
Frame Rate:
Self-adaptive during network transmission

Video Compression:
H.264 / H.265
Video Bit Rate:
Adaptive
Wireless Transmission:
Standard:
IEEE 802.11a/b/g/n/ac/ax
Frequency Range:
2.4G: 2400–2483.5 MHz
5G: 5150–5350 MHz, 5470–5725 MHz
Channel Bandwidth:
2.4G 20 MHz; 5G 20/40/80 MHz

Security:
WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate:
11b: 11 Mbps
11g: 54 Mbps
11n: MCS7
11a: 54 Mbps
11ac: MCS9
11ax: MCS11

Output Power (EIRP):
2400–2483.5 MHz: ≤20 dBm
5150–5350 MHz: ≤23 dBm
4700–5725 MHz: ≤30 dBm
Antenna Gain:
2.4G: 3.1 dBi; 5G: 4.2 dBi

Function:

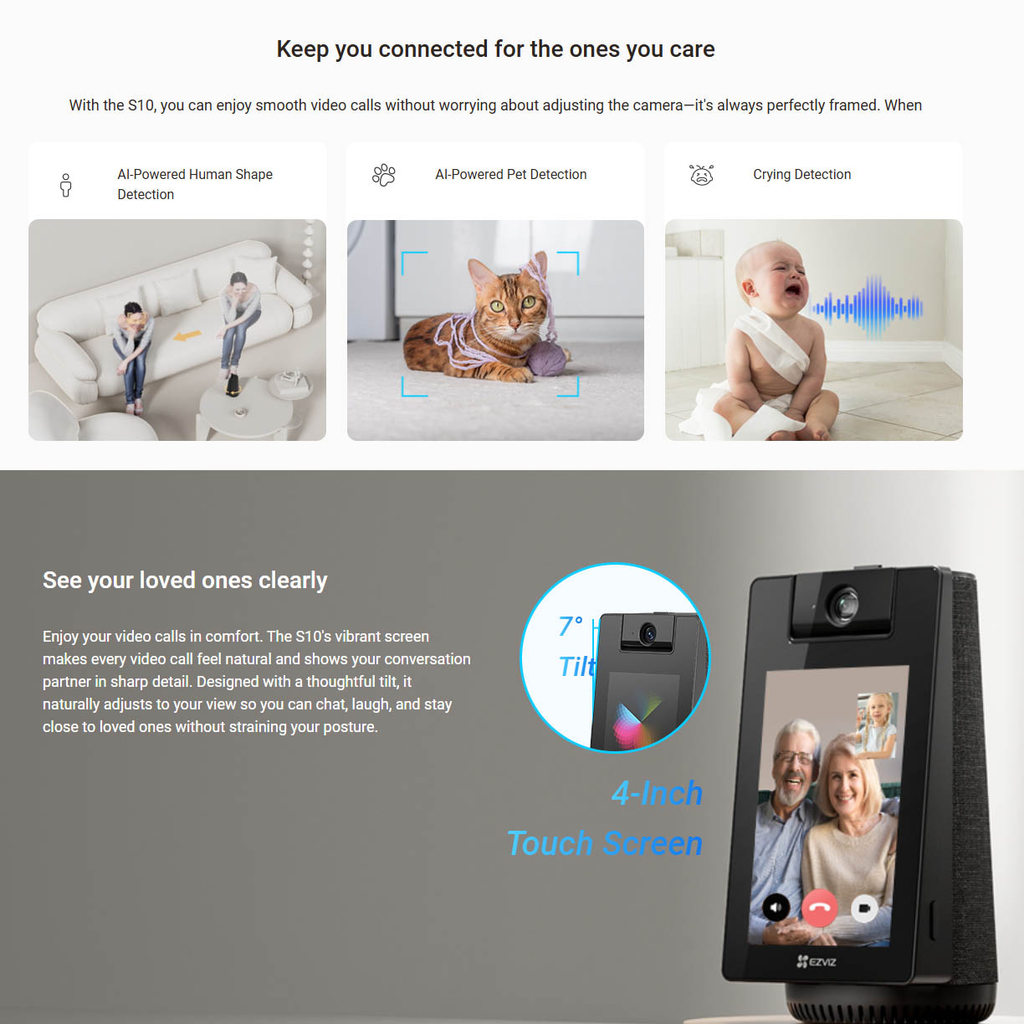

Smart Alarm:
PIR motion detection, AI-powered human shape detection, AI-powered pet detection, loud noise detection
Wi-Fi Pairing:
Bluetooth pairing
Protocol:
EZVIZ Cloud Proprietary Protocol
Interface Protocol:
EZVIZ Cloud Proprietary Protocol

Interface:
Storage:
Supports microSD card (up to 512 GB)
Power:
Type-C
Wired Network:
No
General:
Operating Conditions:
-10°C to 40°C; humidity ≤95% (non-condensing)

Power Supply:
DC 5V / 2A
Power Consumption:
Max 8 W
IR Range:
Max 10 meters (32.8 ft)

Dimensions:
75 × 75 × 146 mm (2.9 × 2.9 × 5.7 in)
Packaging Dimensions:
160 × 98 × 172 mm (6.3 × 3.8 × 6.7 in)
Net Weight:
403 g (14.2 oz)

In the Box:
S10 Camera
Power Adapter
Power Cable
Regulatory Information × 2
Quick Start Guide

Certifications: CE / REACH / WEEE / RoHS
