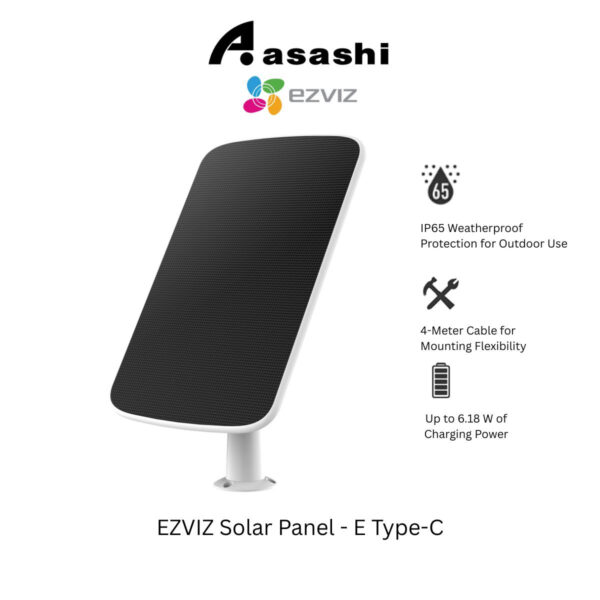

EZVIZ Solar Panel – E Type-C Solar Charging Panel

EZVIZ Solar Panel – E Type-C Solar Charging Panel

Energy-saving and Eco-friendly Solar Power Supply

High Efficiency with Monocrystalline Silicon Cell Solution

Up to 6.18 W of Charging Power for a Long-lasting Supply

4-Meter Cable for Mounting Flexibility

IP65 Weatherproof Protection for Outdoor Use

Solar Charging Panel-E

Designed for EZVIZ Battery Cameras with Type-C Charging Ports

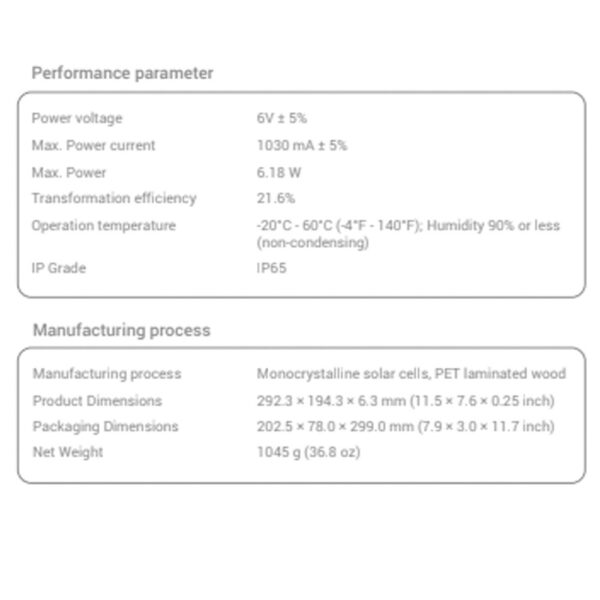

Specification

Performance Parameters

Test data from EZVIZ Lab under Standard Testing Conditions (STC): 1000W/m², AM1.5, 25°C, 38,000–40,000 LUX.

• Power Voltage: 6V ± 5%

• Max. Power Current: 1030 mA ± 5%

• Max. Power Output: 6.18 W

• Transformation Efficiency: 21.6%

Operating Conditions

• Operating Temperature: -20°C to 60°C (-4°F to 140°F)

• Charging Temperature (Battery Cameras): 0°C to 45°C (32°F to 113°F)

• Humidity: ≤ 90% (non-condensing)

• IP Rating: IP65 (weatherproof)

Mechanical Data

• Manufacturing Process: Monocrystalline solar cells with PET laminated wood

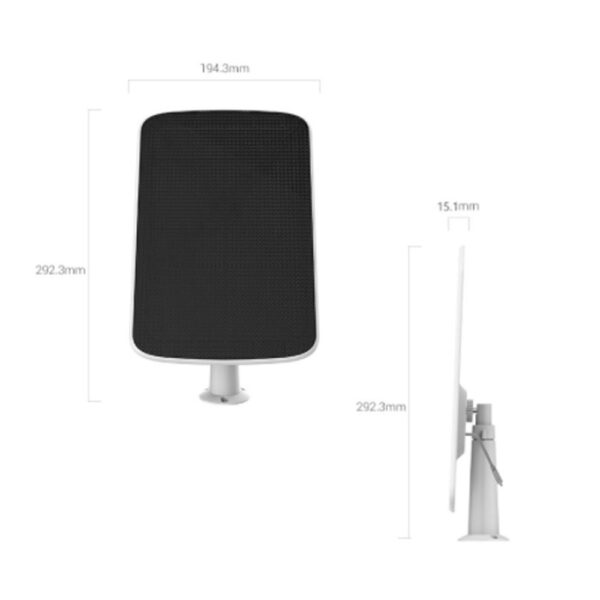

• Product Dimensions: 292.3 × 194.3 × 15.1 mm (11.5 × 7.6 × 0.59 inch)

• Packaging Dimensions: 202.5 × 78.0 × 299.0 mm (7.9 × 3.0 × 11.7 inch)

• Net Weight: 854 g (30.12 oz)

• Weight with Packaging:1045 g (36.8 oz)

In the Box

• EZVIZ Solar Panel-E

• Adjustable Mounting Bracket

• Screw Kit

• Drill Template

• Quick Start Guide

Certifications

• CE

• FCC

• UKCA

• WEEE

• REACH

• RoHS
