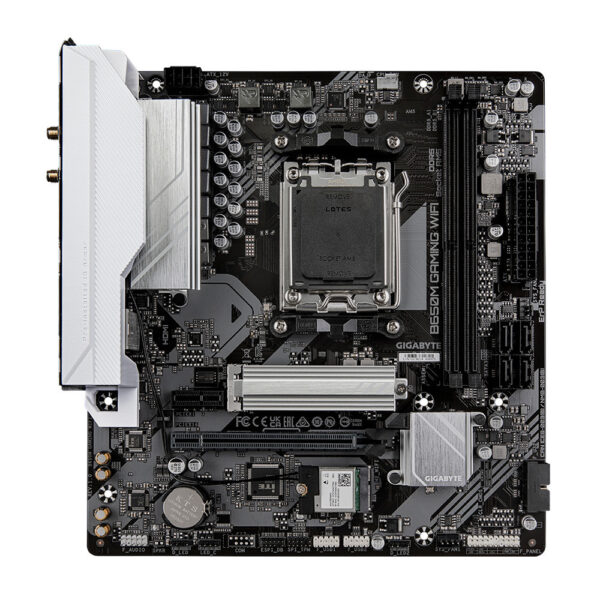

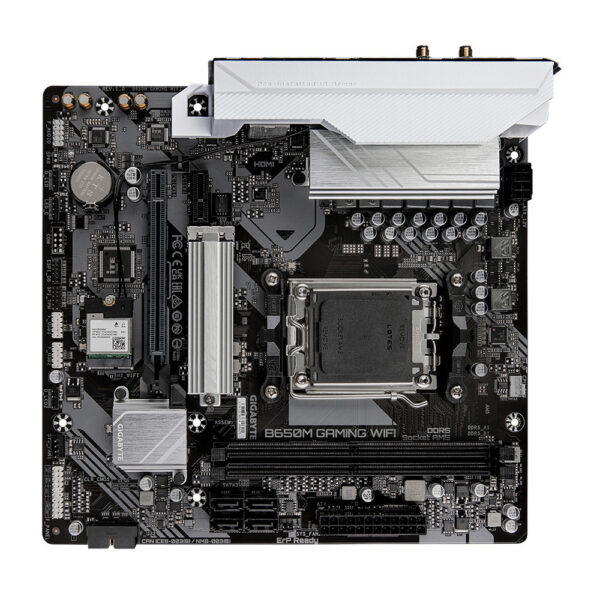

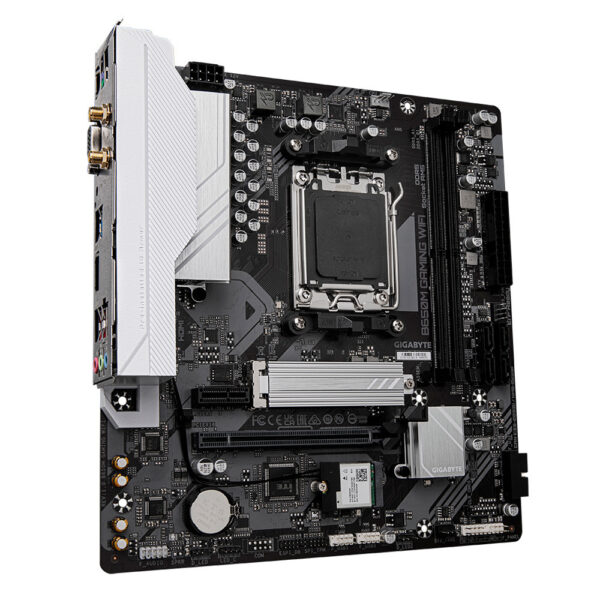

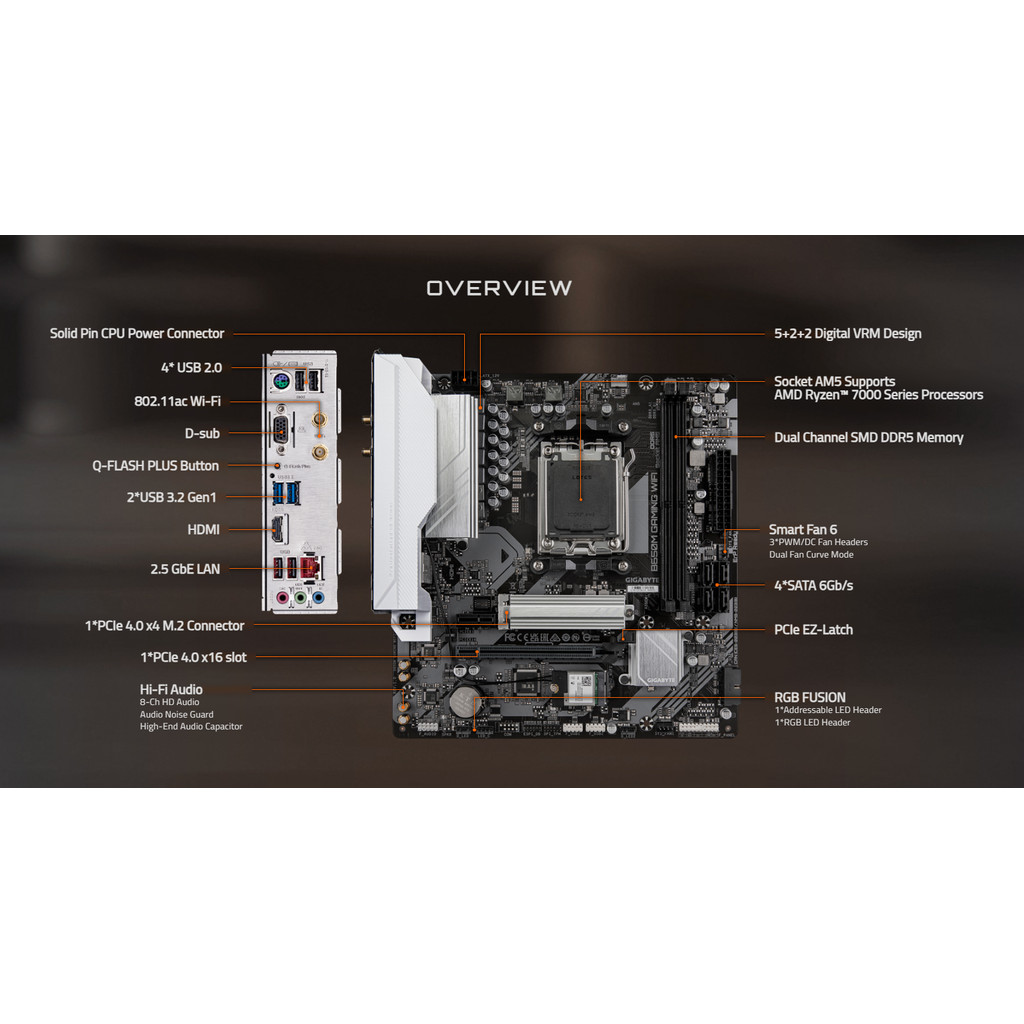

Technical Specs :-
CHIPSET : AMD B650
SOCKET : AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors
MEMORY : Support for DDR5 6400(OC) – 2x DDR5 Sockets up to 96GB
VIDEO I/O : D-sub (1x) // HDMI2.1 (1x)
AUDIO : Realtek® Audio CODEC
LAN : Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WIRELESS : AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) + BLUETOOTH 4.2
EXPANSION SLOT :
1 x PCI Express x16 slot, SUpporting PCIe 4.0
1 x PCI Express x1 slot, supporting PCIe 3.0
STORAGE :
1 x M.2 connector
4 x SATA 6Gb/s connectors
USB :
CPU:
– 2 x USB 3.2 Gen 1 ports on the back panel
– 1 x USB 2.0/1.1 port on the back panel
Chipset:
– 2 x USB 3.2 Gen 1 ports available through the internal USB header
– 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
– 2 x USB 2.0/1.1 ports available through the internal USB header

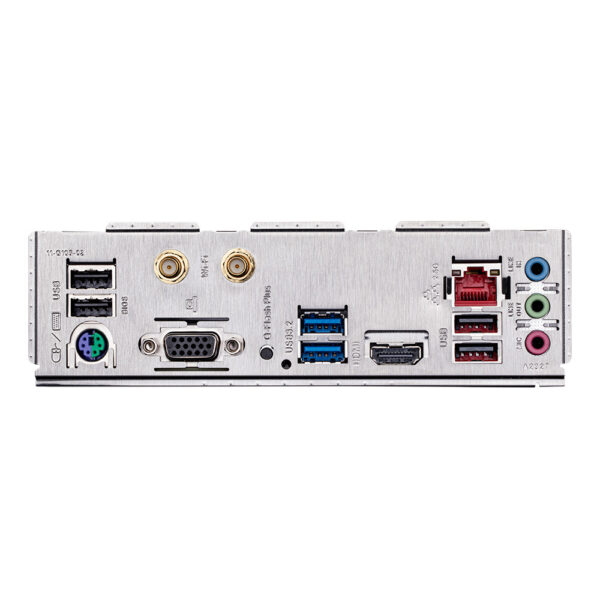

REAR I/O :
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x HDMI port
1 x RJ-45 port
3 x audio jacks
FORM FACTOR : Micro ATX Form Factor; 24.0cm x 22.5cm
WARRANTY : 3 YEARS
Weight
3 kg
Dimensions
18 × 35 × 8 cm
