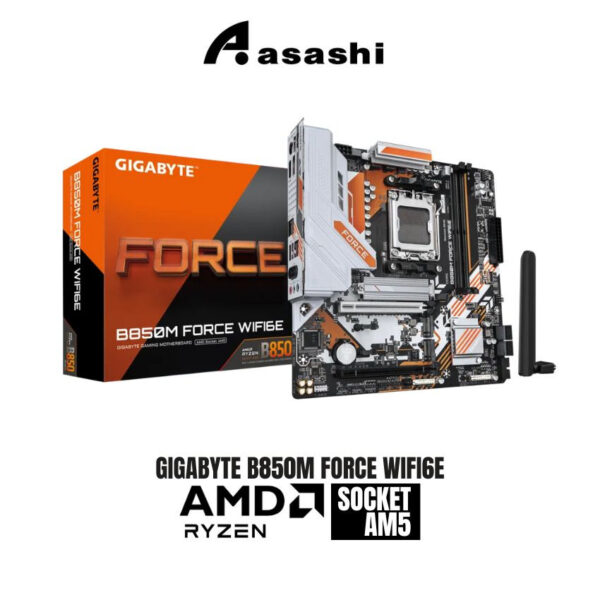

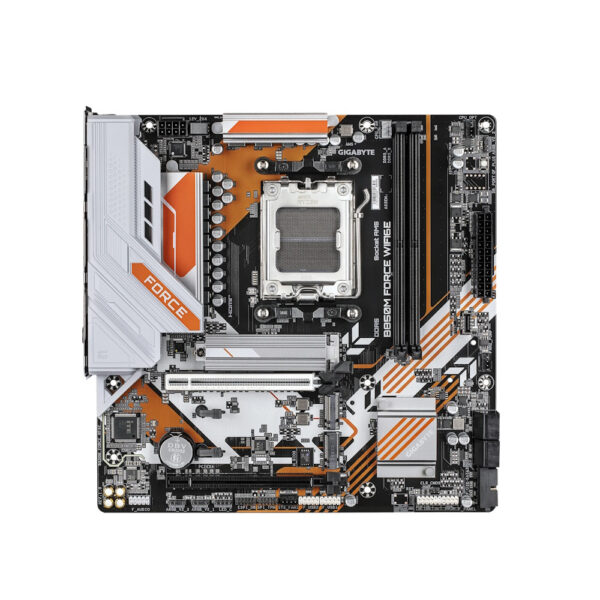

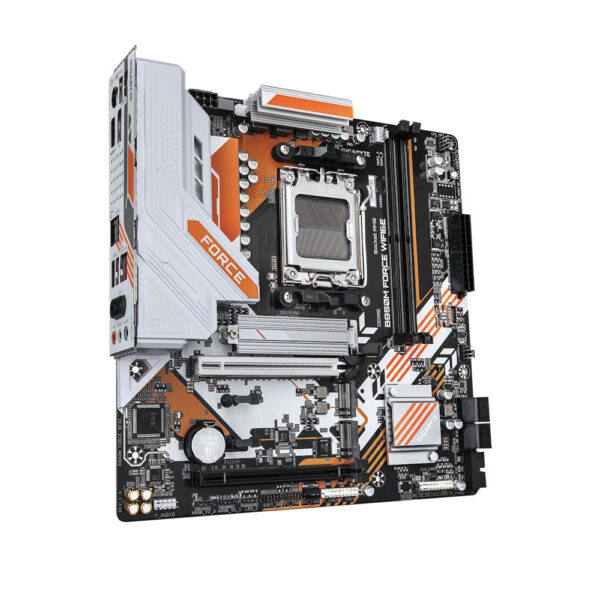

GIGABYTE B850M FORCE WIFI6E (AM5) M-ATX Motherboard

GIGABYTE B850M FORCE WIFI6E (AM5) M-ATX Motherboard

CPU

• AMD Socket AM5

• Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors

Chipset

• AMD B850

Memory

• 2 x DDR5 DIMM slots

• Supports up to 128 GB (64 GB per DIMM)

• Supports DDR5 speeds: 9600(OC), 9200(OC), 8800(OC), 8600(OC), 8400(OC), 8200(OC), 8000(OC), 7800(OC), 7600(OC), 7200(OC), 7000(OC), 6800(OC), 6666(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5600(OC), 5200, 4800, 4400 MT/s

• Dual channel memory architecture

• Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16

• Supports AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP)

Integrated Graphics

• AMD Radeon™ Graphics support

• 1 x HDMI 2.1 port, max resolution 4096 x 2160 @ 60 Hz, HDCP 2.3, HDR support

• 1 x DisplayPort 1.4, max resolution 3840 x 2160 @ 144 Hz

Audio

• Realtek® Audio CODEC

• High Definition Audio support

• Supports 2/4/5.1/7.1-channel audio

• Audio jack functions configurable via software

LAN

• Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication

• MediaTek Wi-Fi 6E MT7902

• Supports Wi-Fi a/b/g/n/ac/ax on 2.4/5/6 GHz bands

• Bluetooth 5.3

• Supports 11ax 160MHz wireless standard

Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated with CPU

  • PCIe 5.0 x16 mode (Ryzen 9000/7000)

  • PCIe 4.0 x8 or x4 mode (Ryzen 8000 Phoenix 1/2)

• 1 x PCI Express x16 slot (PCIEX4), chipset, PCIe 4.0 x4

Storage

• 3 x M.2 Socket 3 connectors (Type 2280)

  • M2A_CPU and M2B_CPU support PCIe SSDs with varying PCIe versions depending on CPU

  • M2C_SB supports PCIe 4.0 x2 SSDs (chipset)

• 4 x SATA 6Gb/s connectors

• RAID support:

  • NVMe SSD RAID 0, 1, 5, 10 (RAID 5 only on Ryzen 9000)

  • SATA RAID 0, 1, 10

USB Ports

CPU:

• 1 x USB Type-C (USB 3.2 Gen 1) on back panel

• 1 x USB 3.2 Gen 2 Type-A (red) on back panel

• 1 x USB 2.0/1.1 on back panel

Chipset:

• 1 x USB Type-C (USB 3.2 Gen 1) via internal header

• 4 x USB 3.2 Gen 1 (2 back panel, 2 internal)

• 5 x USB 2.0/1.1 (1 back panel, 4 internal)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 1 x CPU fan/water cooling pump header

• 1 x system fan header

• 1 x system fan/water cooling pump header

• 3 x addressable RGB Gen2 LED strip headers

• 1 x RGB LED strip header

• 3 x M.2 Socket 3 connectors

• 4 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB Type-C header (USB 3.2 Gen 1)

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module header

• 1 x reset jumper

• 1 x Clear CMOS jumper

• 1 x Q-Flash Plus button

Back Panel Connectors

• 1 x HDMI port

• 1 x DisplayPort

• 1 x PS/2 keyboard/mouse port

• 1 x USB Type-C (USB 3.2 Gen 1)

• 2 x USB 3.2 Gen 1 ports

• 1 x USB 3.2 Gen 2 Type-A (red)

• 2 x USB 2.0/1.1 ports

• 1 x RJ-45 LAN port

• 2 x antenna connectors (1T1R)

• 3 x audio jacks

I/O Controller

• iTE® I/O Controller Chip

Hardware Monitoring

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Fan fail warning

• Fan speed control (depends on installed fan/pump)

BIOS

• 256 Mbit flash memory

• Licensed AMI UEFI BIOS

• Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)

• Support for Q-Flash and Q-Flash Plus

• Support for Smart Backup

Bundled Software

• Norton® Internet Security (OEM version)

Operating System Support

• Windows 11 64-bit

• Windows 10 64-bit

Form Factor

• Micro ATX

• Dimensions: 24.4 cm x 24.4 cm
