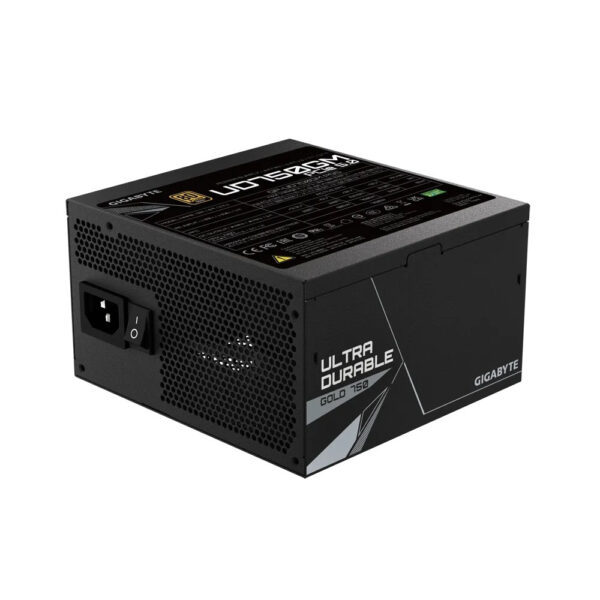

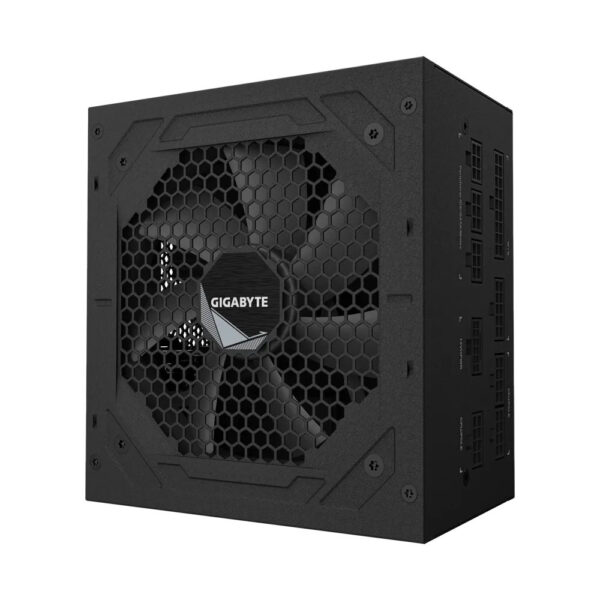

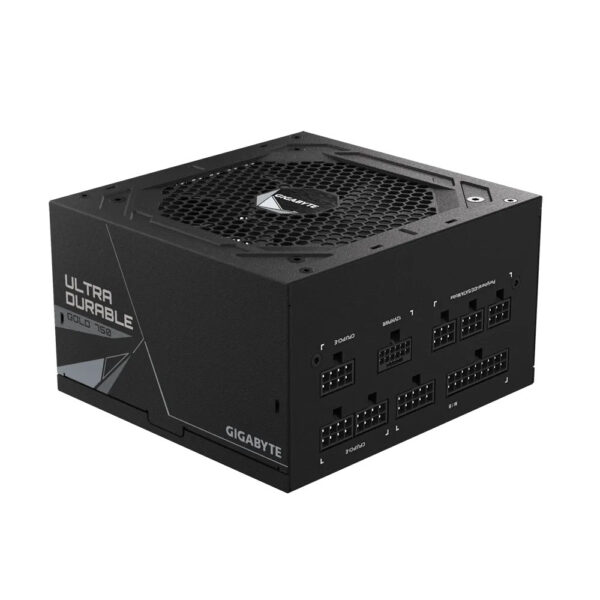

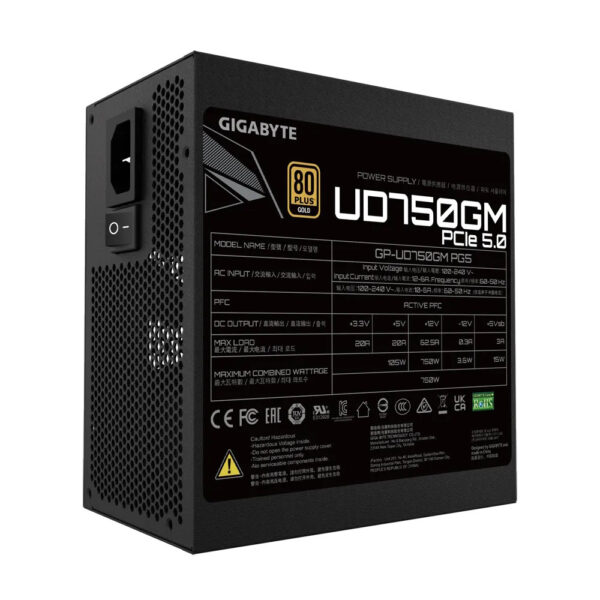

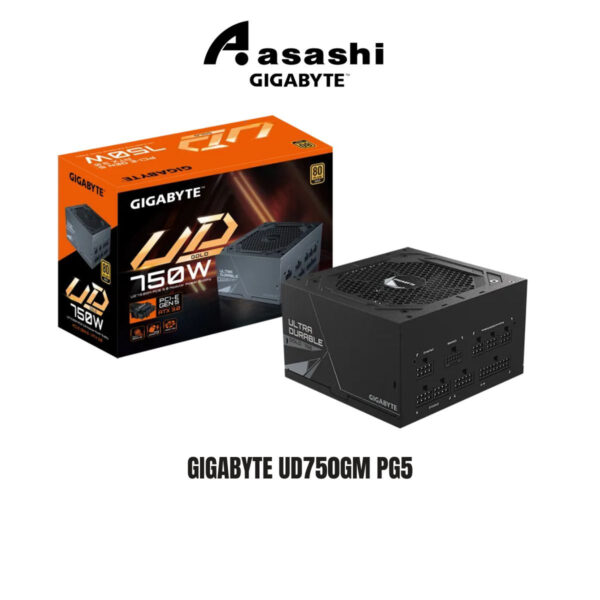

Gigabyte UD750GM PG5 750W 80+ Gold, PCIE 5.0 ATX3.0 Full Modular Power Supply
Gigabyte UD750GM PG5 750W 80+ Gold, PCIE 5.0 ATX3.0 Full Modular Power Supply
Gigabyte UD750GM PG5 750W 80+ Gold, PCIE 5.0 ATX3.0 Full Modular Power Supply
Gigabyte UD750GM PG5 750W 80+ Gold, PCIE 5.0 ATX3.0 Full Modular Power Supply
Gigabyte UD750GM PG5 750W 80+ Gold, PCIE 5.0 ATX3.0 Full Modular Power Supply
  1. Gigabyte UD750GM PG5 750W 80+ Gold, PCIE 5.0 ATX3.0 Full Modular Power Supply
  2. Gigabyte UD750GM PG5 750W 80+ Gold, PCIE 5.0 ATX3.0 Full Modular Power Supply
  3. Gigabyte UD750GM PG5 750W 80+ Gold, PCIE 5.0 ATX3.0 Full Modular Power Supply
  4. Gigabyte UD750GM PG5 750W 80+ Gold, PCIE 5.0 ATX3.0 Full Modular Power Supply
  5. Gigabyte UD750GM PG5 750W 80+ Gold, PCIE 5.0 ATX3.0 Full Modular Power Supply
Gigabyte UD750GM PG5 750W 80+ Gold, PCIE 5.0 ATX3.0 Full Modular Power Supply

Gigabyte UD750GM PG5 750W 80+ Gold, PCIE 5.0 ATX3.0 Full Modular Power Supply

Original price was: RM489.00.Current price is: RM469.00.

👁 Currently 28 people are viewing this product.

Out of stock

SKU: GP-UD750GM PG5 Categories: , , Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

KEY FEATURE

  • Ultra Durable
    •  Main Japanese capacitors
    •  Enhanced thermal solution
    •  120mm smart hydraulic bearing (HYB) fan
    •  OVP/OPP/SCP/UVP/OCP/OTP protection
  • Support PCIe Gen 5.0 graphics cards
  • Support Intel ATX 3.0 standard
  • 80 PLUS Gold certified
  • Fully modular design
  • Compact design
  • 5 years warranty (Adjusted according to different regions)

SPECIFICATION

  • Model

    GP-UD750GM PG5

  • Type

    Intel Form Factor ATX 12V v3.0

  • PFC

    Active PFC (>0.9 typical)

  • Input Voltage

    100-240 Vac (full range)

  • Input Current

    12-6A

  • Input Frequency

    60-50 Hz

  • Output Capacity

    750W

  • Dimension

    150 x 140 x 86mm

  • Fan Type

    120mm Hydraulic Bearing(HYB)fan

  • 80 PLUS

    Gold

  • Efficiency

    90% at typical load

  • MTBF

    >100,000 hours

  • Protection

    OVP/OPP/SCP/UVP/OCP/OTP

  • Power Good Signal

    100-150ms

  • Hold Up Time

    >16ms

  • Cable Type

    Flat, All black

  • Connectors

    ATX/MB 20+4 Pin x 1 : 610mm*1

    CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

    PCIe 16 Pin x 1: 700mm*1

    PCIe 6+2 Pin x 4 : 600mm+150mm*2

    SATA x 8 :

    600mm+150mm+150mm+150mm*2

    4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1

Weight 1.50 kg
Dimensions 20.00 × 20.00 × 10.00 cm
