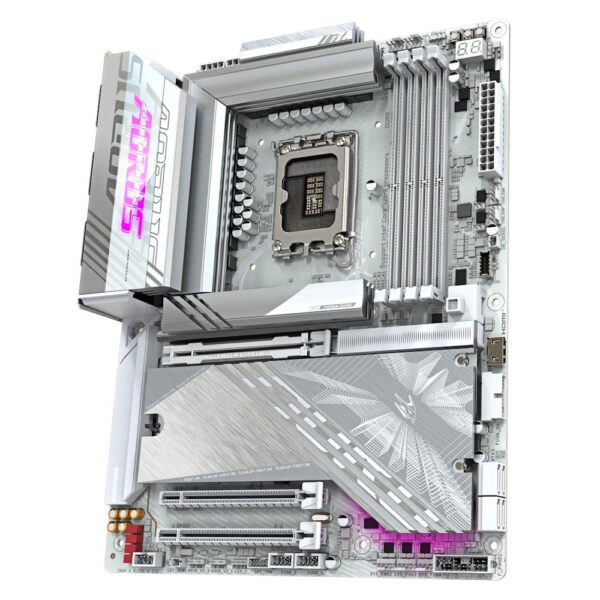

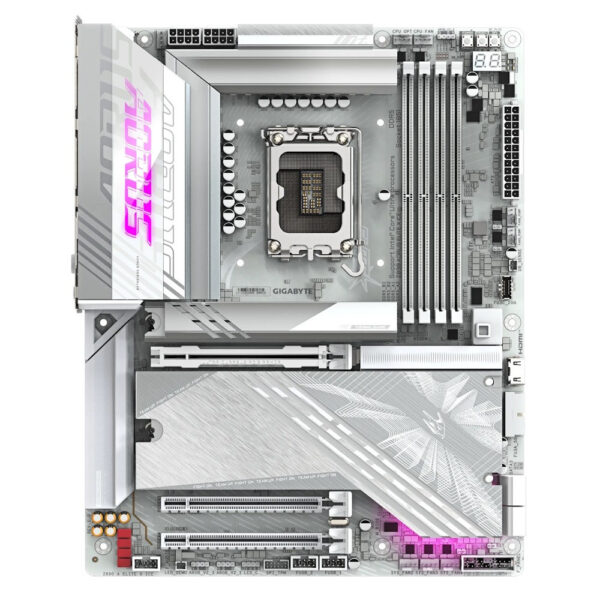

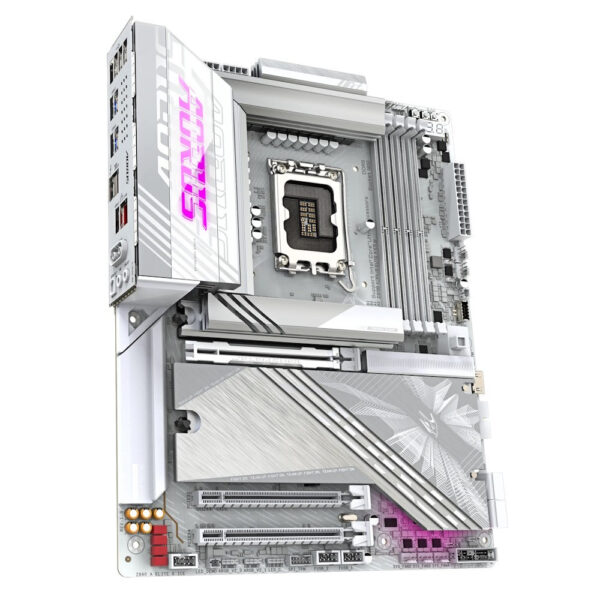

GIGABYTE Z890 AORUS ELITE X ICE (LGA1851) ATX Motherboard

Model : Z890 AORUS ELITE X ICE

CPU
LGA1851 socket: Support for Intel Core Ultra Processor
L3 cache varies with CPU
* Please refer to CPU Support List for more information.

Chipset
Intel Z890 Express Chipset

Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
– 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port),supporting DisplayPort and Thunderbolt video outputs
When a Thunderbolt monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output).
When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, Back Panel Connectors,for more information.)
* Support for DisplayPort 1.4 version and HDCP 2.3
– 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
* Support for HDMI 1.4 version.
(Graphics specifications may vary depending on CPU support.)

Wireless Communication module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard

Expansion Slots
CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)

Storage Interface
CPU:
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
– 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
– 4 x SATA 6Gb/s connectors

Operating System
Support for Windows 11 64-bit

Form Factor
ATX Form Factor; 30.5cm x 24.4cm
