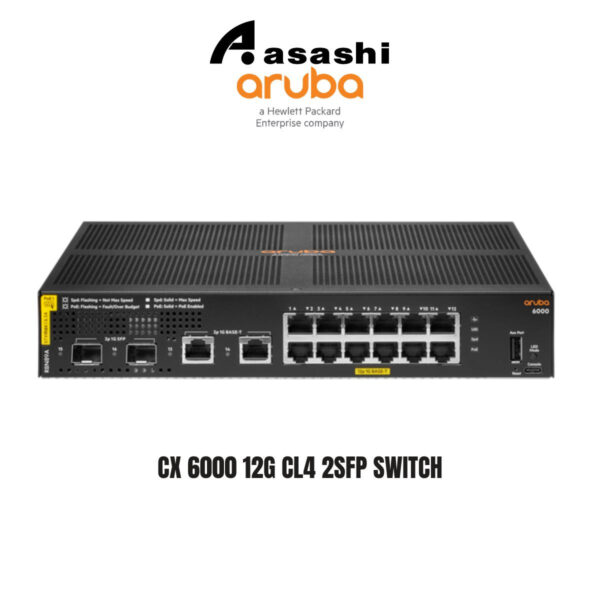

HPE Aruba Networking CX 6000 12G CL4 2SFP Switch
HPE Aruba Networking CX 6000 12G CL4 2SFP Switch

HPE Aruba Networking CX 6000 12G CL4 2SFP Switch

Original price was: RM3,299.00.Current price is: RM3,199.00.

👁 Currently 21 people are viewing this product.

Out of stock

SKU: R8N89A Categories: , , Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

HPE Aruba Aruba Networking CX 6000 12G CL4 2SFP Switch (R8N89A)
I/O ports and slots
12x ports 10/100/1000BASE-T Ports
2x 1G SFP ports
2x 1GbE ports
Supports PoE Standards IEEE 802.3af, 802.3at

1x USB-C Console Port
1x USB Type-A Host port
Power supplies
Fixed power supply
Up to 139W of Class 4 PoE Power
Fans Fanless
Physical Characteristics
Dimensions (H) 4.39 cm
(W) 25.4 cm
(D) 25.5 cm
(1.73" x 10.0" x 10.04")
Weight 2.78 kg (6.13 lbs)
Processor and Memory Dual Core ARM Cortex A9 @ 1016 Mhz, 4 GB DDR3
16 GB eMMC; packet buffer: 12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
Model Switching Capacity 32 Gbps
Model Throughput Capacity 23.8 Mpps
Average Latency (LIFO-64- bytes packets) 1 Gbps: 2.3 μSec
Switched Virtual Interfaces (dual stack) 16
IPv4 Host Table (ARP) 1,024
IPv6 Host Table (ND) 512
IPv4 Unicast Routes 512
IPv6 Unicast Routes 512
MAC Table Capacity 8,192
IGMP Groups 512
MLD Groups 512
IPv4/IPv6/MAC ACL Entries (ingress) 256 / 128 / 256
Environment
Operating temperature 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating relative humidity 15% to 95% at 104°F (40°C) non-condensing
Non-operating -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-operating/ storage relative humidity 15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude 10000 feet (3 km) Max
Max Non-Operating Altitude 15000 feet (4.6 km) Max
Acoustics Sound Power, LWAd = 0 Bel
Sound Pressure, LpAm (Bystander) = 0 dB
Primary Airflow –
Electrical Characteristics
Frequency 50Hz/60Hz
AC voltage 100-127 VAC / 200-240 VAC
Current 1.8 A / 0.9 A
Power Consumption (230 VAC)

Max Power (w/o PoE): 21.9W

Max Power (w/ PoE): 170W
Idle power 16W
Safety
IEC / EN 62368-1: 2014
IEC / EN 62368-1: 2018
UL 62368-1: 2014, 2nd Ed.
CSA C22.2 No. 62368-1:14, 2nd Ed.,
Emissions
VCCI-CISPR 32, Class A
CNS 15936, Class A
FCC CFR 47 Part 15, Class A;
EN 55032:2015 / A11:2020 / CISPR-32, Class A
ICES-003 Issue 7: 2020, Class A
AS/NZS CISPR 32: 2015, Class A
Lasers
IEC / EN 60825-1:2014, Class 1
Class 1 Laser Products / Laser Klasse 1
(Applicable for accessories – Optical Transceivers only)
Weight 3.00 kg
Dimensions 30.00 × 30.00 × 10.00 cm
