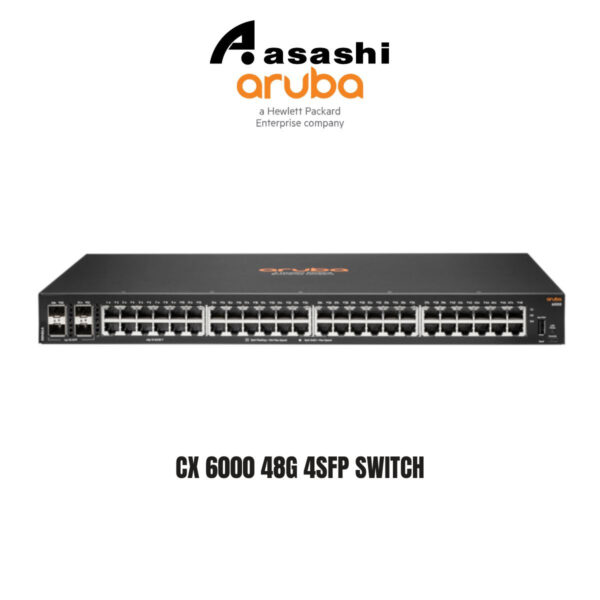

HPE Aruba Networking CX 6000 48G 4SFP Switch
HPE Aruba Networking CX 6000 48G 4SFP Switch

HPE Aruba Networking CX 6000 48G 4SFP Switch

Original price was: RM5,499.00.Current price is: RM5,399.00.

👁 Currently 35 people are viewing this product.

Available on backorder

Add to CompareAdded
SKU: R8N86A Categories: , , Tag: Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

HPE Aruba Aruba Networking CX 6000 48G 4SFP Switch (R8N86A)
I/O ports and slots
48x ports 10/100/1000BASE-T Ports 4x 1G/1G SFP ports
1x USB-C Console Port
1x USB Type-A Host port
Power supplies Fixed power supply
Fans Fixed fans
Physical Characteristics
Dimensions (H) 4.39 cm
(W) 44.2 cm
(D) 24.74 cm
(1.73″ x 17.4″ x 9.74″)
Weight 3.42 kg (7.54 lbs)
Processor and Memory Dual Core ARM Cortex A9 @ 1016 Mhz, 4 GB DDR3
16 GB eMMC; packet buffer: 12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
Model Switching Capacity 104 Gbps
Model Throughput Capacity 77.3 Mpps
Average Latency (LIFO-64- bytes packets) 1 Gbps: 1.9 μSec
Switched Virtual Interfaces (dual stack) 16
IPv4 Host Table (ARP) 1,024
IPv6 Host Table (ND) 512
IPv4 Unicast Routes 512
IPv6 Unicast Routes 512
MAC Table Capacity 8,192
IGMP Groups 512
MLD Groups 512
IPv4/IPv6/MAC ACL Entries (ingress) 256 / 128 / 256
Environment
Operating temperature 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft
(1.5 km) to 10000 ft (3.0 km)
Operating relative humidity 15% to 95% at 104°F (40°C) non-condensing
Non-operating -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-operating/ storage relative humidity 15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude 10000 feet (3 km) Max
Max Non-Operating Altitude 15000 feet (4.6 km) Max
Acoustics Sound Power, LWAd = 4.3 Bel Sound Pressure, LpAm (Bystander) = 29.8 dB
Primary Airflow Side-to-side
Electrical Characteristics
Frequency 50Hz/60Hz
AC voltage 100-127 VAC / 200-240 VAC
Current 4.9 A / 2.4 A
Power Consumption (230 VAC) Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W
Idle power 30.6W
PoE power –
Safety
IEC / EN 62368-1: 2014
IEC / EN 62368-1: 2018
UL 62368-1: 2014, 2nd Ed.,
CSA C22.2 No. 62368-1:14, 2nd Ed.,
Emissions
VCCI-CISPR 32, Class A
CNS 15936, Class A
FCC CFR 47 Part 15, Class A;
EN 55032:2015 / A11:2020 / CISPR-32, Class A
ICES-003 Issue 7: 2020, Class A
AS/NZS CISPR 32: 2015, Class A
Lasers IEC / EN 60825-1:2014, Class 1

Class 1 Laser Products / Laser Klasse 1
(Applicable for accessories – Optical Transceivers only)
Weight 3.50 kg
Dimensions 45.00 × 30.00 × 10.00 cm
