Name: HPE Aruba Networking CX 6100 48G CL4 4SFP+ Switch - A-sashi Technology
SKU: JL675A
Price: 13500.00 MYR
Availability: BackOrder

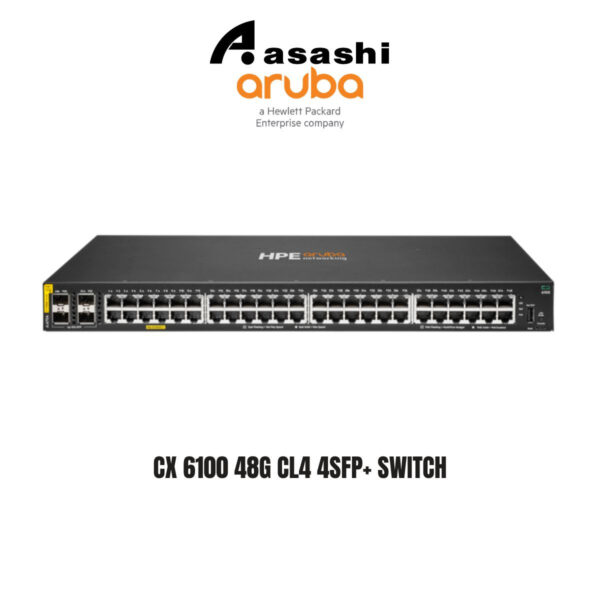

HPE Aruba Networking CX 6100 48G CL4 4SFP+ Switch

👁 Currently 25 people are viewing this product.

Available on backorder

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

Specifications
HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A)
Description	48x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port
Power supplies	Fixed power supply (500W) Up to 370W of Class 4 PoE Power
Fans	Fixed fans
Physical characteristics
Dimensions	(H) 4.39 cm (W) 44.2 cm (D) 30.48 cm (1.73″ x 17.4″ x 12.0″)
Configuration Weight	5.02 kg (11.07 lbs)
Additional Specifications
CPU	Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash	4 GB DDR3 16 GB eMMC
Packet Buffer	12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
Model Switching Capacity	176 Gbps
Model Throughput Capacity	98.6 Mpps
Average Latency (LIFO-64- bytes packets)	1 Gbps: 1.9 μSec , 10 Gbps: 1.8 μSec
Switched Virtual Interfaces (dual stack)	16
IPv4 Host Table (ARP)	1,024
IPv6 Host Table (ND)	512
IPv4 Unicast Routes	512
IPv6 Unicast Routes	512
MAC Table Capacity	8,192
IGMP Groups	512
MLD Groups	512
IPv4/IPv6/MAC ACL Entries (ingress)	256 / 128 / 256

Environment
Operating Temperature	32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity	15% to 95% at 104°F (40°C) non-condensing
Non-Operating	-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity	15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude	10000 feet (3 km) Max
Max Non-Operating Altitude	15000 feet (4.6 km) Max
Acoustic	Sound Power, LWAd = 4.3 Bel Sound Pressure, LpAm (Bystander) = 29.8 dB
Primary Airflow	Side-to-side
Electrical Characteristics
Frequency	50 / 60 Hz
AC Voltage	100-127 VAC / 200-240 VAC
Current	4.9 A / 2.4 A
Power Consumption (230 VAC)	Idle: 30.6W Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W
Safety	IEC / EN 62368-1: 2014 IEC / EN 62368-1: 2018 UL 62368-1: 2014, 2nd Ed., CSA C22.2 No. 62368-1:14, 2nd Ed.,
Emissions	VCCI-CISPR 32, Class A CNS 15936, Class A FCC CFR 47 Part 15, Class A EN 55032:2015 / A11:2020 / CISPR-32, Class A ICES-003 Issue 7: 2020, Class A AS/NZS CISPR 32: 2015, Class A
