2% OFF 🔍

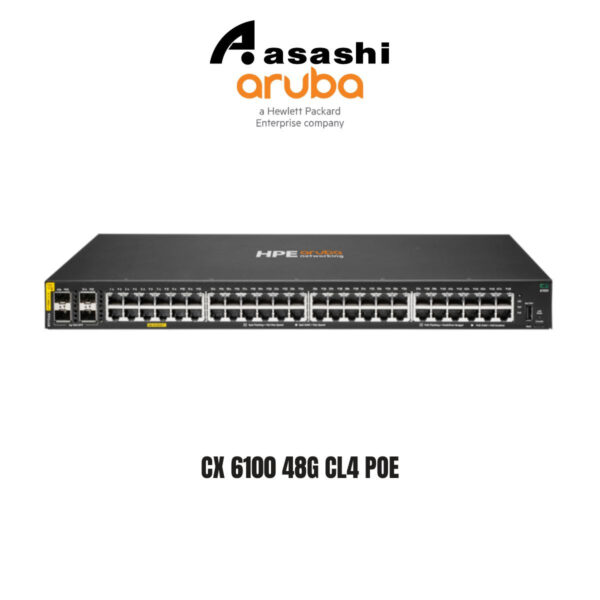

HPE Aruba Networking CX 6100 48G CL4 PoE
HPE Aruba Networking CX 6100 48G CL4 PoE

HPE Aruba Networking CX 6100 48G CL4 PoE

Original price was: RM21,400.00.Current price is: RM21,000.00.

👁 Currently 19 people are viewing this product.

Available on backorder

Add to CompareAdded
SKU: R9Y04A Categories: , , Tag: Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

HPE Aruba Networking CX 6100 48G CL4 4SFP+ 740W Sw (R9Y04A)
Specifications
Description
48x ports 10/100/1000BASE-T Class 4 PoE Ports
Supports PoE Standards IEEE 802.3af, 802.3at
4x 1/10G SFP Ports
1x USB-C console port
1x USB Type-A Host port
Power supplies
Fixed power supply (950 W)
Fans
Fixed fans
Physical characteristics
Dimensions
(H) 4.39 cm x
(W) 44.25 cm x
(D) 32.42 cm
(1.73″ x 17.42″ x 12.77″)
Configuration Weight
4.7 kg (10.36 lbs)
Additional Specifications
CPU
Dual Core ARM CortexTM A9 @ 1016 MHz
Memory and Flash
4 GB DDR3
16GB eMMC
128 MB Flash ROM
Packet Buffer
12.38MB and
4.5MB Ingress/7.875MB Egress
Performance
Model Switching Capacity
176 Gbps
Model Throughput Capacity
98.6 Mpps
Average Latency (LIFO-64-bytes packets)
1Gbps: 1.9 µs
10Gbps: 1.8 µs
Switched Virtual Interfaces (dual stack)
16
IPv4 Host Table (ARP)
1,024
IPv6 Host Table (ND)
512
IPv4 Unicast Routes
512
IPv6 Unicast Routes
512
MAC Table Capacity
8,192
IGMP Groups
512
MLD Groups
512
IPv4/IPv6/MAC ACL Entries (ingress)
256/128/256
Environment
Operating Temperature
32°F to 113°F (0°C to 45°C) up to 5000 ft derate -1°C for every 1000 ft from 5000 ft to 10000 ft
Operating Relative Humidity
5% to 95% at 104°F (40°C) non-condensing
Non-Operating
-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Non-Operating Storage Relative Humidity
5% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude
10000 feet (3 km) Max
Max Non-Operating Altitude
15000 feet (4.6 km) Max
Acoustic
Sound Power, LWAd = 4.95 Bel
Sound Pressure, LpAm (Bystander)
= 35.91 dB
Primary Airflow
Side-to-side
Electrical Characteristics
Frequency
50 / 60 Hz
AC Voltage
100-127 VAC / 200-240 VAC
Current
9.2 A / 4.9 A
Power Consumption
(230 VAC)
Idle: 37.5W
Max Power (w/o PoE): 49.7W
Max Power (w/ PoE): 890W
Safety
IEC / EN 62368-1: 2014
IEC / EN 62368-1: 2018
UL 62368-1: 2014, 2nd Ed.,
CSA C22.2 No. 62368-1:14, 2nd Ed.,
Emissions
VCCI-CISPR 32, Class A
CNS 15936, Class A
FCC CFR 47 Part 15, Class A;
EN 55032:2015 / A11:2020 / CISPR-32, Class A
ICES-003 Issue 7: 2020, Class A
AS/NZS CISPR 32: 2015, Class A
Lasers
IEC / EN 60825-1:2014, Class 1
Class 1 Laser Products / Laser Klasse 1
(Applicable for accessories – Optical Transceivers only)
Weight 4.80 kg
Dimensions 45.00 × 35.00 × 10.00 cm
