Name: HPE Aruba Networking Instant On 1830 24G 2SFP Switch - A-sashi Technology
SKU: JL812A
Price: 1019.00 MYR
Availability: BackOrder

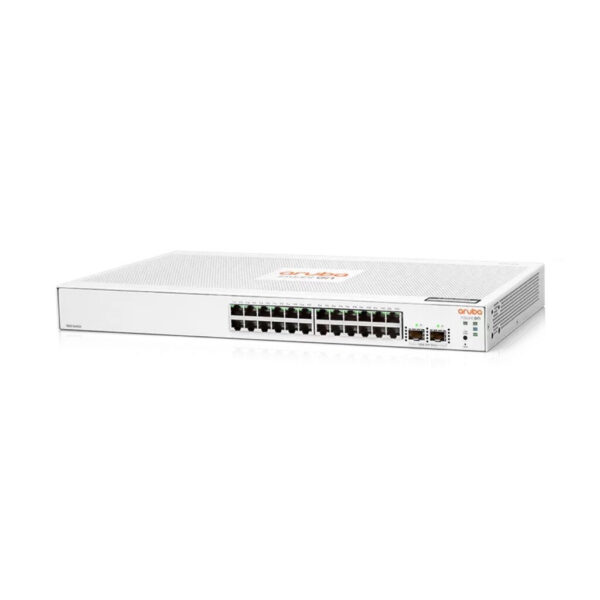

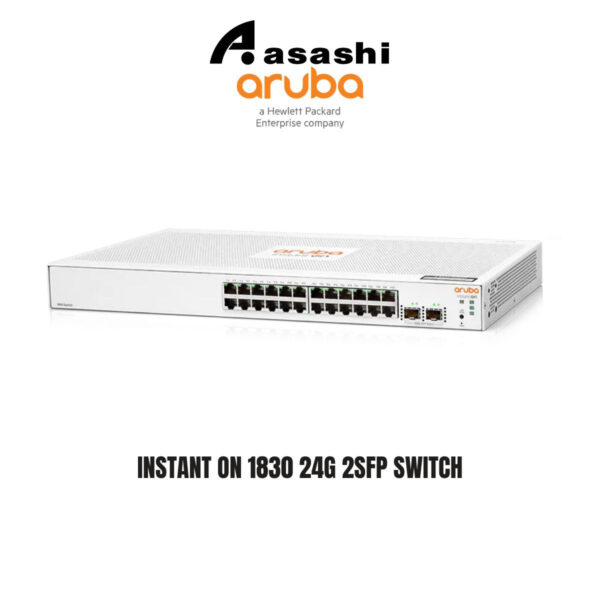

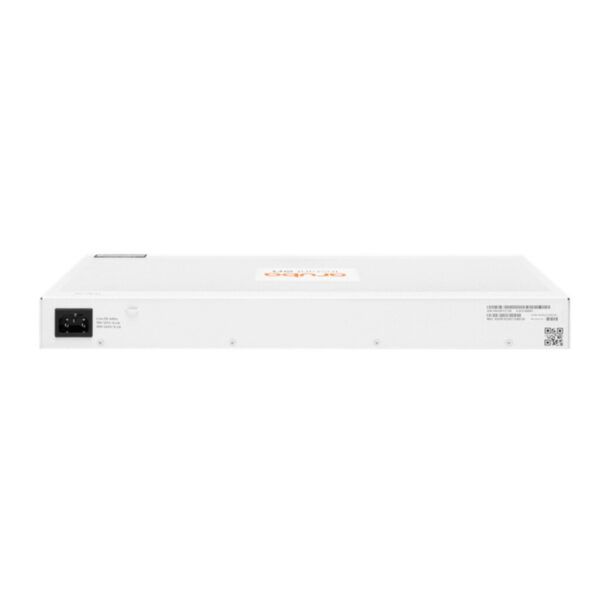

HPE Aruba Networking Instant On 1830 24G 2SFP Switch

👁 Currently 26 people are viewing this product.

Gigabit Copper Ports : 24
Uplinks : 2 SFP 1GbE ports
Dimensions : 215.9(D) x 443.0(W) x 43.9(H) mm
Weight : 5.50 lb (2.49 kg)
Throughput (Mpps) : 38.68 Mpps
Switching capacity : 52 Gbps
Reliability MTBF (years) : 203.6
Maximum power rating : 100-127V: 19.1W
200-220V: 19W
Warranty : Limited Lifetime Warranty

Available on backorder

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

HPE Networking Instant On 1830 24G 2SFP Switch (JL812A)
I/O ports and slots	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports
Physical Characteristics
Dimensions	215.9(d) x 443.0(w) x 43.9(h) mm
Weight	5.50 lb (2.49 kg)
Processor and Memory	ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
Performance
100 Mb latency	< 5.2 uSec
1000 Mb latency	< 2.8 uSec
10000 Mb latency	n/a
Throughput (Mpps)	38.68 Mpps
Capacity	52 Gbps
MAC address table size (# of entries)	16,000 entries
Reliability MTBF (years)	203.6
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)
Operating relative humidity	15% to 95% @ 104°F (40°C)
Nonoperating/ storage temperature	-40°F to 158°F (-40°C to 70°C)
Nonoperating/ storage relative humidity	15% to 95% @ 140°F (60°C)
Altitude	up to 10,000 ft (3 km)
Acoustics	Fanless
100% traffic	Fanless
100% traffic / 0% PoE	Fanless
100% traffic / 50% PoE	Fanless
100% traffic / 100% PoE	Fanless
Electrical Characteristics
Frequency	50Hz/60Hz
AC voltage	100-127VAC / 200- 240VAC
Current	0.4A/0.3A
Maximum power rating	100-127V: 19.1W 200-220V: 19W
Idle power	100-127V: 7.6W 200-220V: 7.8W
PoE power	–
Power supply	Internal power supply
Safety	EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. L 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1
Emissions	EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A
