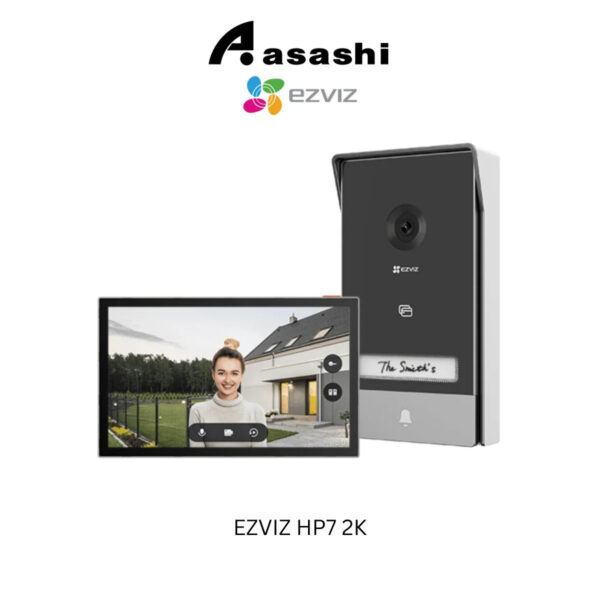

(INSTALLATION INCLUDED) EZVIZ HP7 2K Smart Home Video Doorphone

CS-HP7-R105-1W2TFC

1/2.7" Progressive Scan CMOS (Supports low light sensitivity)

2.0 mm @ F2.2,viewing angle: 162° (Diagonal)

IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)

2048 × 1296

2D / 3D DNR

H.265 / H.264

Max: 15fps; Self-Adaptive during network transmission

Wired connection (2-Wired, capable with 4-Wired), digital signal transmission

Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m

Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A

Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual.

1.RFID badge unlock (Badges × 3 pcs) 2.App remote unlock 3.Indoor display unlock

Built-in high-sensitivity microphone

Built-in high-power speaker

Yes. The light can be set on or off.

Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off.

Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.

Smart human motion detection, Lingering Detection

Supports

Long-distance video two-way talk

-30°C to 60°C , Humidity 95% or less (non-condensing)

Waterproof, with shield cover

161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch)

7” touch screen

1024 × 600

Built-in high-sensitivity microphone

Built-in high-power speaker

Screen On / Off Button

Two wiring ports to connect 1st outdoor doorbell.

Supports microSD card up to 512 GB

Supports EZVIZ Cloud storage

EZVIZ Cloud Proprietary Protocol

EZVIZ Cloud Proprietary Protocol

EZVIZ Connect Protocol

IEEE802.11b, 802.11g, 802.11n, 802.11ac

2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz

Supports 20MHz

64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK

11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps

Up to 20 ringtones

Live view, playback, two-way talk, video call

-10°C to 45°C, humidity 95% or less (non-condensing)

Net weight: 855 g (30.16 oz) With package: 1825 g (64.37 oz)

180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)

DC 24V / 1A power supply, adaptor (100- 240Vac)

8W, Max. 24W

– Monitor

– Wall Bracket for Monitor

– Power Adapter for Monitor

– Drill Template for Monitor

– Intercom Panel

– Drill Template for Intercom Panel

– Screwdriver

– Badges (×3)

– Screw Kit (×2)

– Name Card (×2)

– Wires and Wire Connectors

– DC 24V Power Supply Jack Connector Cable

– Regulatory Information (×2)

– Quick Start Guide

CE / REACH / WEEE / RoHS
