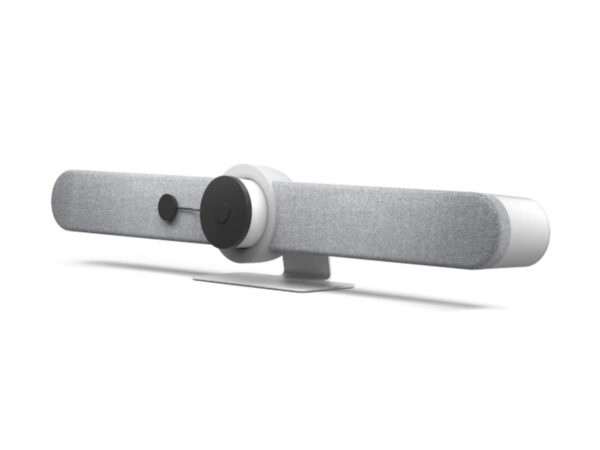

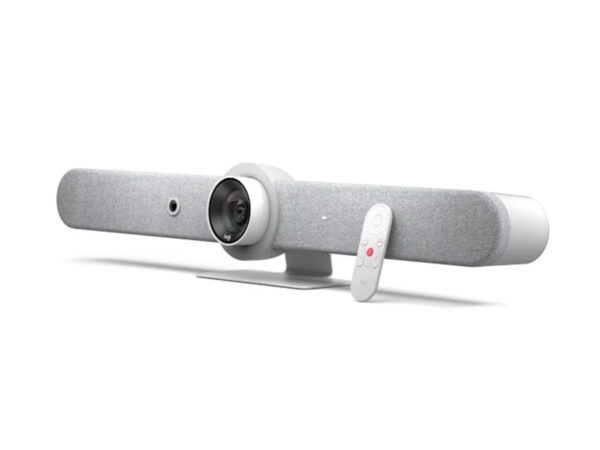

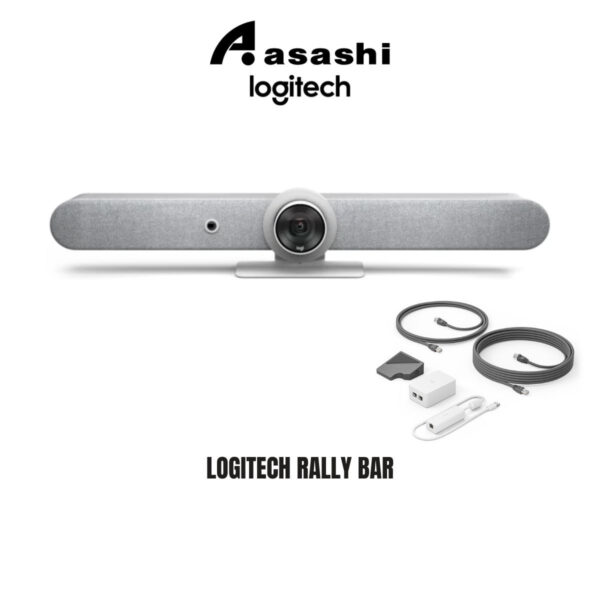

Logitech Rally Bar – White (960-001324) + Logitech TAP with Cat5e Kit 939-001950

Logitech Rally Bar

Dimensions

Height: 164 mm

Width: 910 mm

Depth: 130.5 mm

Lens Depth: 28.8 mm

Weight: 7.08 kg

General Specifications

• Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform

• Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference

• Device Management: Logitech Sync

• Displays Supported: 2

• Display Resolution: Up to 1080p

• Network Protocol Support: IPv4, IPv6

• Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera

• Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps

• Pan: Motorized ±25°

• Tilt: Motorized ±15°

• Zoom: 15X HD zoom (5X optical and 3X digital)

• Diagonal Field of View: 90°

• Horizontal Field of View: 82.1°

• Vertical Field of View: 52.2°

• Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical

Speakers

• Drivers: 2x 70 mm

• Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter

• Rated Power: 8W

• THD: 1kHz < 2% at 1W

• Speaker Sampling Rate: 48 kHz

• Impedance: 4 Ohms

Microphones

• Frequency Response: 90Hz – 16kHz

• Sensitivity: >-36dBFS +/-1 dB @ 1Pa

• Microphone data rate output: 48KHz

• Pickup Range: Up to 7 m

• Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams

• Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)

• Noise suppression: AI based de-noising algorithm

• Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

RightSense Technologies

• RightLight: Renders natural skin tones for each participant

• RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room

• RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

• Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences.

Interfaces

• HDMI Out: 2 (up to 1080p)

• HDMI In: 1

• USB: 3x Type A, 1x Type C

• Network: 10/100/1G Ethernet

• WiFi: 802.11a/b/g/n/ac

• External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)

• Remote Control: Bluetooth® Low Energy

Power & Cables

• Power supply: Auto-sensing

• Operating Voltage/Power: 100-240V, 19V, 4.74A

• Power Supply Dimensions: 127 mm x 51 mm x 30 mm

• DC Cable: 1.5 m

• AC Cable: 1 m

• HDMI 1.4 Cable: 2 m

• USB A to USB C 3.0 Cable: 2.2 m

Environmental

• Operating Temperature: 0 to 40°C

• Storage Temperature: -40 to 70 °C

• Humidity: 10 to 95%

• BTU/hr: 57 idle, 64 in meeting

Security

• Full Disk Encryption: AES-128

• Data Encryption: Symmetric Keys, PKI

• Device Identity: Protected by device attestation

• Device Access: Authenticated using API

• Key Protection: Arm TrustZone, RPMP

Accessories

• Mounts: Wall Mount for Video Bars, TV Mount for Video Bars

• Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable

• Connectivity: Logitech Strong USB (10m, 25m, 45m)

• Touch Controller: Logitech Tap and Tap IP
