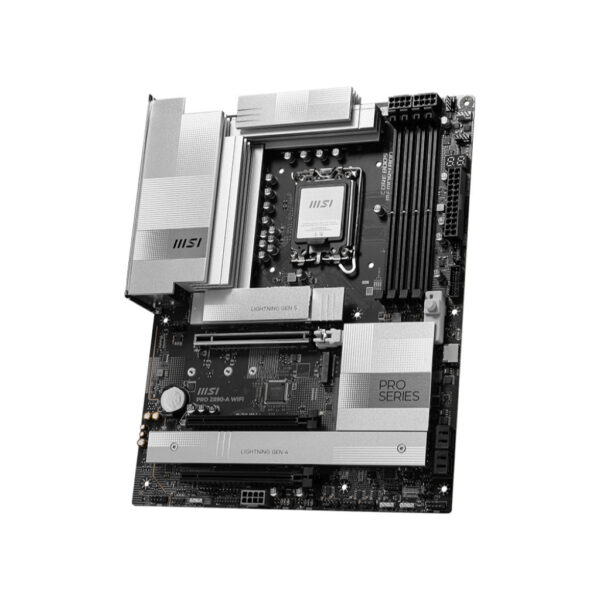

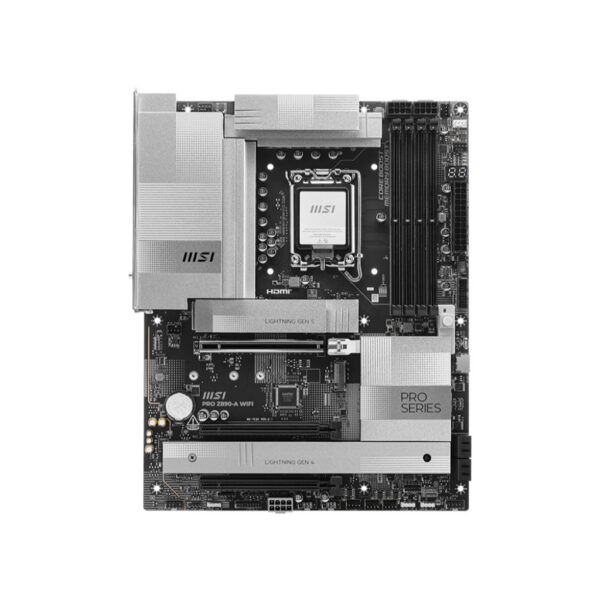

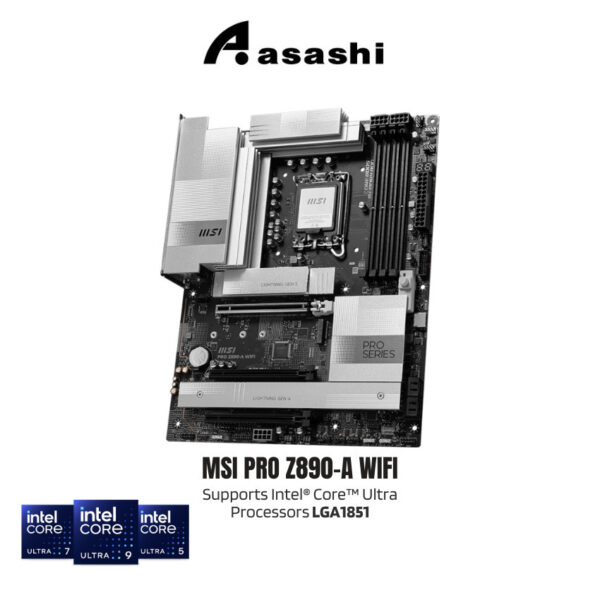

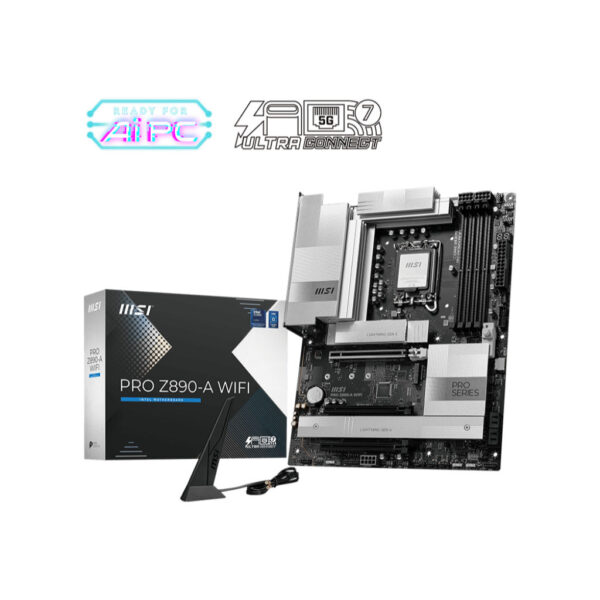

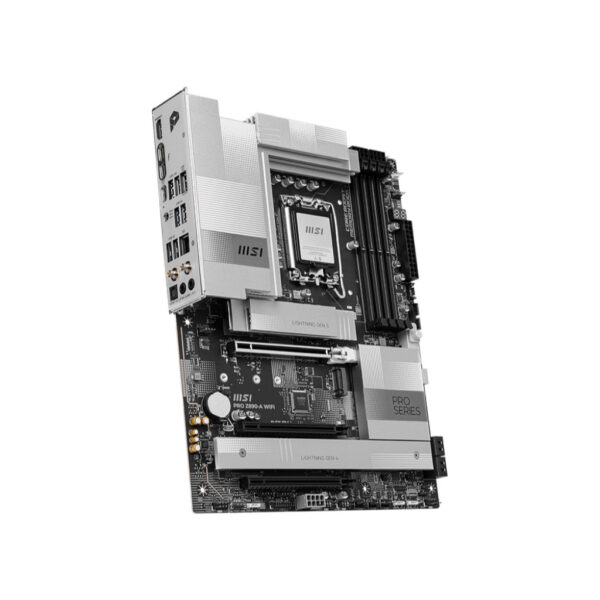

MSI PRO Z890-A WIFI DDR5 D5 LGA1851 ATX MOTHERBOARD

ChipsetINTEL Z890
CPUSupports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics1x HDMI™
Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*
2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
AudioRealtek® ALC1220P
7.1-Channel High Definition Audio
Supports S/PDIF output
Storage4x M.2
4x SATA 6G
Onboard Thunderbolt2x Thunderbolt4 ports (Rear)
Support up to 40Gbps transfer rate with Thunderbolt devices
Support up to 20Gbps transfer rate with USB4 devices
Support up to 10Gbps transfer rate with USB 3.2 devices
Support up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Support up to 8K display
USB4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LANRealtek® 8126 5Gbps LAN
Internal IO1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Aud
