Name: North Bayou NBSP2 40 to 70 Inch 180° Rotation Cantilever TV Wall Mount Bracket - A-sashi Technology
SKU: NB-NBSP2
Price: 359.00 MYR
Availability: OutOfStock

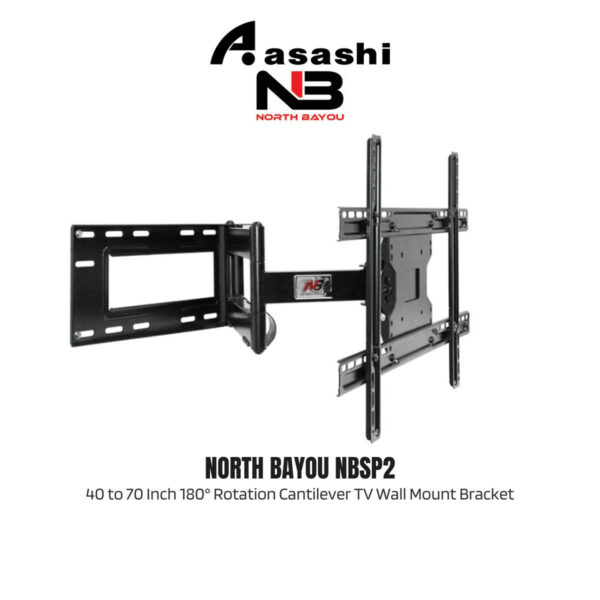

North Bayou NBSP2 40 to 70 Inch 180° Rotation Cantilever TV Wall Mount Bracket

10 Sold

👁 Currently 23 people are viewing this product.

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

Highlights

Fits most 40” to 70” flat panel TV
VESA compliance: 200x100mm, 200x200mm, 400x200mm 300x300mm, 400x400mm, 600x400mm
Load capacity: 150 lbs (68.2kg)
Tilt angle: -5° / + 150°

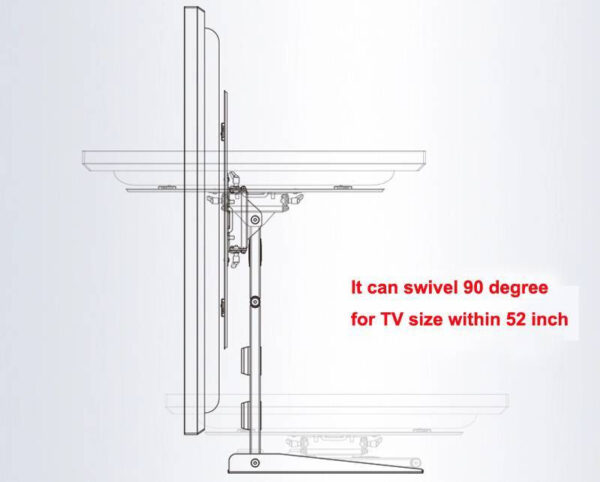

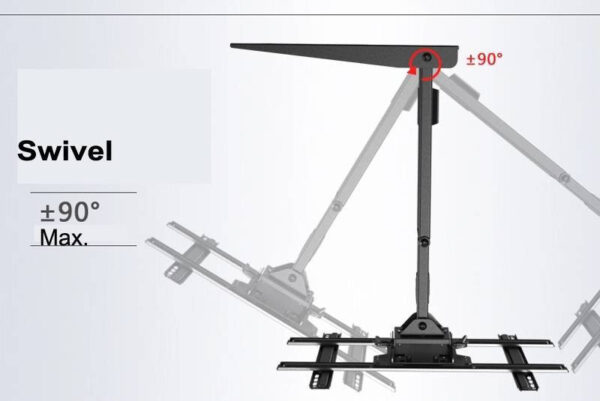

Swivel: 180°
Color: Black
Material: SPCC with coating finished

Product Description

NB North Bayou NBSP2 Cantilever mount is designed and cater for current market's LCD, LED flat panel TV screens. Designed with space saver, this wall mount is suitable for home use and commercial. Its high tensile rigidness, trendy and dynamic looked offered you the best of viewing temptation. Hang free at any tilting angles.

Feature

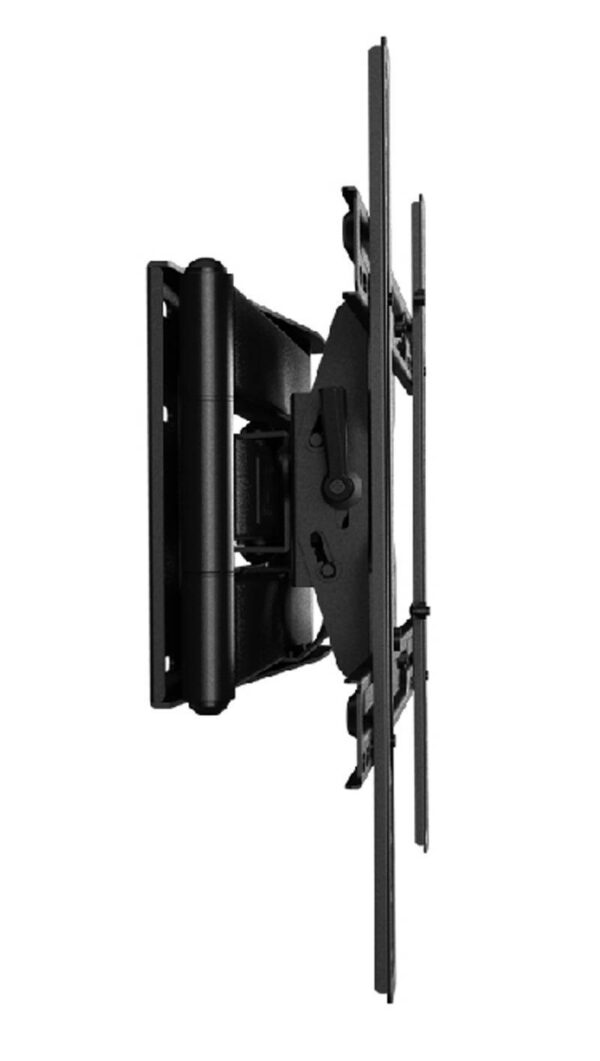

-This full motion cantilever mount can be used anywhere but its "Z" arm design makes it prefect for corner installs

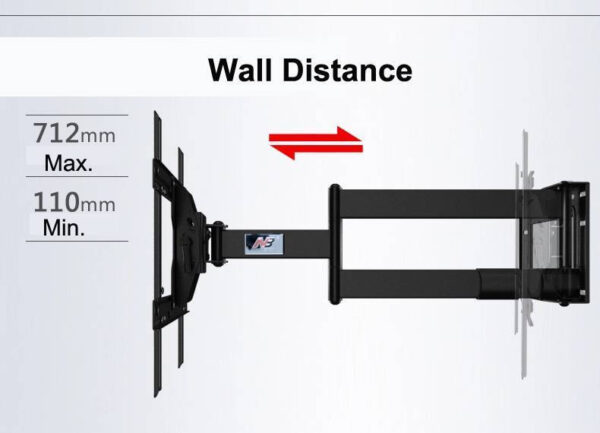

-It extends from 110mm to 712mm off the wall.

-Near 180 degrees of motion.

-As standard, VESA sizes from 100 to 400 are supported.

-The included mounting arms can accommodate up to 650mm x 400mm.

-The optional UL400 adapter plate can be used instead of the arms for VESA 300 and 400 (if a smaller plate is required).

-This mount includes hardware for mounting to concrete, solid block, or wooden studs and a selection of screws to fit most TVs

Model		NB North Bayou NBSP2
Screen Size		Fits most 40” to 70”
VESA Compliance		200x100mm, 200x200mm, 400x200mm 300x300mm, 400x400mm, 600x400mm

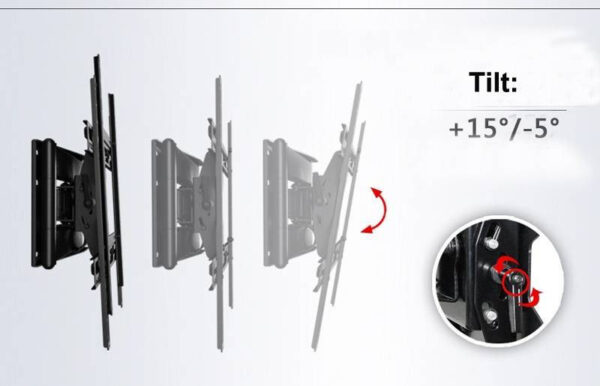

Tilt Angle	Swivel Angle	-5°/+15°	100°/ 140°

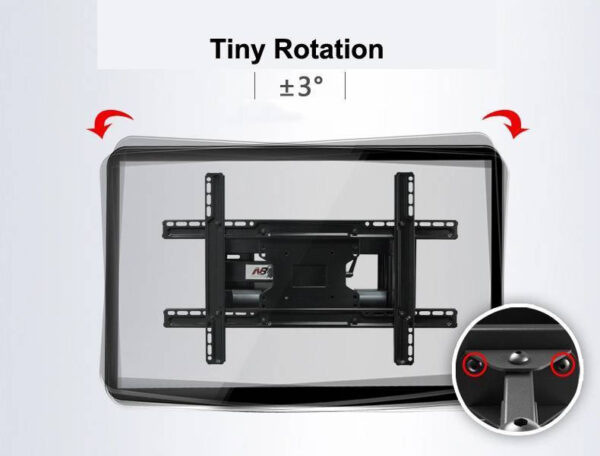

Roll Angles		+/- 4 degrees rotation

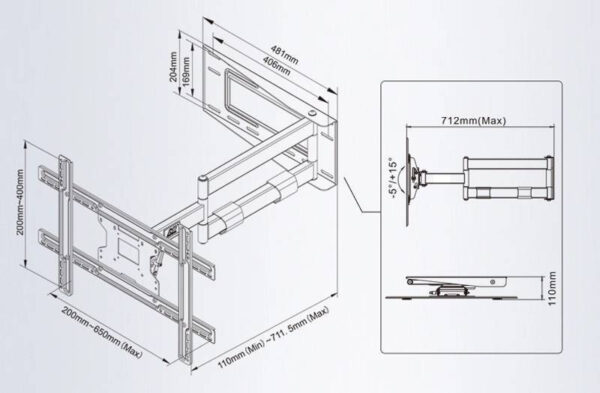

Full Extension		110-712 mm
Support Weight Capacity		150 lbs (68.2 kg)
Material \| Finished \| Colour		Precise seamless pipe, SPCC \| Coating finished \| Black
Packing Weight		9.8 kg
Packing Dimension		675255105mm
Warranty		1-year Local Manufacturer Warranty
Note		-Please allow 1-3mm differs due to manual measurement. -Due to the different display and different light, the picture may not show the actual colour of the item.
Package Include		1 x NB North Bayou® NBSP2 Cantilever Mount 1 x Installation Guide 1 x Screw Kits
