The AZH430UST is one of Optoma's most compact and hassle-free Full HD DuraCore laser ultra short throw projectors to date. Designed for maintenance-free continuous operation, this 4,000-lumen projector delivers powerful and eye catching image performance, perfect for meeting rooms and classrooms, the AZH430UST is designed to be used at any time of day.
Energy-saving DuraCore laser technology ensures a long product lifespan of up to 30,000 hours without the need for additional lamps, requires minimal maintenance, and is mercury-free, further lowering its carbon footprint. Designed with the environment in mind, the eco-friendly packaging contains up to 97% recyclable materials.
Installation and setup are simple with four corner adjustment and the added benefit of an external power supply, offering more reliability, portability and energy efficiency.
Designed with the environment in mind, the eco-friendly chassis design is made with up to 50% PCR (Post-Consumer Recycled) plastics and the packaging contains up to 97% recyclable materials.³ In addition, the compact product and packaging size of the Optoma AZH430UST projector allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.¹
Geared for conference rooms, boardrooms, and other corporate spaces, the AZH430UST features an ultra short throw lens meaning it can project a 100” image from less than 0.5m away, avoiding shadows being cast across the screen from the presenter(s). For ultimate convenience it comes with an RS232 connection for monitoring and controlling and a built-in speaker.
Bright Full HD 1080p projector – 4000 lumens
Ultra short throw lens – 100" image from less than half a metre away
Ultimate control – Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
DuraCore laser technology – 30,000 hours maintenance-free laser light source
Ultra Short Throw
With an ultra-short throw lens, you can project an impressive image greater than 100” from less than a metre away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease; perfect for interactive applications.
Crafted for Excellence: Business and Education Solutions
Ultra Short Throw (UST) provides unmatched advantages in confined spaces. UST's ability to display large, clear images when situated near the screen eliminates shadow interferences during presentations in huddle rooms and classrooms.
Crafted for Excellence: Exhibitions and Advertising Solutions
The projector's 360-degree flexible and its vertical rotation allows projection on ceilings, walls, or floors. Its portrait mode expands its uses for projection mapping, exhibitions, and advertising.
Brighter Performance
With the high lumens brightness, it is definitely the best choice in medium-sized spaces. Lights on viewing, vibrant in all conditions.
Full HD 1080p
1080p resolution gives you sharp and detailed images from HD content without downscaling or compression.
*4K inputs compatible
4K & HDR Compatible
High dynamic range (HDR) technology improves contrast ratio, brightness, and color depth on the display, delivers brighter whites and deeper black levels. It enhances the details and depth of field, making the images clearer and more realistic.
Integrated speaker
Complete your home entertainment experience with the convenience of a powerful built-in speaker for exceptional sound quality and an easy set up without the need for costly external speakers.
Four corner correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for uneven walls or where projector placement is awkward and needs to be installed at an angle.
Compact and Reliable
Designed with simplicity in mind, Optoma dedicates to minimizing the product size and optimizing the component to be compact yet reliable enough for daily use.
Replace the thermal module with the heatsink. The latest phosphor wheel is optimized from 54mm to 47mm compared to the previous-gen. Remove the LVPS and replace it with an power adapter, which is easily to be repaired and replaced.
Dual HDMI inputs
With dual HDMI inputs, you can connect to different devices such as your set-top box, laptop, PC, Blu-ray player or media streamer easily by assigning them to different ports. There is no need for continuous plug or unplugging when switching devices, making presentation and display hassle-free. You can even turn it into a smart projector by connecting an HDMI dongle like Google Chromecast™, Amazon Fire TV, Apple TV™ or Roku® stick.
Device Control by HDMI CEC Link
When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI Link feature. This lets one device or multiple devices in a group power on/off simultaneously.
Optoma Management Suite™
A value-added solution, OMS provides IT administrators and technicians with an array of options to support daily operations, such as real-time monitoring of product performance so potential issues can be diagnosed and solved before they turn into failures. Additionally, users can broadcast or schedule alerts and messages across displays and remotely program and schedule device operating hours, reducing energy consumption and lowering operating costs.*
*OMS is an ever-evolving platform with features and functions being added over time. For the latest feature set please check with your local sales representative or check our website .
Optoma DURACORE Made for Environmental Sustainability
Designed with environmental friendliness in mind, Optoma is dedicated to providing eco-friendly, cost-effective, and reliable products, that bring better experiences to people all around the world. With the future-proofed laser technology, our products are energy-saving, mercury-free, and more economical.
IP6X Airtight optical engine
Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
Eco-friendly laser light source
With the latest laser technology and higher power conversion efficiency, the product saves up to 47% of power consumption compared with a lamp-based projector at similar capacity
Mercury Free
High power consumption and mercury pollution in traditional lamp-based projectors are gradually replaced with more reliable, mercury-free, and eco-friendly lamp-free laser projectors.
Maintenance Free & Economical
Laser projectors are durable with up to 30,000 hrs. life span (eco) and 24/7 operation, which save cost on the lamp replacements, and has a long-term lifespan for any professional applications.
Designed with sustainability in mind – Optoma Green Badge
Optoma is a forerunner in green product design. Optoma’s SSI products take things a step further with sustainability incorporated into all aspects of a product, including design, production, packaging, and logistics .
Optoma Green Badge represents Optoma’s commitment to sustainability. Our primary ways of lowering the environmental impact of our products are centered on four areas.
The use of environmentally friendly materials generate less waste
The use of environmentally friendly materials for products and during production.
According to UK Plastics Pack 2022, it takes 75% less energy to make a plastic bottle from recycled plastic than virgin materials. Our product design team works closely with suppliers to identify environmentally friendly recycled materials that minimize waste that would otherwise go into landfills and reduce the use of virgin plastics. Optoma is committed to producing SSI-based projectors that are made with 50 % post-consumer recycled (PCR) plastics.
Moreover, Optoma complies with WEEE, RoHS, and REACH regulations that restrict the use of hazardous substances during production, which helps protect landfills from permanent contamination.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Amazing colour
Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.
360 projection*
Images can be projected over a 360° range* along the projector’s horizontal axis.
*For more information please refer to the user manual
Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
Quick start-up and shutdown
This projector features quick start-up and shutdown and reaches full brightness quickly. To maximise energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.
Low Noise: Quieter than a Whisper
Less than 30 dB in ECO mode.
Display/image
Display technology
DLP™
Resolution
1080p Full HD (1920×1080)
Brightness
4,000 lumens
Contrast ratio
300,000:1
Contrast ratio – dynamic
2,000,000:1
Native aspect ratio
16:9
Aspect ratio – compatible
4:3,16:9
Keystone correction – horizontal
+/-5°
Keystone correction – vertical
+/-5°
Displayable colours (millions)
1073.4
Horizontal scan rate
15 ~ 140Khz
Vertical scan rate
24 ~ 120Hz
Uniformity
75%
Screen size
2.03m ~ 3.3m (80" ~ 130") diagonal
Lamp info
Light source type
DuraCore Laser
LASER life
30,000 hours
Optical
Throw ratio
0.253:1
Projection distance
0.17m – 0.45m
Focal length
-3.70mm
Connectivity

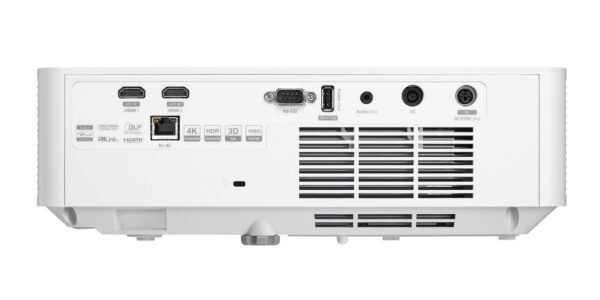

Connections
Inputs 2 x HDMI 2.0
Outputs 1 x USB-A power 1.5A, 1 x Audio 3.5mm, 1 x 3D sync
Control 1 x RS232, 1 x RJ45
General
Noise level (min)
27dB
Noise level (max)
34dB
PC compatibility
UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
3D compatibility
Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D)
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
IP rating
IP6X
OSD / display languages
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation
Yes
360° operation
Yes
Operating conditions
0°C~40°C, max altitude 10,000ft
Remote control
Card style
Heat dissipation
691BTU/hour
Speaker count
1
Watts per speaker
15W
In the box
AC power cord
Networking
LAN – control
Yes
LAN
Yes
Power
Power supply
External power supply, 180W DC 19.5V, 9.23A
Power consumption (standby)
<0.5W
Power consumption (min)
139.15W
Power consumption (max)
202.4W
Weight and dimensions
Dimensions (W x D x H)
327 x 327 x 109.6
Gross weight
6.08 kg
Net weight
3.9 kg
