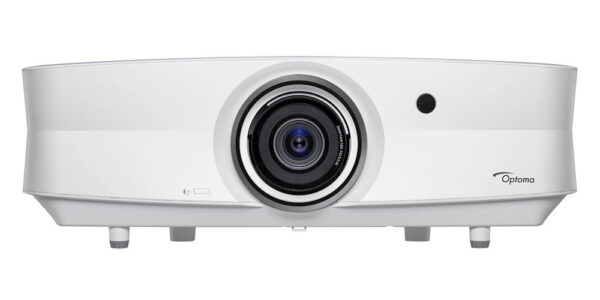

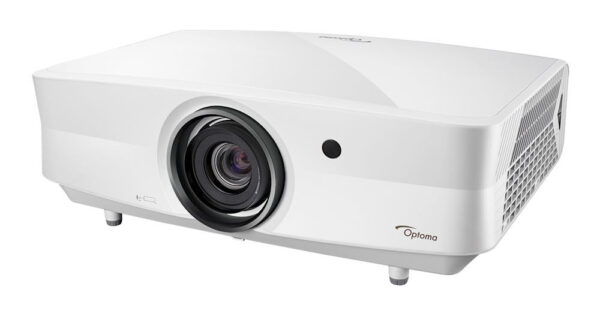

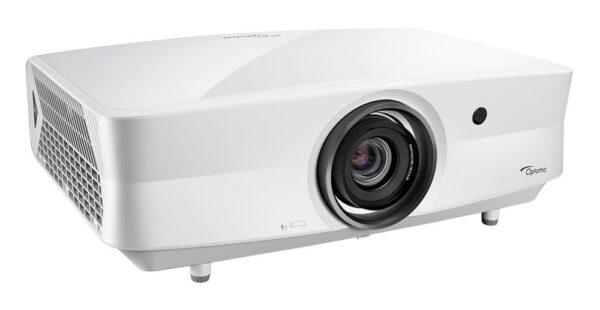

The ZK507 4K ultra HD laser projector is perfect for large venues, education, museums, houses of worship and anywhere a clean bright image is required.
Packed full of features this advanced laser projector comes with a huge 1.6x zoom and vertical lens shift making it easy to install. It also come with PureMotion frame-interpolation processing which eliminates motion blurring or image judder, a built in speaker, it’s HDR compatible and has an extremely long-life laser reducing your total cost of ownership.
For ultimate control, the projector comes with RJ45 connection allowing you to monitor and control your network in multiple rooms.
Bright 4K UHD laser projector – 5000 lumens
HDR Compatible
1.6 x zoom, vertical lens shift
30,000 hours maintenance-free laser light source
DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
True 4K UHD Resolution
Ultra HD 4K resolution delivers sharper, life-like images and richer colours – allowing you to sit closer to the screen and enjoy a more immersive experience.
Our DLP projectors provide CTA (Consumer Technology Association) approved True 4K UHD resolution, capable of projecting 8.3 million on screen pixels. That's four times more detail than Full HD and twice as many from competing technology, which only delivers 4.1 million pixels.

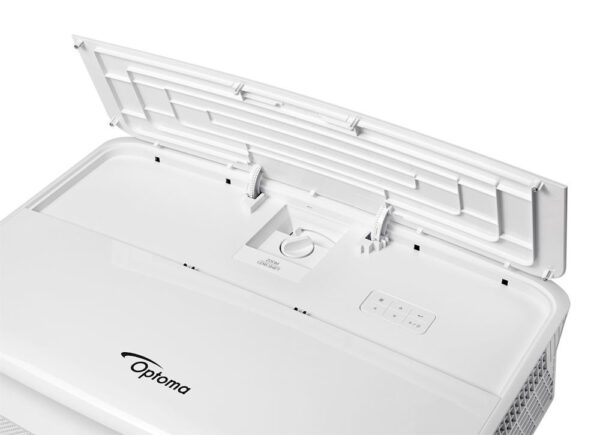

Vertical Lens Shift
Simplify installation with vertical lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.
Integrated speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used
24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.
24/7 Operation – standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.
Direct power off
Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.
Direct power on
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
Superior contrast
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear – ideal for business and education applications.
PureMotion
PureMotion Using sophisticated frame-interpolation technology, advanced motion control processing eliminates motion blurring or image judder, even in high-speed action sequences.
PJLink
PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.
UltraDetail
This technology ensures all the information contained in an image is faithfully reproduced on the screen giving a stunning crystal clear, pin-sharp picture.
Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
USB-Power
Use the USB-A port to power an HDMI dongle, such as Google Chromecast.
HDR compatible
Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.
Amazing colour
Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.
AV mute
Stay in control of your presentation with AV mute. Direct your audience's attention away from the screen by blanking the image when not needed.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Customise your projector
Have your projector in any colour. Choose from any RAL colour. Perfect for bespoke installations. *Contact us for more information
Control
Featuring a wide range of options you can control and monitor the projector remotely.
• RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible Allows for easy installation with Extron control systems
Display/image
Display technology
DLP™
Resolution
UHD (3840×2160)
Brightness
5,000 lumens
Contrast ratio
300,000:1
Native aspect ratio
16:9
Aspect ratio – compatible
4:3,16:9
Displayable colours (millions)
1073.4
Horizontal scan rate
31 ~ 135Khz
Vertical scan rate
24 ~ 120Hz
Uniformity
70%
Screen size
0.67m ~ 7.68m (26.45" ~ 302.2") diagonal
Lamp info
Light source type
DuraCore Laser
LASER life
30,000 hours
Optical
Throw ratio
1.39:1 ~ 2.22:1
Projection distance
1.3m – 9.3m
Zoom
1.6
Zoom type
Manual
Focal length
20.91mm~32.62mm/0.823"~1.284"
Lens shift
Vertical +15%, Horizontal: +/-0%
Native offset
100%
Lens shift
Yes – see product downloads for more information
Connectivity

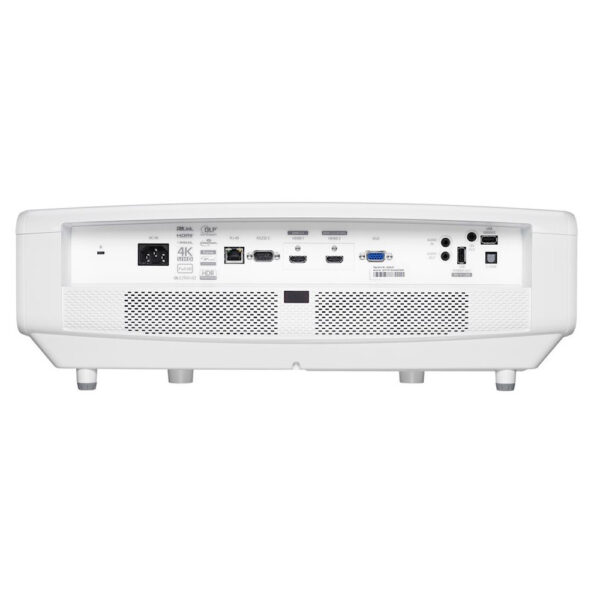

Connections
Inputs 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Audio 3.5mm
Outputs 1 x Audio 3.5mm, 1 x S/PDIF, 1 x USB-A power 1.5A
Control 1 x USB-A service, 1 x RS232, 1 x RJ45, 1 x 12V trigger
General
Noise level (min)
30dB
Noise level (max)
32dB
PC compatibility
UHD, WUXGA, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
UHD: 2160p(24/50/60Hz) / HDTV: 720p(50/60Hz), 1080i(50/60Hz), 1080p(24/50/60Hz) / SDTV : 480i/p, 576i/p
3D compatibility
Frame packing, Side-by-Side, Top-and-Bottom
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
24/7 operation
Yes
Operating conditions
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
Remote control
Backlit ProAV remote
Speaker count
2
Watts per speaker
5W
In the box
AC power cord
Networking
Power
Power supply
100V ~ 240V, 50-60Hz
Power consumption (standby)
<0.5W
Power consumption (min)
328W
Power consumption (max)
444W
Weight and dimensions
Dimensions (W x D x H)
498 x 331 x 154
Gross weight
12.4 kg
Net weight
10.54 kg
