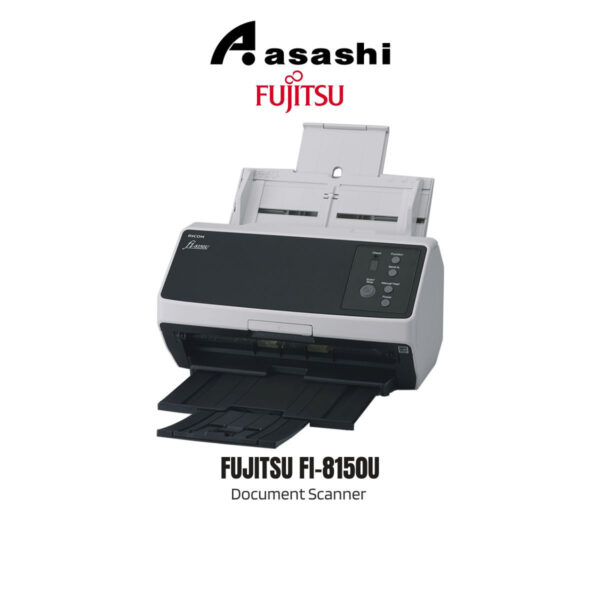

Ricoh / Fujitsu FI-8150U Document Scanner

Highlights

Supports a wide range of scan needs with state-of-art feeding technology

Scan faster without interruptions to help boost organizational efficiency.

Clear Image Capture

Optimized high-quality image data for business use

Keep documents in order with the Stacker Supporter

Scanned documents are easy to retrieve, reducing time spent on post-scan organization.

Improves workflow before and after scanning

Advanced software improves operators’ overall productivity, by reducing the number of operations before and after scanning.

Maximize Imaging Solutions

PaperStream Technology is designed for any level of user with a simple interface.



Details



Scans big volumes with “Automatic Separation Control”

“Paper Protection” function using Image Monitoring technology

Optimized high-quality image data with “Clear Image Capture”

Scans variety of documents including passports and booklets

Environmental Compliant: EPEAT Gold rated



Specification at A Glance

Scanning Speed: 50 ppm / 100 ipm

Resolution – Optical : 600 DPI

Simplex / Duplex : Duplex

ADF Capacity : 100 Sheets

Expected Daily Volume : 8,000 sheets

Multifeed Detection : Overlap detection

Weight : 4 kg (8.8 lb)

Dimension : 300 x 170 x 163 mm



Product Name : RICOH fi-8150U

Scanner Type

ADF (Automatic Document Feeder) / Manual Feed, Duplex

Scanning Speed^*1 (A4 Portrait)
(Color^*2/Grayscale^*2/Monochrome^*3)

– Simplex: 50 ppm (200/300 dpi)
– Duplex: 100 ipm (200/300 dpi)

Image Sensor Type

CIS x 2 (front x 1, back x 1)

Light Source

RGB LED x 2 (front x 1, back x 1)

Optical Resolution

600 dpi

Output Resolution^*4
(Color / Grayscale / Monochrome)

50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)^*5

Output Format

Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit

Background Colors

White / Black (selectable)

Document Size

– Maximum^*6: 215.9 x 355.6 mm (8.5 x 14 in.)
– Minimum: 48 x 50 mm (1.9 x 2 in.)
– Long Page Scanning: 6,096 mm (240 in.)

Paper Weight (Thickness)

– Paper: 20 to 465 g/m² (5.3 to 124 lb)^*7
– Booklet: Less than 7 mm (0.276 in.)^*8
– Plastic Card: 1.4 mm (0.055 in.) or less^*9

ADF Capacity^*10*11

100 sheets (A4 80 g/m² or Letter 20 lb)

Expected Daily Volume^*12

8,000 sheets

Multifeed Detection

Overlap detection (Ultrasonic sensor), Length detection

Paper Protection

Image Monitoring

Interface

USB: USB 3.2 Gen1x1 / USB 2.0 / USB 1.1

Power Requirements

AC 100V – 240V 50/60 Hz

Power Consumption

– Operating Mode: 21 W or less / 17 W (Eco mode)
– Sleep Mode: LAN: 2.0 W or less / USB: 1.4 W or less
– Auto Standby (Off) Mode: 0.2 W or less

Operating Environment

– Temperature: 5 to 35 °C (41 to 95 °F)
– Relative Humidity: 15 to 80% (Non-condensing)

Environmental Compliance

ENERGY STAR, RoHS

Dimensions (W x D x H)^*13

300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.)

Weight

4 kg (8.8 lb)

Supported Operating System

Windows 11^*14, Windows 10^*14, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS^*15, Linux (Ubuntu)^*15

Software / Drivers

PaperStream IP Driver (TWAIN/TWAIN x64/ISIS™), WIA Driver^*16, Image Scanner Driver for macOS (ICA)^*16*17, Image Scanner Driver for Linux (SANE)^*17*18, PaperStream Capture, PaperStream ClickScan^*17, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™^*17, Scanner Central Admin Server

Image Processing Functions

Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold

Included Items

ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
