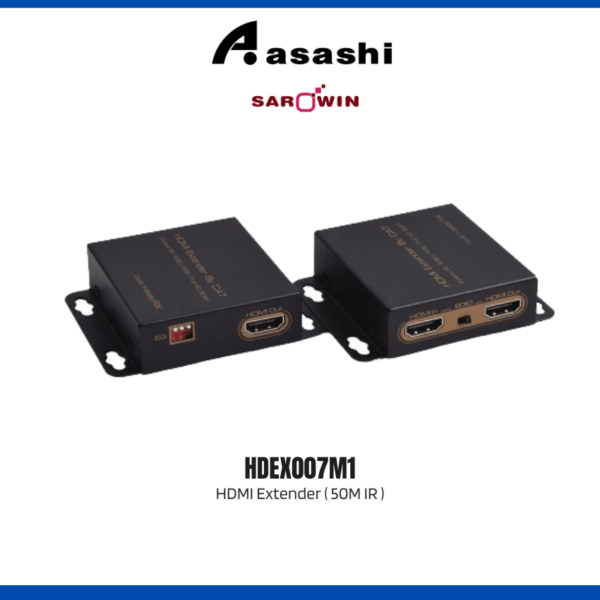

SAROWIN HDEX007M1 HDMI EXTENDER OVER RJ45 CAT5/CAT6 50 METER

HDEX007M1

• Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i • Use one cat5e/cat6 cable to transmit the HDMI Signal and IR signal, the max cat cable length can be up to 50m.
• Support Resolution up to 1080P/60HZ.
• Length of CAT-6 cable between Rx and TX Up to 50 meters
• LED indication: when power is supplied or device is working, LED relative to is light.

FEATURES :• Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• Use one cat5e/cat6 cable to transmit the HDMI Signal and IR signal, the max cat cable length can be up to 50m.
• Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• Support Resolution up to 1080P/60HZ.
• Support IR extender, it can do long distance control to the HD Source by using the IR received at the receiver.
• Support EDID Management and Control
• CAT connections according to IEEE-568B
• LED indication: when power is supplied or device is working, LED relative to is light.
• No loss of quality
• Installs in minutes
• Need DC5V/1A power supply

SPECIFICATIONS: • Length of CAT-6 cable between Rx and TX : Up to 50 meters
• HDMI Input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• HDMI Output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• Max bandwidth : 165MHz
• Max baud ratev : 4.95Gbps
• Input Video signal : 0.5~1.5Volts p-p
• Output DDC signal : 5Volts p-p (TT1L)
• Input/Output HDMI cable distance : ≤5m AWG26 HDMI standard cable
• Max working current : 600mA
• Power adapter format..Input: : AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A
• Operating Temperature range : -0 to +40℃
• Storage Temperature range : -20 to +60℃
• Operating Humidity range : 5 to 85%RH (No Condensation)
• Storage Humidity range : 5 to 95%RH (No Condensation)
• Dimension (L x W x H) : 67X61X21 (mm)
• Weight : 226g

* Warranty Period : 1 Year* Warranty Type : Local Supplier Warranty

* What’s in the box : 1 x Transmitter
1 x Receiver
2 x IR extender eye
1 x Power adapter
1 x User Manual
