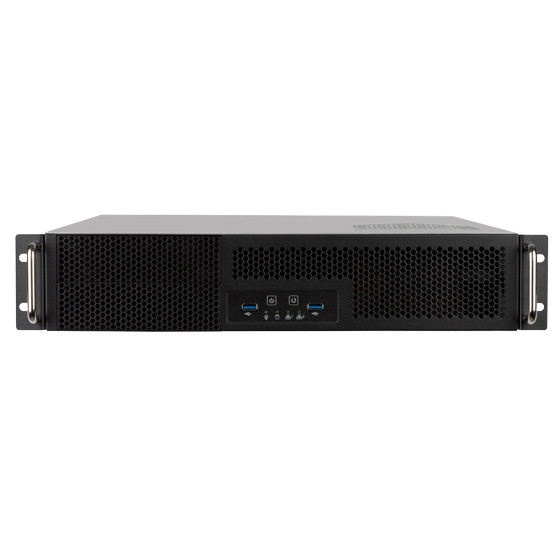

Name: Silverstone RM23-502 2U dual 5.25" drive bay ATX rackmount industrial storage server chassis with USB 3.1 Gen1 interface - A-sashi Technology
SKU: SST-RM23-502
Price: 690.00 MYR
Availability: OutOfStock

Silverstone RM23-502 2U dual 5.25″ drive bay ATX rackmount industrial storage server chassis with USB 3.1 Gen1 interface

👁 Currently 31 people are viewing this product.

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

Supports ATX power supplies of up to 180mm depth
Supports 1 x 2.5" SSD and up to 5 x 3.5" HDD
5Gbps USB 3.1 Gen1 interface (downward compatible with USB 2.0 & USB 1.1)
Dual 5.25" expansion bay brings flexibility in installing 5.25" devices
Built-in fan bracket which supports up to three 80mm x 38mm fans
Supports up to ATX (12" x 9.6") motherboard
Supports 7 low profile expansion slots
Reserved mounting holes for sliding rails which can be easily installed. Can be used with RMS03-26 rail (rail slide sold separately)

RM23-502

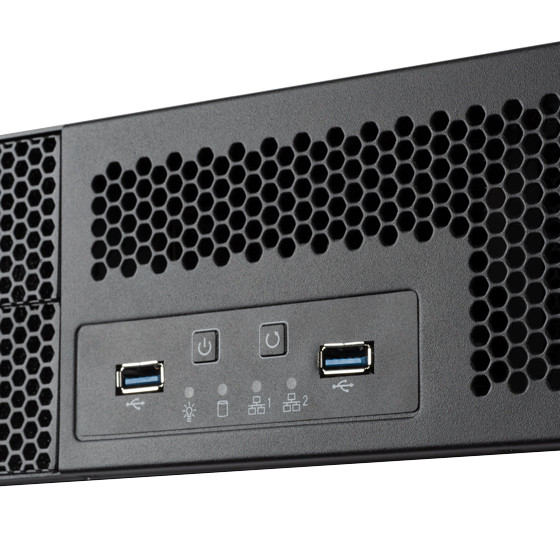

5Gbps USB 3.1 Gen1 interface (downward compatible with USB 2.0 & USB 1.1)

RM23-502

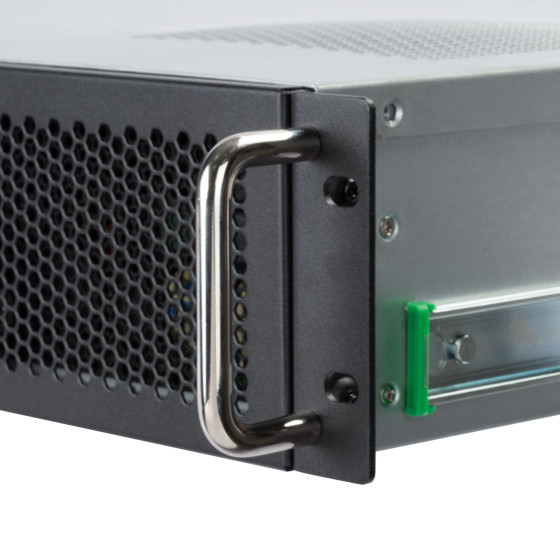

Auto lock handle for convenient fixation of chassis into rack cabinet

RM23-502

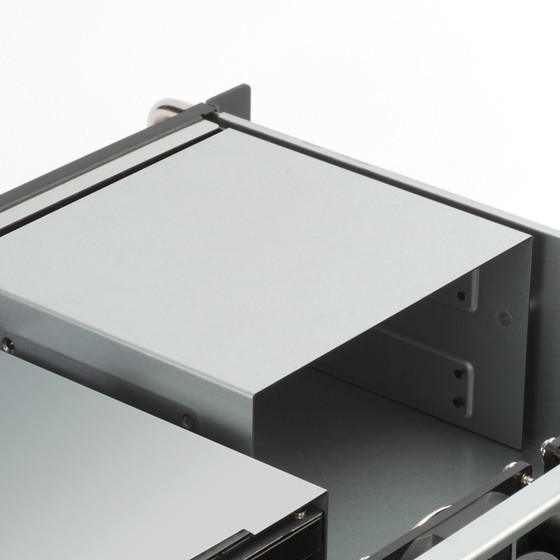

Dual 5.25" expansion bay brings flexibility in installing 5.25" devices

RM23-502

Supports 1 x 2.5" SSD

RM23-502

Up to 5 x 3.5" HDD

RM23-502

Supports ATX power supplies of up to 180mm depth

RM23-502

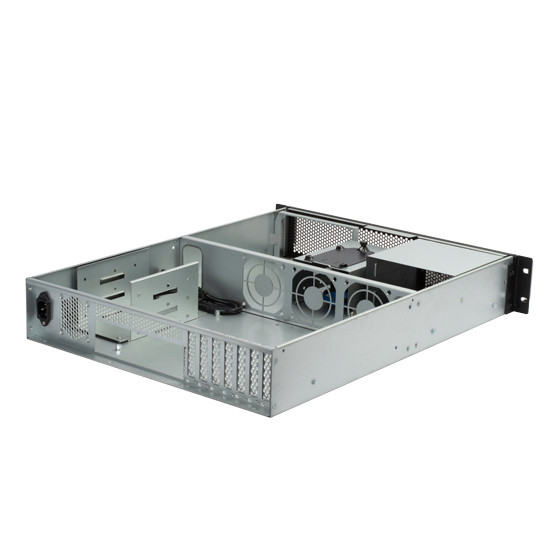

Built-in fan bracket which supports up to three 80mm x 38mm fans

RM23-502

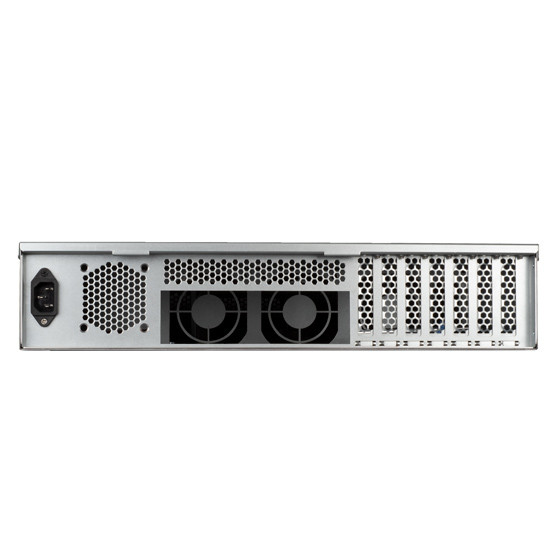

Supports 7 low profile expansion slots

RM23-502

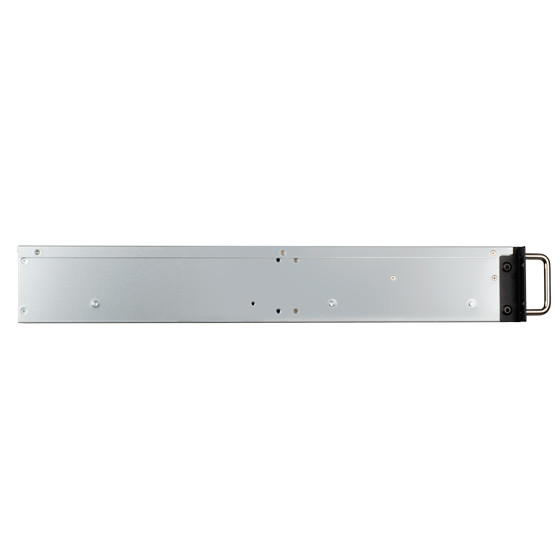

Reserved mounting holes for sliding rails which can be easily installed. Can be used with RMS03-26 rail (rail slide sold separately)

Product Specifications

Model No.

SST-RM23-502

Chassis form factor

Motherboard

ATX (12" x 9.6"), Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")

Main metal thickness

1mm

Drive Support

External

5.25" x 2

Internal

3.5" x 5
2.5" x 1

Cooling system

Front

80mm x 3

Rear

60mm x 1

Limitation of CPU cooler

65mm

Expansion Slot

Low profile x 7

Power Supply

Standard PS2 (ATX), supports up to 180mm long

Front I/O Port

USB 3.1 Gen 1 Type-A x 2 *

Front buttons

Power On / Off, system reset

LED Indicators

Power status x 1

HDD activity x 1

LAN activity x 2

Dimension

430mm (W) x 88.5mm (H) x 580mm (D), 22.07 Liters

Net Weight

6.8 kg

* RM23-502’s USB internal cable is 800mm long, so if you are connecting an external enclosure to the USB 3.1 port, we recommend using it with shorter cables to prevent performance loss.
